Guangzhou Amittari Instruments Co., Ltd.
China Manufacturer with main products: Coating Thickness Gauge, Ultrasonic Thickness Gauge, Hardness Tester, Surface Roughness Tester, Vibration Meter, Glossmeter, Moisture Meter,... |

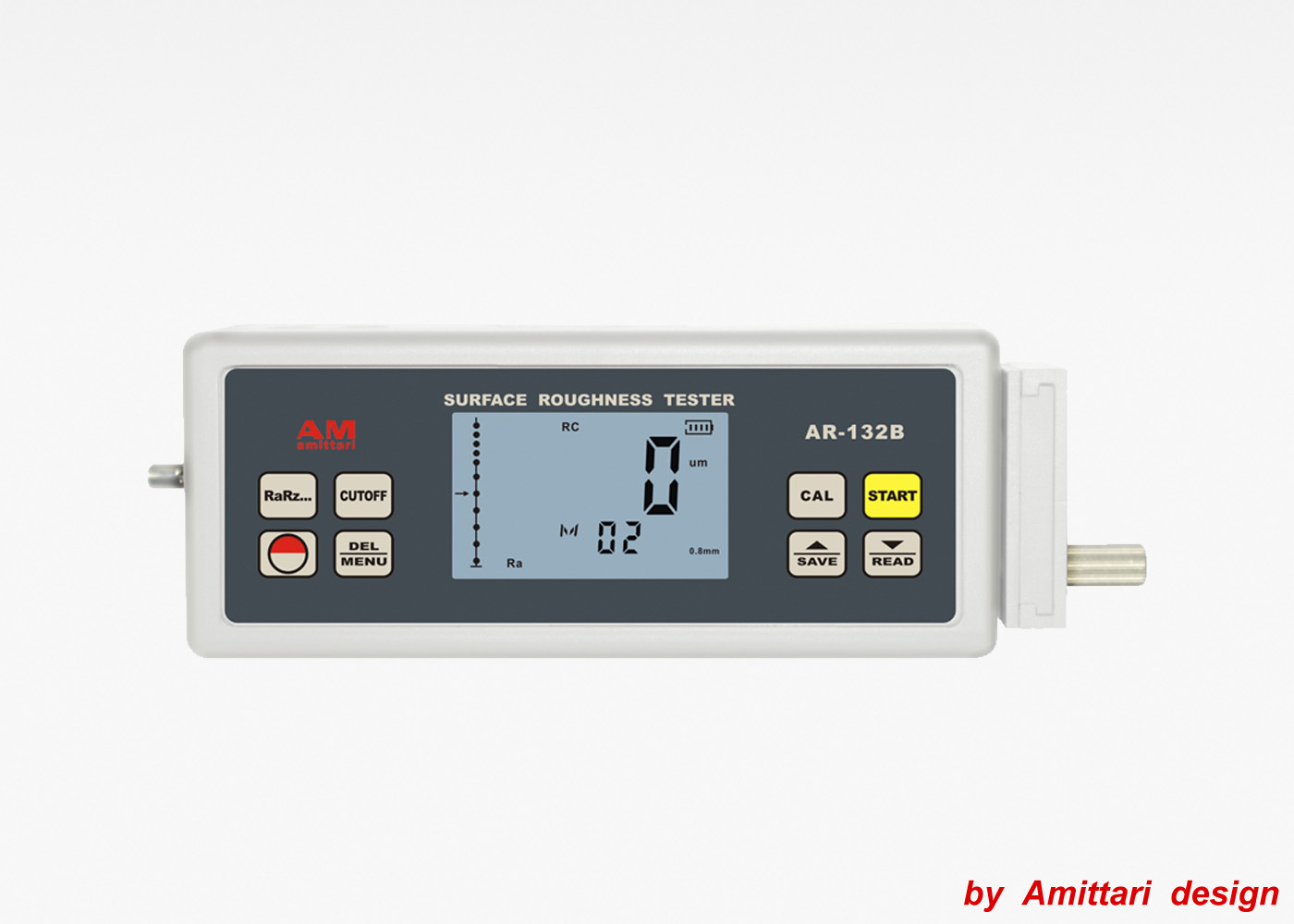

Surface Roughness Tester AR-132B
| FOB Price: | 500.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union, Other, paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Portable platstic case |
Quick Details
- Model Number: r AR-132B
- Brand Name: AM
- Fluctuation of display value: Not more than 6%
Specifications
Product Description
The Surface Roughness Tester is widely used in production site to measure surface roughness of various machinery-processed parts, calculate correspondingparameters according to selected measuring conditions and clearly display all measurement parameters.
Product Feature
* Be compatible with four standards of ISO, DIN, ANSI and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe which results in change of inductive amount of induction coils so as to generate analogue signal, which is in proportion to the surface roughness at output end of phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.
* Multiple parameter measurement: Ra, Rz, Rq, Rt.
* Highly sophisticated inductance sensor.
* Four wave filtering methods : RC, PC-RC, GAUSS and D-P.
* Built-in lithium ion rechargeable battery and control circuit with high capacity.
* Small in size, light in weight and easy to use.
*Manual or automatic shut down.
* Can memorize 7 groups of measurement results and measuring conditions for later use or download to PC.
* Metric /Imperial Conversion.
* Use USB data output with connection PC.
* Provide Bluetooth data output choice.
Product Parameters
|
Measuring Range |
Ra, Rq: 0.005~16.00 um / 0.020~629.9 uinch |
|
|
Rz, Rt: 0.020~160.0 um / 0.078~6299 uinch |
||
| Accuracy | Not more than ±10% | |
| Fluctuation of display value | Not more than 6% | |
| Resolution |
0.001μm, 0.01μm, 0.1μm |
|
| Probe |
Radius |
5μm |
|
Material |
Diamond | |
|
Measurement Force |
4mN(0.4gf) | |
|
Angle |
90° |
|
|
Vertical Radius |
48mm |
|
|
Maximum Driving Stroke |
17.5mm/0.7inch |
|
|
Cutoff Length |
0.25mm, 0.8mm, 2.5mm |
|
|
Driving Speed |
Measuring |
Sampling Length: 0.25mm Vt: 0.135mm/s |
|
Sampling Length: 0.8mm Vt: 0.5mm/s |
||
|
Sampling Length: 2.5mm Vt: 1mm/s |
||
|
Returning |
Vt=1mm/s |
|
| Profile digital filter | Filtered Profile | RC, PC-RC, GAUSS |
| Non-Filtered Profile | D-P | |
| Evaluation length |
1~5L optional |
|
| Data Memorize | 7 Groups | |
| Power Supply |
Built-in rechargeable Li-ion battery |
|
| Size |
140x52x48 mm |
|
| Weight |
420 g (Not including batteries) |
|
Product Accessories
|
Standard Accessories |
Main Unit |
|
Small Screwdriver |
|
|
Standard Boilerplate |
|
|
Standard Sensors, |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories |
USB data output |
|
RS-232 data output |
|
|
Bluetooth? data output |
