Jinan Maidun CNC Equipment Co., Ltd.
China Manufacturer with main products: Laser Cutting Machine, Laser Engraving Machine, CNC Router, Laser Marking Machine, Auto Feeding Laser Cutting Machine |

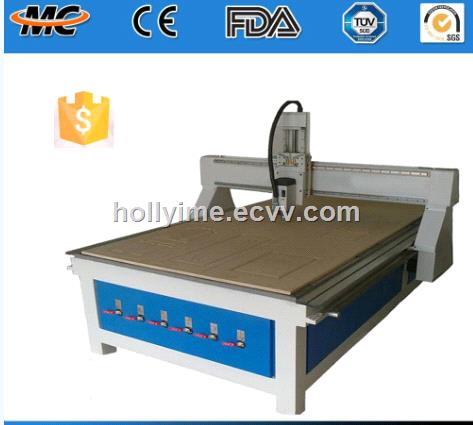

China hobby high quality wood cnc router MC1325
| FOB Price: | 5,000.00 - 15,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | be wrapped with protective film and put into standard export case. So it can be delivered safely. |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 2years
- Certification: CE ISO9001 SGS
- Weight: 300KG
- Dimension(L*W*H): 1300*2500*200mm
- Power(W): 3KW
- Voltage: 220V
- Model Number: 1325
- Brand Name: MC
- CNC or Not: CNC
- Condition: New
- working zone: 1300*2500*200mm
- drive mode:: servo motor
- control system: NC studio system(DSP system with handle)
- cnc router Engraving Speed: 30000 mm/min
- table size(W*L): 1350*2700mm
- Resolution: <0.001mm
- Max. Working speed: 30,000mm/min
- Axis Drive System (X Y Z): Taiwan made black helical Rack and pinion
Specifications
China hobby high quality wood cnc router MC1325
Technical Parameter
|
Model |
MYC 1325 |
|
Engraving area |
1300*2500*200mm |
|
Working Form |
Full-automatic |
|
Spindle Power |
3kw/4.5kw/6kw aircooling/watercooling 24000rpm |
|
Spindle Rotate(rpm) |
6000~24000 |
|
Motor Driver |
servo motor |
|
Tool Diameter(mm) |
?3.175,?4,?6, ?12.7mm |
|
Machine Structure |
Industry square tube structure |
|
Transmission System |
Taiwan TBI ball screw or high accuracy gear rack |
|
X,Y,Z Rail |
Taiwan HIWIN square rail |
|
Mechanical Accuracy |
<0.03/300mm |
|
Engraving Speed(mm/min) |
10000~15000mm/min |
|
Feeding Speed |
manual |
|
Data Transmission |
USB or PC connect |
|
Support Format |
G code or HPGL |
|
Working Voltage |
AC220V/50Hz or 380V/50Hz |
|
Support Format |
G Code or HPGL |
|
Range of Application |
Woodworking relief engrave ,Cutting , Hollow |
|
|
|
Machine Features
1.The frames is welded by thick-walled rectangular steel and tempered at high temperature
2.No deformation,high rigidity,with over 3 tons of load-bearing frame
3.Taiwan imported rails and sliders,HIWIN,high precision,low noise,durable.
4.Transmission parts are imported rack with high precision and speed.
5.The machine cable and Electrical adopts international famous brand,which makes the machine works in steady and high efficient condition.
6.Unique domestic water circulation system,energy saving and environment protection.
7.Newest design of triaxial enclosed totally,dustproof,waterproof.
Application
Natural marble, granite, artificial stone, tombstones, milestones, ceramic tiles, glasses, and many other materials, such as wood, acrylic, plastic, dual color board, etc.
1.door carvings 2. interior and exterior decorations 3. wood panels 4. sign boards
5. wooden frames 6. moldings 7. musical instruments 8. Furniture
Detailed Images
Samples pictures
Our Services
1)Guarantee for 12 months except comsumable parts .Extra fee is paid if out of date. Any damage to the machine caused by improper use will be charged.
2)when receiving the your money, we will prepare machine for you,it will spend 2-3days, to get the shipping pictures for you.
3)24-hour technical support Internet or by Telephone, free instructions and Problem solving.
4)Free installation and fully test before sending and free training for operators
Packaging & Shipping
1. Packing wooden case is after fumigation treatment. Needn't timber inspection,saving shipping time.
2.All the spare parts of the machine were covered by some soft materials,mainly
Avoiding all damages that could happen in the delivery process.Then we'll covered plastic wrap out it tightly,make sure intact of the covered soft materials,also avoiding Waterproof and rust proof.
3.The outmost is wooden case with fixed formwork.
4.The bottom of the wooden case has firm iron jack,convenient to Handling and transport.
We offer
?Sea Transportation
?Land Transportation
?Air Transportation
Our company:
Our company is well-known manufacturer of laser machines in China,located in Jinan city that
is famous for its fountains. We continually devote to developing, manufacturing and selling of laser engraving machine, laser cutting machine machine, cloth laser cutting,laser marking machine.Advertising laser engraving machine, woodworking laser machine, stone laser machine,
glass laser machine,etc.
Guarantee and after-sale service:
1.Optional long lifetime laser tube: 1500-10,000 hours.
2. 24 hours technical support by e-mail, calling or door-to-door service
3. English software, user manual and detailed instalation&training Videos DVD
4. International quality certificate:CE,FDA,SGS,ISO9001
5. professional laser machine supplier with 10 years experiences
Please contact us if you are interested in our machine. We will try our best to serve you and you will get the best reliable products in reasonable price. Please contact us if you are interested in our machine. We will try our best to serve you and you will get the best reliable products in reasonable price.
