Carbon graphite round and graphite block

FOB Price:	5.00 - 13.50 USD/Kilogram
Supply Ability:	100,000 Kilogram/Kilograms per Month
Shipping:	15-30days after received your payment
Payment Terms:	L/C, T/T, Western Union, Other, paypal

In Stock

Inquiry Now

Related products from verified members

Graphite Felt

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia
Place of Origin:	Henan in China
Packaging Details:	Standard export wooden package

Quick Details

Chemical Composition: c
Dimensions: 10-1000mm
Application: continuous casting mold and other
Model Number: BFMC-block
Brand Name: BFMC

Specifications

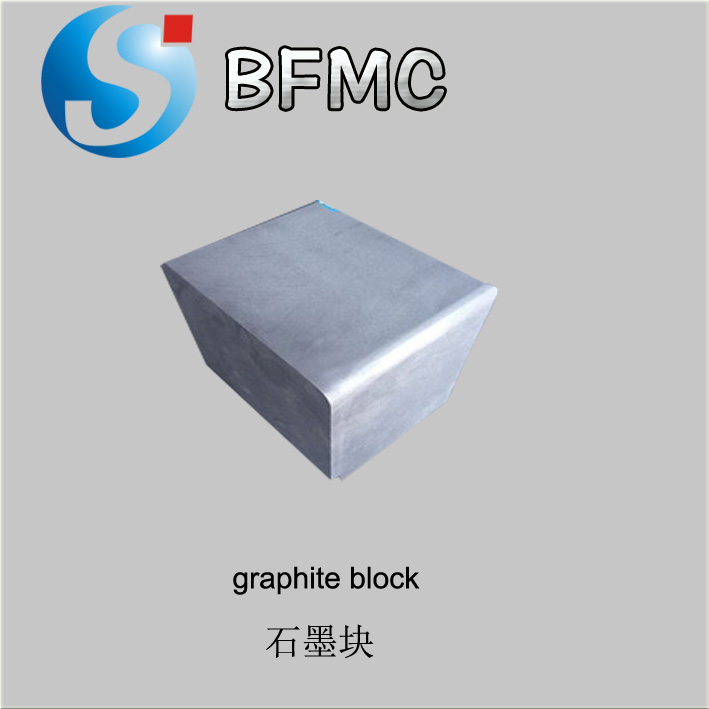

Graphite round and graphite block

Applications:

1.Molds, chutes, sleeves, sheathes, linings, etc. in continuous casting systems for making shaped steel, cast iron, copper, aluminum.

2. Sintering molds for cemented carbides and diamond tools.

3.Sintering molds for electronic components.

4.Electrodes for EDM.

5.Heaters, heat shields, crucibles, boats in some industrial furnaces (such as furnaces for pulling monocrystalline silicon or optical fibers).

6. Bearings and seals in pumps, turbines and motors.and so on.

Properties:

Fine grain

Homogeneous structure

High density

Excellent thermal conductivity

High mechanical strength

Proper electrical conductivity

Minimum wettability to molten metals

Typical size:

Blocks

Length x Width x Thickness (mm)

200x200x70, 250x130x100, 300x150x100, 280x140x110, 400x120x120, 300x200x120, 780x210x120, 330x260x120, 650x200x135, 650x210x135, 380x290x140, 500x150x150, 350x300x150, 670x300x150, 400x170x160, 550x260x160, 490x300x180, 600x400x200, 400x400x400

Rounds

Diameter (mm): 60, 100, 125, 135, 150, 200, 250, 300, 330, 400, 455

Thickness (mm): 100, 135, 180, 220, 250, 300, 450

* Other dimensions are available on request.

Specifications:

Physical and chemical index

specification	type	electrical resistivity	volume density	rupture strength	compressive strength	Hard degree HSD	ash content
Die-pressed 0.043mm	-4	8.5	1.80	38	65	42	700PPM
Die-pressed	-5	8.5	1.85	46	85	48	700PPM
Isostatic graphite	-7	11	1.85	56	118	65	500PPM
Isostatic graphite	-8	11	1.92	60	135	70	500PPM
