good performance 8x4 336hp to 375hp 41cbm SHACMAN F3000 dry bulk cement powder truck for hot sale
Related products from verified members
-
Price:35,000.00-45,000.00 USD/SetMin. Order:1 Set -
Price:35,000.00-38,000.00 USD/UnitMin. Order:1 Unit -
Price:16,000.00-17,000.00 USD/UnitMin. Order:1 Unit
| Export Markets: | Africa, Mid East, Eastern Asia |
|---|
Quick Details
- Gross Vehicle Weight: 31000
Specifications

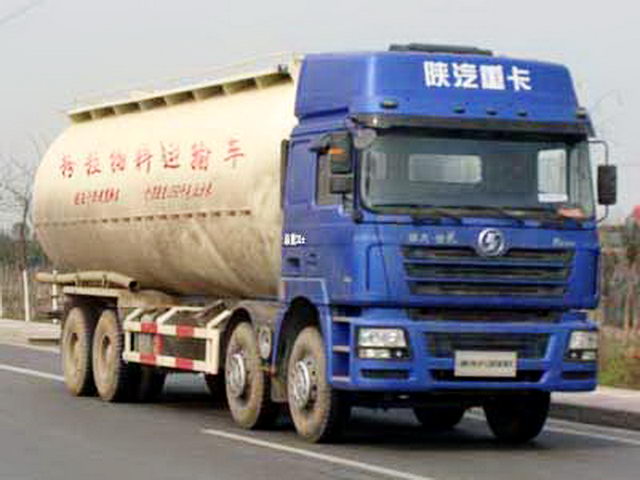

good performance 8x4 336hp to 375hp 41cbm SHACMAN F3000 dry bulk cement powder truck for hot sale
ChengLi bulk cement tank truck can be used for delivery and discharge for bulk cement powder, pulverized lime and other powder with diameter less than 0.1mm.
The truck consist of truck chassis, air compressor, fluidized bed, air inlet pipeline, discharge pipe and others. The air compressor make the powder inside fluidized. The powder will discharge through the discharge butterfly bumper when the pressure reaches the requested level.
The discharge speed is 1-1.3ton/min when the pressure is 0.2Mpa, the residual Rate is 3‰ . The max discharge height can be more than 25m.
The outside shape is tank of round in shape, the tank material is good quality carbon steel produced by WISCO. The tank inside is air bag type vulcanization bed, the structure is simple and with easy maintenance. The air compressor is optional with 7.3, 8, 10m3 specification. The power is transferred by shaft directly.
Product Parameter:
|
Main Parameter |
|||
|
Name |
SHACMAN LNG F3000 8*4 Bulk Cement Carrier |
||
|
Model |
SX5315GFLNT456 |
||
|
Brand |
SHACMAN |
||
|
Storage |
Charcoal Dust |
||
|
Total Weight |
Kg |
31000 |
|
|
Rated Payload Weight |
15970/15905 |
||
|
Curb Weight |
14900 |
||
|
Effective Tanker Volume |
M3 |
41 |
|
|
Density |
Kg/M3 |
400 |
|
|
Overall Dimension(LxWxH) |
|
MM |
12000×2500×3930 |
|
Tanker Dimension(LxWxH) |
MM |
9600(length)*2500(diameter) |
|
|
Approach/Departure Angle |
° |
18/12 |
|
|
Front/Rear Overhang |
MM |
1525/2700 |
|
|
Wheel Base |
1800+4500+1350 |
||
|
Axles Number |
Pcs |
4 |
|
|
Allowable People in Cab |
People |
2,3 |
|
|
Axles Load |
Kg |
6500/6500/18000 |
|
|
Max Speed |
Km/H |
99 |
|
|
Chassis Information |
|||
|
Chassis Model |
SX1315NT456 |
||
|
Brand |
SHACMAN |
||
|
Dimension(LxWxH) |
MM |
9360×2462×2880,3230 |
|
|
Tire Number |
Pcs |
12 |
|
|
Approach/Departure Angle |
° |
18/12 |
|
|
Steel Plate Spring Number |
Pcs |
14/13,14/13/12 |
|
|
Front Wheel Distance |
MM |
1940 |
|
|
Rear Wheel Distance |
1860/1860 |
||
|
Tire Type |
11.00-20,11.00R20,12.00-20,12.00R20 |
||
|
Engine Information |
|||
|
Type |
WP12.336N/WP12.375N/WP10.336/WP10.357/WP10.340/WP10.340E32/WP10.380E32 |
||
|
Horsepower |
Hp |
247/276/247/276/250/280 |
|
|
Output Volume |
ML |
11596/11596/9726/9726/9726/9726 |
|
|
Fuel |
Diesel |
||
|
Emission Standard |
Euro III |
||
|
Equipment |
Raw Meterial: 5mm carbon steel. Discharging Hose, 4 inch Discharging Hose Length, 6,000 mm Discharging capacity≥1,200 Kg/min Working pressure,0.2 Mpa. MAX Horizontal Discharging Distance, 5,000 mm MAX. Vertical Discharging Distance, 25,000 mm. Air Compressor , WB-10/2, Made in China,8M3 |
||
