Ningbo Vance Lighting Co., Ltd.

China Manufacturer with main products: LED Wall Pack, LED Canopy Light, LED Area Light, HPS Grow Light, LED High Bay, LED Troffer, LED Linear Strip, LED Floodlight

Home >Products Catalog > LED Wall Pack > 15W Mini LED Wall Pack ETL, cETL,Energy Star Listed

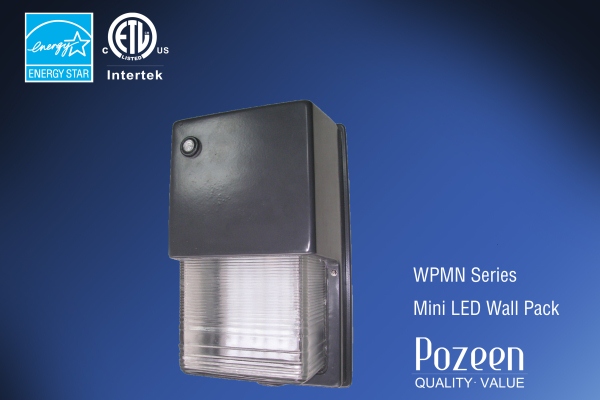

15W Mini LED Wall Pack ETL, cETL,Energy Star Listed

FOB Price:	33.00 - 38.00 USD/Piece
Supply Ability:	5,000 Piece/Pieces per Month
Shipping:	EXW Or FOB Ningbo
Payment Terms:	L/C, T/T, Other, Pay Pal

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America
Place of Origin:	Zhejiang in China
Packaging Details:	4 pcs per Carton

Quick Details

Item Type: Outdoor Wall Lights
Light Source: LED
Model Number: WPMN30H15
Certification: Energy Star,ETL
IP Rating: IP65
Lamp Body Material: Aluminum Alloy
Working Lifetime(Hour): 50000
Beam Angle(°): 170
Color Temperature(CCT): Cool White
CRI (Ra>): 80
Lamp Luminous Efficiency(lm/w): 90
Lamp Luminous Flux(lm): 1350
Lamp Power(W): 15
Input Voltage(V): 120
LED Light Source: smd

Specifications

CONSTRUCTION & MATERIALS

Cast aluminum back plate

Gasketing between back plate and front cover prevents entry of water and contaminants

Injection-molded, one-piece, UV stabilized polycarbonate refractor

Integral secondary heat sink to optimize thermal transfer and maximize performance and life of LED

Polyester powder-coated finish, rust and corrosion proof; stabilized to extreme climate changes without cracking or peeling

MOUNTING AND WIRING
Surface mounting and wiring via the two convenient 3/4" knockouts
ENVIRONMENTAL SYSTEM
ETL, cETL listed for outdoor locations
ELECTRICAL SYSTEM
Integral high performance LED driver

Input voltage 120VAC, 50/60Hz

OPTICAL SYSTEM
High quality shatterproof glass refractor to project light to a wide space

High performance LEDs mounted on metal core board and integral aluminum heat sink

Color temperature: 5000K. Other color temperature available for special order, consult factory for lead time

LIGHTING CONTROL
Built-in photocell sensor

Model	WPMN30H150K	WPMN30H150K
PHYSICAL SPECIFICATIONS
Width	7.80 in	7.80 in
Depth	5.51 in	5.51 in
Height	12.87 in	12.87 in
Housing material	Aluminum + polycarbonate
Finish	Black
MOUNTING & WIRING
Mounting	Wall mount
ENVIRONMENTAL SPECIFICATIONS
Operating temp.	-22-158 F (-30¨C70 C)
Storage temp.	-40-176 F (-40¨C80 C)
Humidity range	20-95% RH, non-condensing
Ingress protection	ETL, cETL listed for wet locations
ELECTRICAL SPECIFICATIONS
Input voltage	120VAC 50/60Hz
Input wattage	15W	25W
Equivalent wattage	75W CFL	150W MH
Power factor	0.90 min.
THD	20% max.
OPTICAL SPECIFICATIONS
Luminous flux	1350lm	2250lm
Efficacy	90 LPW
CCT	5000K
Lens	Polycarbonate
LIGHTING CONTROL
Photocell	Built-in
Motion sensor	Optional
Dimming capacity	Optional
LONGEVITY & WARRANTY
L70 life	50,000 Hours
Warranty	5 Years
