Anhui Pandeng Industries Joint Stock Co., Ltd.
China Manufacturer with main products: Conveyor, Belt Conveyor, Conveyor Belt, Rubber Belt, Conveyor System, Flexible Coupling, Fluid Coupling, Conveyor Idler |

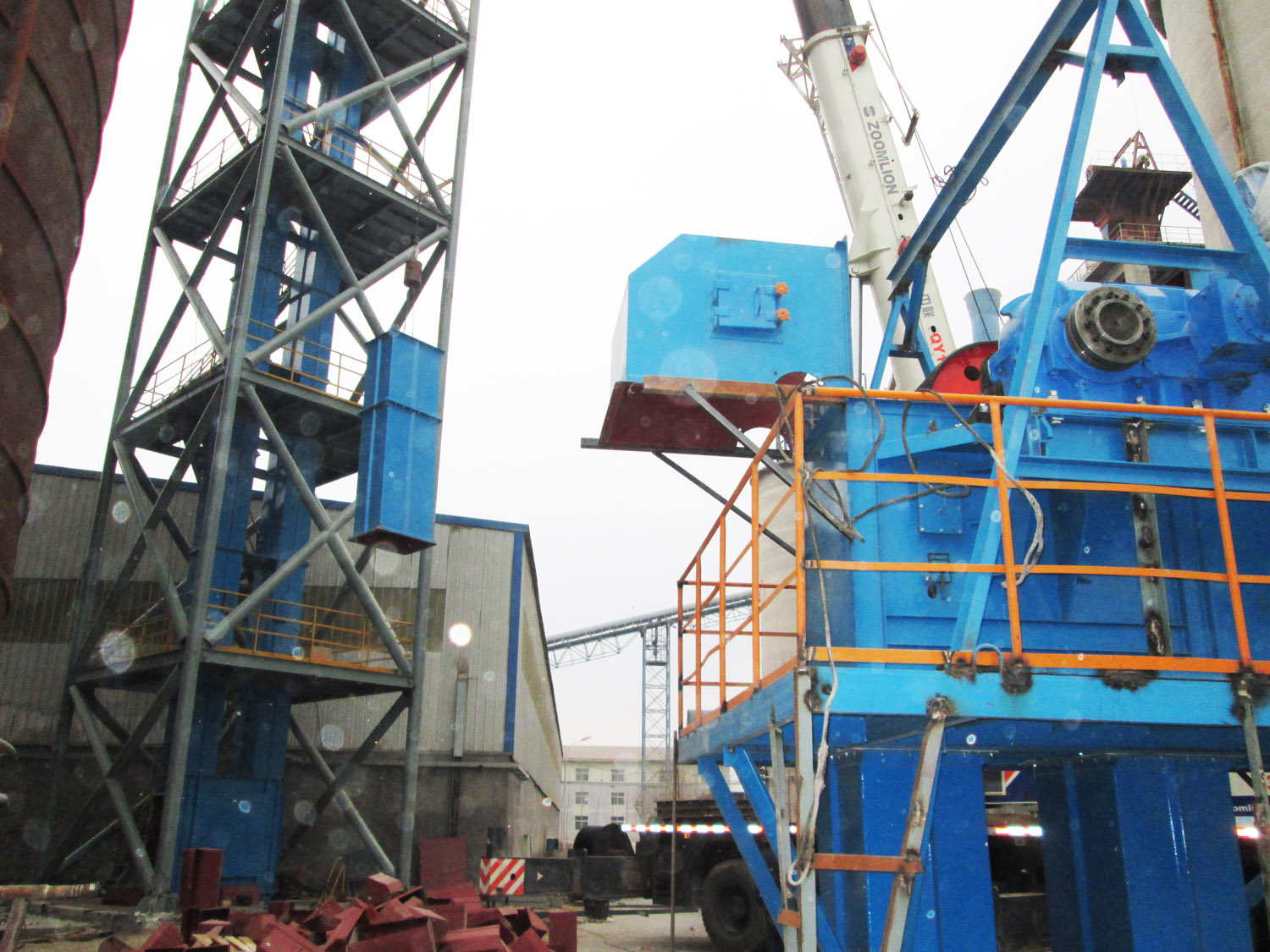

Bucket elevator conveyor for conveying cement,grains,coal, etc
| FOB Price: | 20,000.00 - 200,000.00 USD/Set |
|---|---|
| Supply Ability: | 100,000 Set/Sets per Year |
| Shipping: | By sea |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Anhui in China |
| Packaging Details: | bulk package |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: ISO9001:2008
- Voltage: 110v/220v
- Model Number: GTD400
- Brand Name: PANDENG
- Load Capacity: max.1543 m3/h
- Structure: bucket elevator
- Material Feature: Heat Resistant
- Material: Carbon steel
- Type: Bucket Conveyor
- Condition: New
- Kind: Rubber or China Type
- Conveying material: Lumpy&Powdery Material
Specifications
GTD and GTH type high-efficiency bucket elevator
I.Outline of the Product
After our TD and TH bucket elevators have gained wide application in various sectors, according to the demand of domestic broad
market and on the basis that the original advantages and advanced performance of TD and TH type elevators, we have developed and produced new generation GTD and GTH high-efficiency bucket elevator. It has two models—rubber belt type and ring chain type. Compared with conventional elevator, it has the advantages of high elevation height, fast
speed, large elevation capacity and low energy consumption, in recent years they have been widely used for vertical elevation of
various kinds of lumpy and powdery materials in such departments as of building materials, chemical engineering, mining, grains etc.
GTD type adopts steel cable rubber belt as the traction member and GTH type adopts dedicated high-strength ring chain as the traction member. Both models can be equipped with level indicator, off-track alarm and speed monitor.
II.Main technical parameters
|
Technical parameters of GTD type (belt type) |
||||||||||||
|
Specification (bucket width mm) |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
1400 |
1600 |
|
Conveying capacity Q (m3/h) |
34 |
43 |
63 |
106 |
158 |
220 |
340 |
500 |
788 |
1102 |
1234 |
1543 |
| Bucket volume V (L) |
2.6 |
4 |
6.3 |
10 |
16 |
25 |
39 |
65 |
102 |
158 |
177 |
252 |
|
Bucket pitch t (mm) |
260 |
300 |
325 |
360 |
410 |
460 |
520 |
580 |
650 |
720 |
720 |
820 |
|
Running speed (m/s) |
1.2 |
1.2 |
1.34 |
1.34 |
1.5 |
1.5 |
1.68 |
1.65 |
1.86 |
1.86 |
1.86 |
1.836 |
|
Max. elevation height H (m) |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
|
Technical parameters of GTH type (ring chain type) |
||||||||||||
|
Specification (bucket width mm) |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
1400 |
1600 |
|
Conveying capacity Q (m3/h) |
35 |
37 |
47 |
74 |
119 |
166 |
255 |
363 |
535 |
767 |
861 |
1134 |
|
Bucket volume V (L) |
2.6 |
4 |
6.3 |
10 |
16 |
25 |
39 |
65 |
102 |
158 |
177 |
252 |
|
Bucket pitch t (mm) |
300 |
300 |
384 |
384 |
406 |
522 |
546 |
648 |
756 |
756 |
756 |
882 |
|
Running speed (m/s) |
1.05 |
1.05 |
1.04 |
1.04 |
1.17 |
1.17 |
1.32 |
l.37 |
1.52 |
l.52 |
1.52 |
1.52 |
|
Max. elevation height H (m) |
50 |
44 |
50 |
50 |
50 |
45 |
50 |
50 |
50 |
40 |
35 |
40 |
The conveying capacity Q in the tables is calculated based on 75% of material filling factor; the max. elevation height H is
calculated based on 1 t/m3 of bulk density of material.
