2MP ambarella solution high quality road entry motorway parking lot exit ANPR IP LPR camera

Specifications

May your city safer and more secure with our LPR cameras in your Skynet projects!

Make the better world for you and for me.

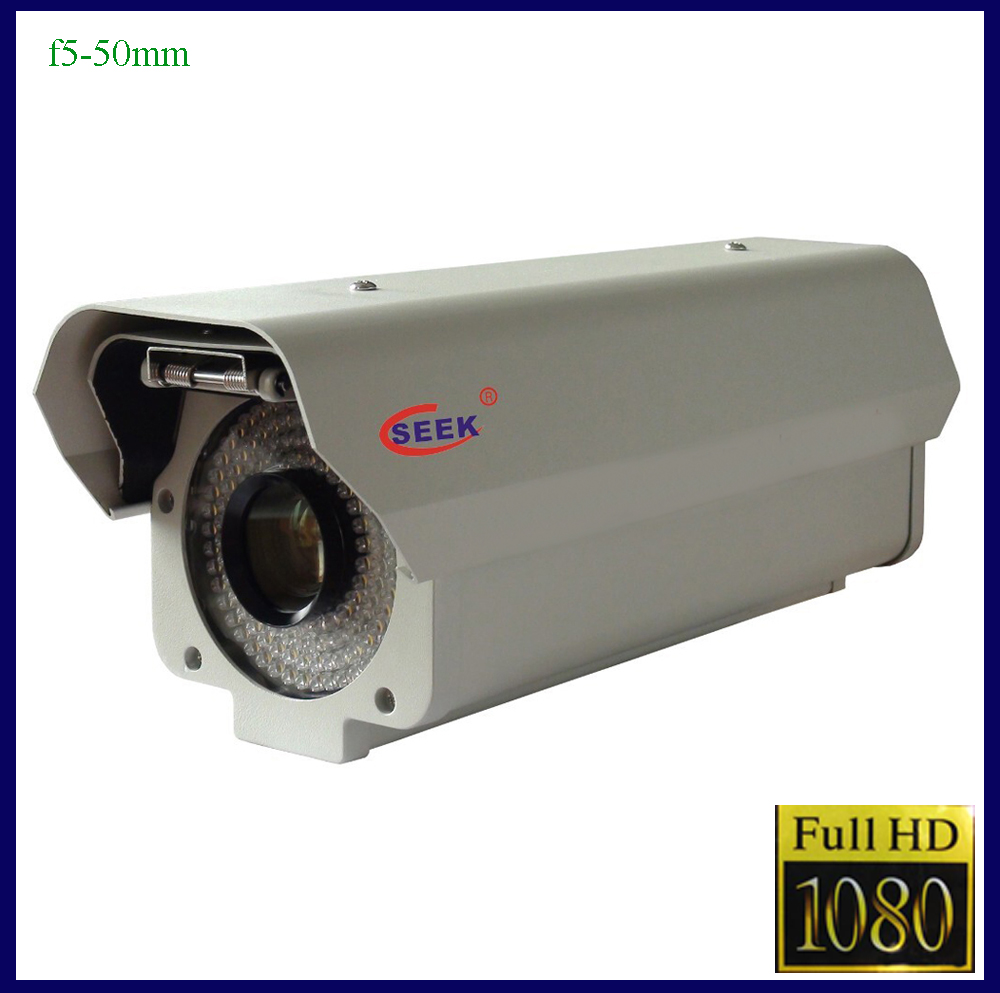

Item: 2MP Ambarella solution SONY Exmor sensor Road Safety car LPR ALPR automatic number plate recognition highway CCTV IP ANPR Camera

CSK-7220CN

Applicable in: freeway, highway,entrance/exit of community, school, hospital, industrial park, parking lot or garage, toll gate, gas station, urban roads and other Surveillance areas.

night vision (infra-red camera,captured in Korea)

Day vision:

Product Description

 The camera not only can see the license plates of vehicle and but also take care of the surveillance of surrounding environment.

Features:
1. Ambarella solution, known as high quality video and image.

2MP 1/2.8" SONY Exmor CMOS sensor, progressive scan , WDR, low illumination, high definition
2. Embedded intelligent algorithms for best viewing license plate day and night.
3. ONVIF protocol, GB28181 protocol, compatible with main NVR manufacturer, Hikvision, Dahua, etc.
4. With electronic shutter speed, WDR, AGC, 3D DNR.
5.HLC (highlight compression) function, Good anti-headlights night effect
6.Shutter speed: 1-3 lanes surveillance, auto , 30KM/H, 60KM/H, 90KM/H,120KM/H, 150KM/H,180KM/H,etc

for highway surveillance.
7.Easy setting: no need professionals, no need client software. BNC video output on control board for connection with a monitor.
8.With LED illuminators.
9. fixed lens: f=6mm/8mm/12/16 or 25mm  optional,  3MP lens .

   25mm lens is for max. 50M installation distance ( from number plate to camera).
10.LCD display: electronic shutter speed, HLC (highlight compression) value, WDR ON/OFF, AGC, 3D DNR,LED illuminator's value, occassion, input linkage and re-store, etc.
11. In unusual circumstances auto reset the system to ensure the normal operation. Automatic reconnection when network interrupt.
12. 172pcs IR LED illuminators, B/W image at night. Night vision distance 50M.

Luminance add+ / decrease, adjustable even in daytime or at night. It is very helpful to prevent too dark or too whitish plate numbers.

Auto shift from daytime setting mode to night setting mode.
14. The camera can face strong headlight and see the object clearly under headlights.
15. Built-in temperature controlling devices. Less than 45 degrees inner case, longer lifetime.
16. IP66, waterproof,weatherproof.  Anti-fog between lens and front glasses. Built-in heater, cooler. Double thick shield housing.
17. Double glasses in the front of camera. Avoid halo and light spot when LED illuminator is on.
18. support auto snapshot number plates when linkage input with inductive loops, radar,etc trigger.

snapshot JPEG images store in TF card (max.32G) and/or FTP server. (TF card excluded, can supply upon request).
Full HD 1080P video, D1 JPEG image resolution. Or customized image resolution.

19.linkage input: " ON" : the camera will be automatically at HLC mode at night when it has switch signal input (always on signal). The camera will not be HLC mode when there is no switch signal in 10 seconds. It is, car coming, HLC mode. Car passed by, normal surveillance.
Linkage input " OFF" , Highlight compression mode shall be controlled by photoresistor. Switch signal is always linkage with alarm linkage output.

20. Double color LED illuminators optional. Color image at day & night.

 21. with CMS software

Quick setting instruction on Control Board by a rocker switch shown below: Set parameters separately from Day mode to Night mode, and make sure to get clear plate numbers images day and night.
