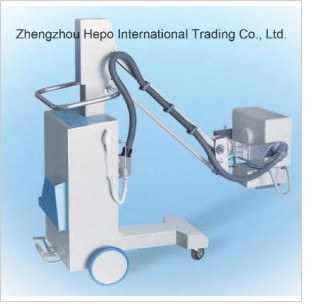

High Quality Medical Mobile X-ray Equipment

I. Parameters
General-purpose, mobile X-ray system, dedicated for radiography of standing, seated or recumbent patients as well as for patients in bed or on the operating table and as a standby emergency unit. High-frequency X-ray generator with the following output:
1. Generator output: 5.0 kW
2. KV range: 40 kV - 120 kV in 1kv steps
3. MA range: 25~100 mA
4. Exposure time: 4 films per min, less than 20 ms per film
5. X-ray tube:
Stationary anode tube with a focal spot of 1.5*1.5 mm
6. Collimator:
Bright field light beam collimator with 120 W halogen lamp and auto shut-off facility.
7. Power requirements: Single phase 220 V +/- 10% Voltage tolerance; 50 Hz power supply
8. Mobile stand: Light-weight, low height mobile and easily maneuverable stand.
9. The mobile radiographic unit also include a handheld control and a microwave wireless remote control for the 20-meter microwave remote Without the restriction of Barriers and directional, different from the infrared remote control. Grids reduce the fog line filters and raise the degree of scattering contrast.
10. The unit is provided with a line (power) cord of acceptable durability, quality, length and is secured with adequate strain reliefs
The unit include, power plugs that are sufficient for the maximum voltage and current of the unit.
11. The maximum distance from the ground: ≥ 17500mm, and minimum distance from the ground: ≤ 500mm, rotating around the horizontal axis 180 ° , rotation around the vertical: ± 90 ° , The collimator can rotate 180 ° ,
II. Standard Configuration
1, Modular high-frequency and high-voltage X-ray generator; High-frequency inverter power. (5.0KW, 120KV, 100mA, 40KHZ) one set
2, Innovative mobile X-ray photography Main frame one set
3, Mobile X-ray photography control system one set
4, Symmetric Adjustable beam limiter with light one set
5, Remote controller ( Hand hold controller and Wireless Microwave control, the distance is 20 meters ) one set
6.12" X 15" Image Intensify, Cassette, Grid one set
7, General spare parts Several

2) Options: PLX152 Table for Mobile X ray Equipment and Upright Bucky Stand
A. PLX152 Table ( Special for High Frequency Mobile X ray machine )

The size of PLX152 is 2000mm× 700mm× 500mm, cassette movement range is 1680mm. Low bed to facilitate the patient up and down, Longitudinal center of the bed frame with the cassette center line are consistent. To make the center of symmetry when photograph, and the movement range of cassette get larger And have manual brakes convenient location, bed body can 360 ° Moving flexible
B. Upright Bucky Stand

The height: 1768 mm
Movement range of up and down: 470mm~1468 mm
Grid Density: 103L/INCH
Grid Ratio: 10: 1
Focus Distance: 150cm,
Features: With Stationary Filter line, 18" X18" Can take maximum 17"X17" X ray film
III. Usage
This is a modular X-ray photography medical diagnosis equipment, which is available for wards, emergency, operating room, ICU and so on. An mobile diagnosis equipment for photography of body locutions such as head, arms, thoracic cavity and waist abdomen.
IV. Features
Lovely appearance, and easy to move and operate; Possess all the features of all the mobile X-ray photography machines.
Rocker arm apply the patent technology of single-arm support and self-balanced. This technology makes the appearance and operation much more beautiful and convenient.
Apply the design of expansion gate design, the machine will automatically locked when hand-off which makes the movement much safer.
