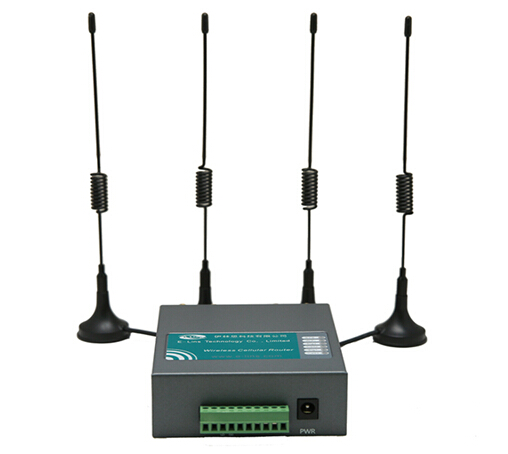

2015 hot sale H750 3G Hspa+ wireless industrial cellular router

Specifications

>> Wireless

Compatible Mobile Networks UMTS WCDMA (HSUPA/HSDPA/HSPA/HSPA+/DC-HSPA+)
GSM EDGE/GPRS
CDMA1x, CDMA2000 EVDO Rev 0/Rev A/Rev B
4G LTE (FDD)

Cellular Frequency
UMTS/HSPA/HSUPA/HSPA/HSPA+/DC-HSPA+ (WCDMA/FDD): 900/2100Mhz or 850/1900/2100 MHz or 850/900/1900/2100Mhz/AWS; Quad-band EGSM 850/900/1800/1900Mhz;

4G FDD LTE:
Band 1--2100Mhz
Band 2--1900Mhz
Band 3--1800Mhz
Band 4-- AWS(1700/2100Mhz)
Band 5--850Mhz
Band 7--2600MHz
Band 8--900Mhz
Band 12--700Mhz
Band 13--700(B13)Mhz
Band 17--700(B17)/AWS
Band 19 800Mhz
Band 20--DD800Mhz
Band 21
Band 25 1900Mhz G Block
Other FDD LTE band(some bands are not listed)a€|

Bandwidth
4G LTE: Max. 100/150Mbps downlink, 50Mbps uplink

DC-HSPA+: Downlink 42Mbps, Uplink 5.76Mbps;
HSPA+(H): Downlink 21Mbps, Uplink 5.76Mbps;
HSPA+(L): Downlink 14.4Mbps, Uplink 5.76Mbps;
HSUPA: Downlink 7.2Mbps, Uplink 5.76Mbps;
HSDPA: Downlink 7.2 Mbps, Uplink 384k bps;
WCDMA/UMTS: Downlink/Uplink 384 kbps;

EDGE: Downlink 236,8 kbps, Uplink 118 kbps;
GPRS: Downlink 85.6 kbps, Uplink 42.8 kbps;

CDMA1x: Downlink/Uplink 153.6kbps;
CDMA EVDO:
Rev B: 14.7Mbps downlink, 5.4Mbps uplink
Rev A: 3.1Mbps downlink, 2.4Mbps uplink
Rev O: 2.4Mbps downlink, 153.6kbps uplink

>> Main

USB Host: Yes for future use
GPS (Optional): GPS feature
DTU (Optional):With DTU feature (Serial to Cellular Gateway feature, RS232 or RS485 port option)
VPN: PPTP, IPSec (PPTP client, PPTP server, IPSec client, IPsec server)
GPS: Optional (U-Blox NEO-6M chipset module)
VLAN: Support multi-LAN IP address, support two IP address

Wi-Fi: Optional, 802.11b/g or 802.11b/g/n; 54Mbps default. 150Mbps and 300Mbps optional.
Frequency from 2.4GHz to 2.483GHz, Access Points, Routers and Gateway Server Applications

Fail Over Redundancy (network Backup feature):
Auto-dial feature, keep alive link;
Built-in watch dog;
Cellular (2G/3G/4G) and RJ45 WAN (xDSL, DHCP, Fixed IP) line redundancy;

>> Protocol

Protocol support:
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, WPS, DMZ, Syslog, NAT, xDSL, NTP, QoS, SNMP, RIP, support firmware update locally or remotely

>> Security

support 64/128 bits WEP, 802.1x, WPA, and WPA2
support WDS
support WPA1/2 PSK
support WPA1/2 802.1x
support EAP  TLS, TTLS, LEAP, PEAP
TKIP, AES encryption
support access with user name & password.
support access control base WAN/LAN interface
support access control base source IP address
defense DOS attack, support SYN flooding, IP surfing, ping of Death, fragile, teardrop, land etc.
support PAP & CHAP
support IP filtering

Advanced Firewall Features:
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
VPN Pass-through

Media Access Control: CSMA/CA with ACK

Certifications: REDIUS Client

>> Interface

LAN/WAN:
3X 10/100M LAN port (RJ45 interface)
1X 10/100M WAN port (RJ45 interface)

Antenna:
4 X antenna (SMA female interface, detachable):
Wi-Fi, 2 Cellular, GPS;
Cellular support MIMO option;
WiFi support MIMO option;

Led: SYS*1, VPN*1, Cell1*1, Cell1*2, WAN*1, LAN (10/100M)*3, WiFi*1, CHR(Internal battery charging)*1, GPS*1

Button: Reset

Serial port: DB9 for RS232 or RS485

Configuration Interface:
Web/CLI, support remote management

UIM/SIM Card Slot: Support 1.8V/3V UIM/SIM cards, two sim card slot

DC Jack:
2.5mm DC jack * 1

>> Power

Power supply:
DC7V-27V , typical DC12V1A, 12v CAR USE

Power consumption:
Current:
Idle: 30mA@12VDC
Max: 400mA@12VDC
Average:200mA@12VDC

>> Software

Device Management:
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers,Chome,Opera,Sarafi)

Minimum System Requirements:
Mobile Internet Access Subscription and Internet PC Adapter
Computer with:
Windows 8/7/Vista/XP/2000, or Mac OS, Linux
CD-ROM Drive
Network Interface Card

>> Physical

Operating Temperature:
Storage Temperature: -40 ~ 90?°C
Working Temperature: -30 ~ 80?°C

Humidity:95% Maximum (Non-condensing)

Dimensions: 110mm x 78mm x 28mm

Weight:
600g (not including the antenna)

Color: Metal Gray-Black, OEM is available

>> Others

Warranty: 1 Year default, can extend to 5 years
