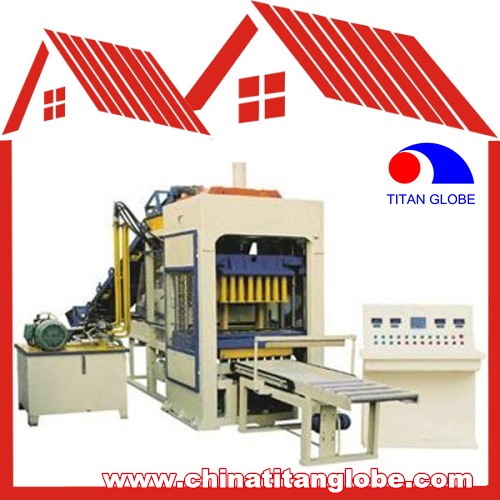

Brick Making Machine QTJ4-18

Specifications

(1) It is a compact machine with electric and hydraulic system ,each procedure action locks with each other to guarantee the machine operate safely, easily and dependablely.

(2)Though mold-releasing oil cyclinder, the mold box was locked into the vibration table with high rigidity to reach the synchronous vibration, so that the concrete can be fluidified and exhausted in two or three seconds to ensure the high-density, especially suitable to produce the standard blocks, which can bo piled up immediately so that the pallet investment can be saved directly..

(3)the unique forcing charge system can make use of various kinds of industrial waste and material such as coal ash, cement, sand, stone, slag, and so on. The machine can several purposes and produce various specification standard bricks, concrete blocks, porous blocks, paving bricks etc.

1.Main Technical  Parameters

Production Quantity: 390X190X190mm    4 PCS/Mould

                                  240X115X90mm     12 PCS/Mould

                                  240X115X52mm      26PCS/Mould

Host Machine Power:20.5Kw

Forming Cycle:18-25S

Total Weight:6.0T

Shift Capacity:5800PCS Hollow Bricks,38000PCS Standard Bricks,18000PCS Cellular Bricks

Overall Size:3700X2100X2700mm

Carriage Size:900X550X30mm

Executive Standards:GB/T8533-2008

Raw Materials:Concrete,Crushed Stone,Snad,Cement,Dust And Coal Fly Ash,Cinder,Slag,Gangue,Gravel,Perlite And Other Industrial Wastes.

2. Features Of Brick Machinery QT4-18 Automatic Hydraulic Cement Block Making Machine
1). QTJ4-20 Hydraulic Automatic Baking-Free Brick Machine is an equipment involving mechnical, hydraulic and electrical control systems. It is characterized by high efficiency, reasonable design, compact structure, easy operating and convenient maintenance.

2). For the product forming, the machine takes the hydraulic force as the main and the mechanical force as the auxiliary, through vibrating and pressing, to finish the forming procedure. The formed products are high in compressive strength, good in density, perfect in anti-frost and precise in dimensions. Its four guiding columns are coated with cadmium, having perfect torsional strength and wearing capacity. Its material distributor, using sensor and hydraulic proportional driving technologies, can produce forced centrifugal discharging under the function of swing and arc-breaking mechanism to provide quick and even material distributing, and to increase the productivity.

3). For multi-function use

3.Other Informations Of Brick Machinery QT4-18 Automatic Hydraulic Cement Block Making Machine

1). Area: Workshop Area: 150-200m2, All Factory Area 2000m2, Bigger Is Better.

2). Workers :3-4

3). Ratio Of Raw Material:Cement 8%-10% Sand 30%-40% Stone:50%-60%,About  Cement :Sand : Stone is1:4:5.

4). Hollow Block Weight:(400*200*200) :17KG,(400*150*200):13.5KG,(400*100*200):10KG

5). Raw Material Consumption Per Day:90-100T

6). Water Consumption Per Day:3%-5% Of Raw Materials Weight.
