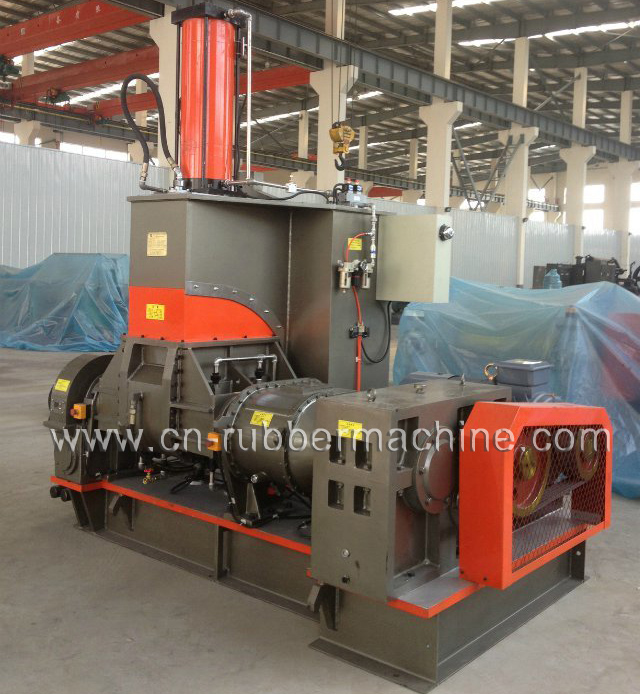

Rubber Mixer, Rubber Dispersion Mixer, Internal Mixer X(S)N-35L

FOB Price:	15,000.00 - 22,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	by sea or other way as your required
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard Export Packaging

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 year
Certification: CE, SGS, ISO
Power(W): 55KW
Voltage: AS YOUR REQUIRE
Model Number: X(S)N-35X30
Brand Name: SFC
Type: Rubber Kneader
Condition: New

Specifications

Rubber Mixer, Rubber Dispersion Mixer, Internal Mixer X(S)N-75L:

Certificate:
Qingdao Shun Cheong Machinery Co., Ltd is the professional manufacturer of various rubber mixers and press machine. Our company has passed ISO9001: 2008 Quality Management System Certification and our products have qualified with Sweden SGS Certificate, and CE Certificate.

Rubber Mixer is the best machine for mixing of big quantity plastic and rubber material. This Banbury Mixer is mainly used for plasticizing and mixing of natural rubber, synthetic rubber, reclaimed rubber and plastics, foaming plastics, and used in mixing of various the degree materials.

Technical Advantages:
1. The rubber mixer diversity of rotor type can meet different mixing requirements. User can choose any kind of rotors (the mixer with different rotor has different total volume and working volume.
2. Drive system adopts DC motor or AC inverter motor to realize stepless speed adjustment or adopts AC Motor with gear box etc. The drive system has the advantages of steady drive, lower noise and long service life etc.
3. The rubber mixer standard rotor adopts the right drive system. According to users needs we also can supply the left drive system.
4. Rubber mixer drive system adopts DC motor or AC inverter motor to realize stepless speed adjustment or adopts AC motor with gear box etc. The drive system has the advantages of steady drive, lower noise and long service life etc.
5. On-site operation cabinets and electrical control cabinets adopt PLC communication, results in reduction of equipment troubles and installation cost.

Construction Features:
1. With completely condition, materials are mixed or plasticizing under certain pressure, controllable temperature, which makes high production efficiency and obtains excellent quality
2. Spiral angle and over lapping length of blades of the rotors are of reasonable design and make the materials to be dispersed uniformly
3. Surface where is contacted with the materials are all plated with hard chromium and polished, which is corrosion-resistant and wear-resistant
4. Jacket construction is adopted in parts that surfaces contact with materials to achieve excellent water-cooling or steam heating effect and fit in with the needs of plastics and rubber processing technology.

Technical Parameters:

Item	Unit	X(S)N-3x32	X(S)N-10x32	X(S)N-20x32	X(S)N-25x32	X(S)N-35x30	X(S)N-55x30	X(S)N-75x30	X(S)N-110x30	X(S)N-150x30	X(S)N-200x30
Total Volume of Mixing Chamber	(L)	8	25	45	55	75	125	170	250	325	440
Working Volume of Mixing Chamber	(L)	3	10	20	25	35	55	75	110	150	200
Driving Motor Power	(KW)	5.5	22	37	37	55	75	110	185	220	280
Titling Motor Power	(KW)	0.55	1.1	1.5	1.5	2.2	2.2	4	5.5	11	11
Rotational Speed of The Rotor (front/rear)	(r/min)	30/24.5	32/25	32/27	32/27	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5	30/24.5
Pressure of Compressed Air	(m3/min)	≥0.3	≥0.5	≥0.7	≥0.7	≥0.9	≥1.0	≥1.0	≥1.5	≥2.0	≥4.0
Pressure of Cooling Water (mixing rubber)	(MPa)	0.2~0.4	0.2~0.4	0.2~0.4	0.2~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4	0.3~0.4
Pressure of Heating Steam (plastic mixing)	(MPa)	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8	0.5~0.8
Dimensions (L x W x H)	(mm)	2000x1000 x2220	2640x1650 x2350	2675x1650 x2560	2675x1650 x2560	3200x1900 x2950	3230x1927 x2958	3325x2615 x3150	4075x2712 x3580	4250x2750 x4106	4250x3400 x4215

In addition, our machineries have exported to America, Mexico, India, Vietnam, South Africa, Singapore, Malaysia, Indonisia, Australia, Sri Lanka and many other countries.

If you interested in our products mentioned above. Kindly let us know by return email. Then I will supply you with further information. Meanwhile, welcome to visit our factory!
