Jinan Zhuoke CNC Equipment Co., Ltd.
China Manufacturer with main products: CNC Router, CNC Engraving Machine, Metal Engraving Machine, Laser Cutting Machine, Laser Engraving Machine |
Home
>Products Catalog > Woodworking CNC Router > Woodworking CNC Carving Machine With Dust Collector 1500*2500mm ZK-1525

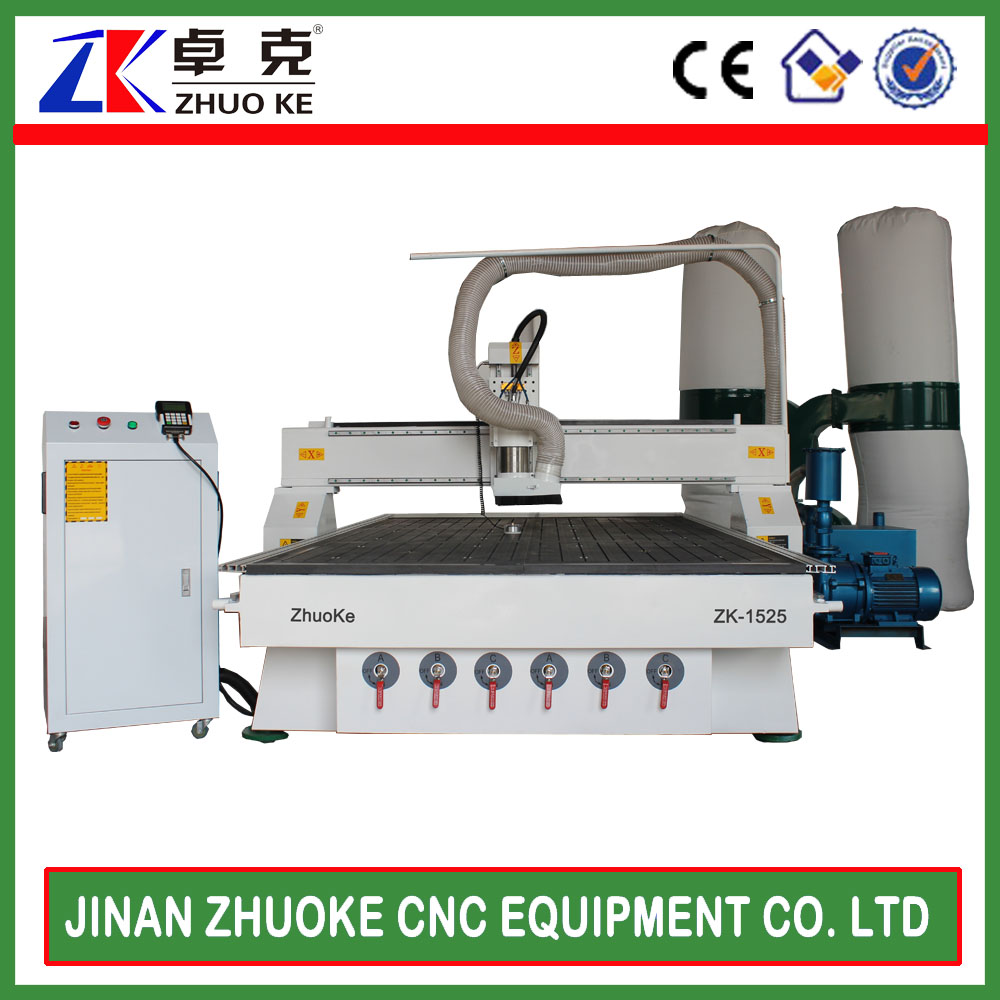

Woodworking CNC Carving Machine With Dust Collector 1500*2500mm ZK-1525
| FOB Price: | 4,500.00 - 6,000.00 USD/Set |
|---|---|
| Supply Ability: | 280 Set/Sets per Month |
| Shipping: | EXW/FOB/CIF |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | Packing: 15 CBM, 1400kg Shipping: EXW/FOB/CIF/DDP/DDU... according to your need |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Certification: CE,ISO,FDA,SGS
- Weight: 1400kg
- Dimension(L*W*H): 3570*2250*1750mm
- Power(W): 5.5kw
- Voltage: AC110V/AC 220V/380V or according to your local standard
- Model Number: ZK-1525
- Brand Name: ZhuoKe
- CNC or Not: CNC
- Condition: New
- Working Size: 1500*2500mm
- Spindle Power: 5.5Kw
- Control System: DSP offline control
- Vacuum Table: Yes
- Dust Collector: Yes
Specifications
Applicable Industries
Woodworking industry: cupboard door, craft wooden door, solid wood door, panel engraving and cutting, stereo
wave board processing, panel furniture, painting door, paint-free door, screen, craft windows working, furniture milling and engraving, wooden musical instrument 3D engraving
Other industry
Advertising industry: advertising signs, acrylic cutting, logo making, plastic molding, a variety of advertising and
decorative products making
Applicable Materials
color board, plastic plate, luminous panel, organic glass, aluminum, copper, sliver, gold, iron, stainless steel and
other materials.
Main technical parameters
|
Items |
Destription |
Optional |
|
Effective working area |
1500(X)mm*2500(Y)mm*200(Z)mm |
Bigger |
|
Max.thickness of the materials |
≤200mm(the distance between Z-axis and the bottom of the working station) |
higher |
|
Materials |
Square steel tube machine, casr iron gantry |
|
|
Guide rail |
Linear square guide rail |
|
|
Transmission |
Rack for X Y-axis, ball screw for Z-axis |
Whole ball screw transmission |
|
Driving mode |
Stepper motor |
Servo motor |
|
Spindle motor |
5.5kw water cooling |
Bigger or air cooling |
|
Spindle speed |
0-24000rpm/min |
|
|
Empty traveling speed |
0-60000mm/min |
|
|
Engraving speed |
0-25000mm/min |
|
|
Voltage |
AC 220V 50/60Hz or AC 380V 50/60Hz |
|
|
Machine accuracy |
0.03mm |
|
|
Control system |
DSP offline |
NcStudio or MACH3 |
|
Carving Instructions |
G code *Uoo *mmg *plt HPGL |
