Jinan iGolden CNC Equipment Co., Ltd.
China Manufacturer with main products: Wood CNC Router, Marble CNC Router, Advertising CNC Router, Mini CNC Router, ATC CNC router, Foam CNC Router, Muti-heads CNC router,... |
Home
>Products Catalog > Woodworking CNC Router > decoration wood craft 3.5kw spindle 1325 cnc router

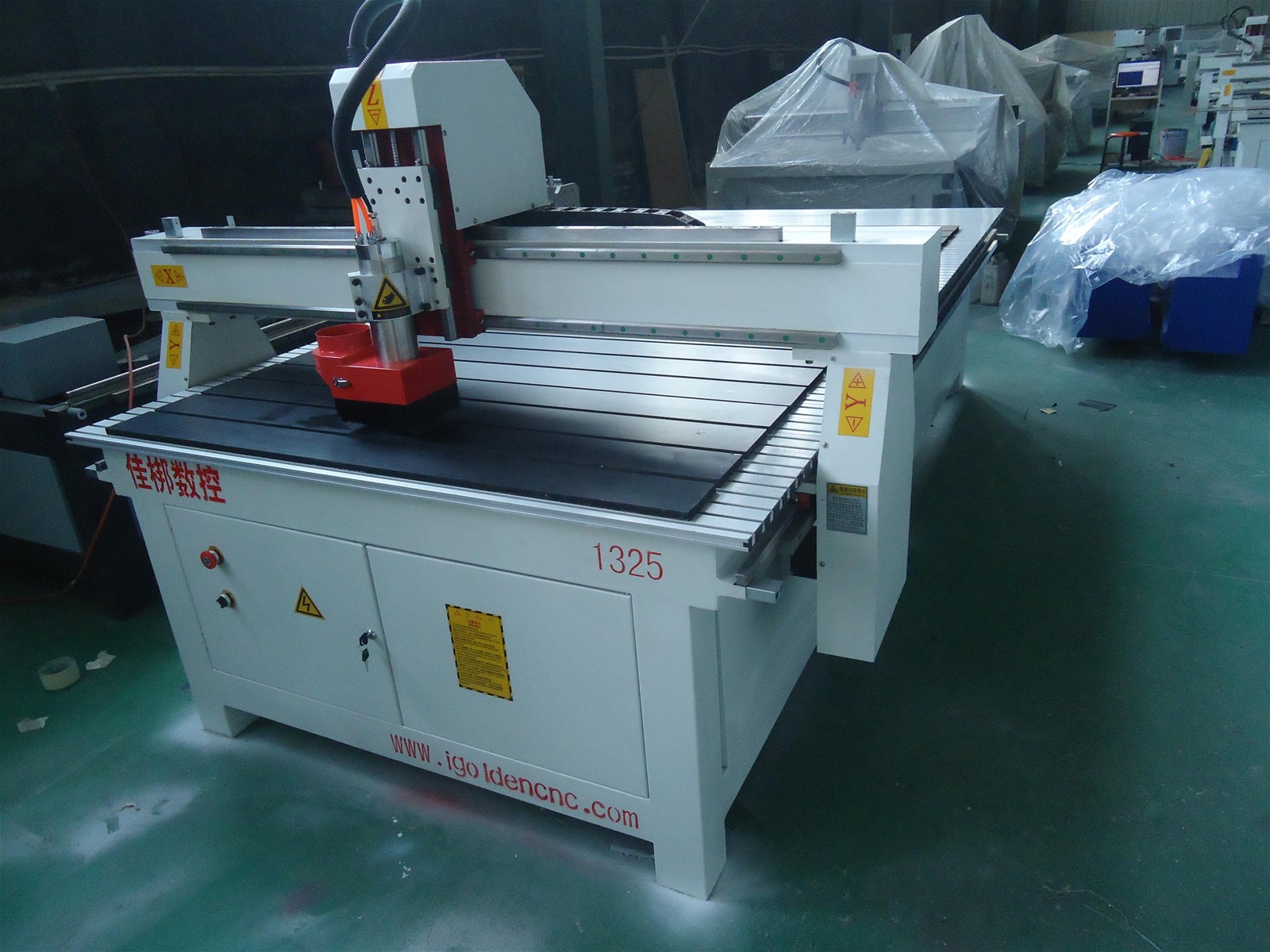

decoration wood craft 3.5kw spindle 1325 cnc router
| FOB Price: | 3,500.00 - 5,000.00 USD/Short Ton |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | within 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | wooden box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE, ISO
- Weight: 1000kg
- Power(W): 3.5kw
- Voltage: 380V,50HZ
- Model Number: 1325
- Brand Name: IGOLDNE
- CNC or Not: CNC
- Condition: New
- spindle: air-cooling 3.5kw
- table: T-slot
- guide rails: Taiwan HIWN
- Motors: stepper motor
- control system: DSP/Nc-studio
Specifications
1. CNC Machine features
1. Spindle design can be increased to 4 spindles,up and down by cylinder independently or moving up and down
by motor for choice. Beam trip with full stroke or half stroke is available.
2. Table design: T-slot aluminum table,PVC vacuum table + T-slot aluminum table and compact grade board three
types for choice.
3. Vacuum Pump: German Becker pump,Chinese Tongyou pump and Chinese air blower three types for choice.
4. French Schneider electrical componets and Japan OMRON switches, German Siemens soft starter/Swiss ABB
soft starter for vacuum pump;
2. CNC Technical Parameters
|
NO. |
Description |
Parameters |
|
1 |
Working area |
1300*2500*200mm |
|
2 |
Table size |
2000*3050mm |
|
3 |
Transmission |
X/Y rack and pinion, Z ball screw |
|
4 |
Table structure |
Vacuum Absorption(Optional) |
|
5 |
Spindle power |
4.5KW |
|
6 |
Spindle speed |
24000rpm/min |
|
7 |
Travelling speed |
17m/min |
|
8 |
Working speed |
20m/min |
|
9 |
Working Delicacy |
0.02mm |
|
10 |
Repositioning Accuracy |
0.03mm |
|
11 |
Driving Motor |
Stepper motor |
|
12 |
Control System |
DSP/Nc studio Control System |
|
13 |
Command Code |
G Code*.u00*.mmg*.plt |
|
14 |
Voltage |
3 Phase/380V/50HZ; 2 Phase/220V/50HZ; |
|
15 |
Software |
Artcam/Type3,other CAD/CAM |
3. CNC Applicable Industries
1.Furniture: ideally suitable for processing cabinet door, wooden door, solid wood furniture,
panel wood furniture, windows, tables and chairs, etc.
2.Other wooden products: stereo box, computer desk, musical instruments, etc.
3.Wellsuited for processing panel, insulating materials, plastic, epoxy resin, carbon mixed compound, etc.
4.Decoration: acrylic, PVC, density board, artificial stone, organic glass, soft metals like aluminum
and copper, etc.
CNC Free accessories
Software, CD Videos, Controlling Card (PCI card), Water Pump, Engraving Tools, Data Wire,
Power Line, Spanners and Clamps,and so on.
Service:
# 18 months guarantee of the whole machine, we will provide the consumable parts at an agency price when you need replacement.
# Main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
# Software is on update for free whole life.
# Our engineer could support you technology to your country if necessary.
# Our enginner could service on weekend even on vacation.
# Our engineer could train you in our factory for free.
# Our engineer could service you 24 hours online by Skype, yahoo, msn, QQ, or by cellphone.
# English manual and CD video for machine using and maintaining will send to you with the machine.
