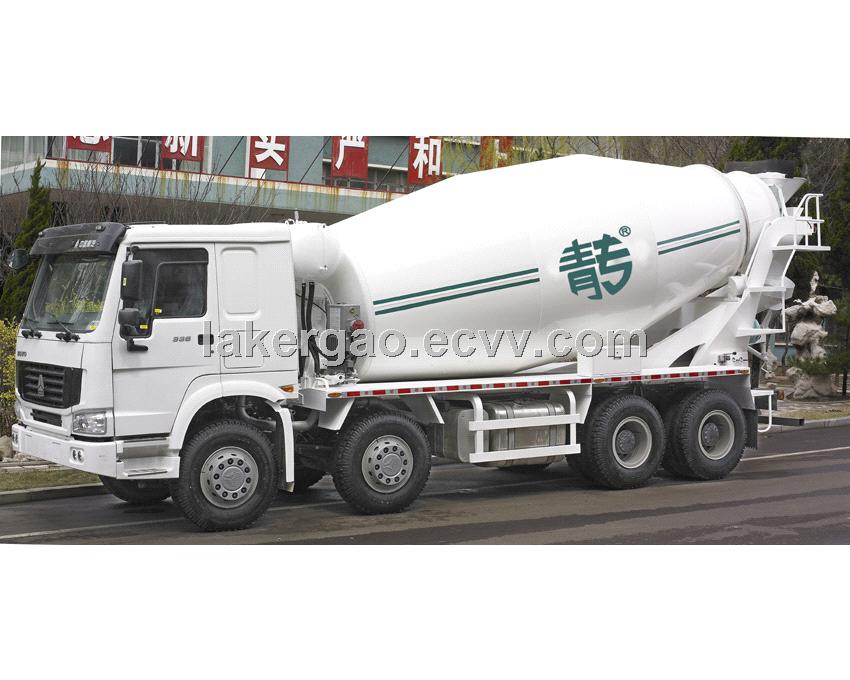

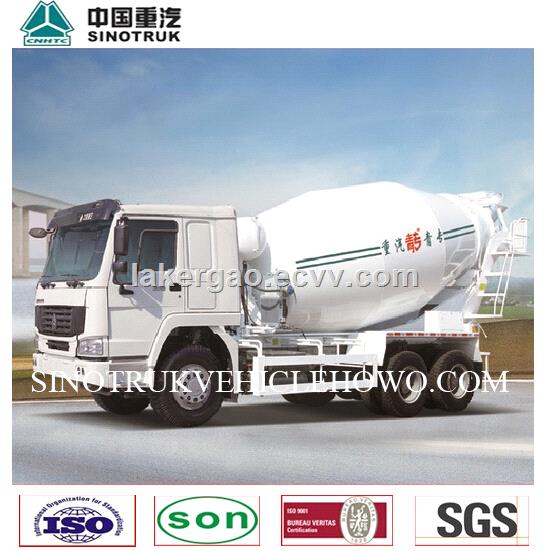

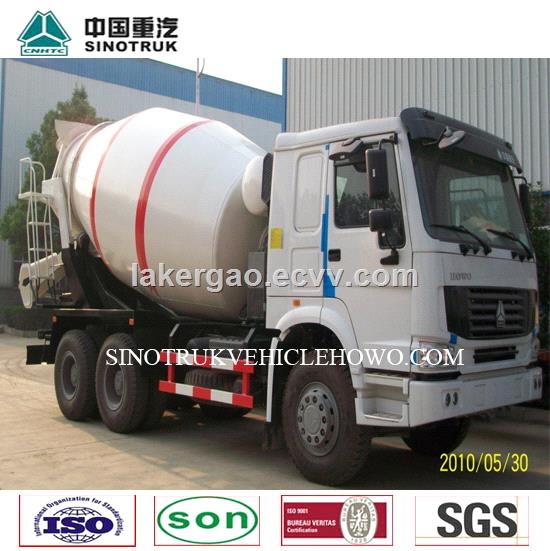

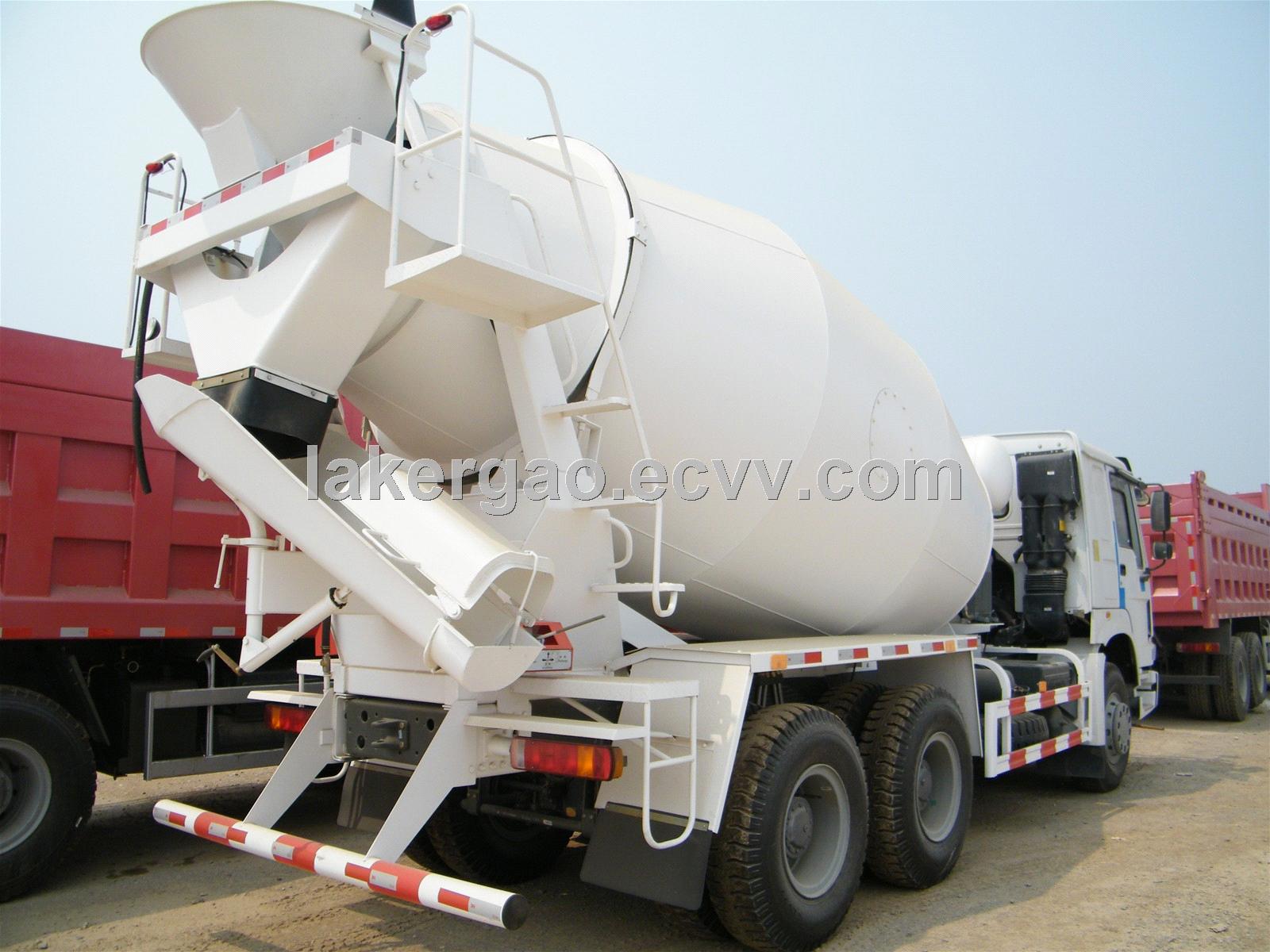

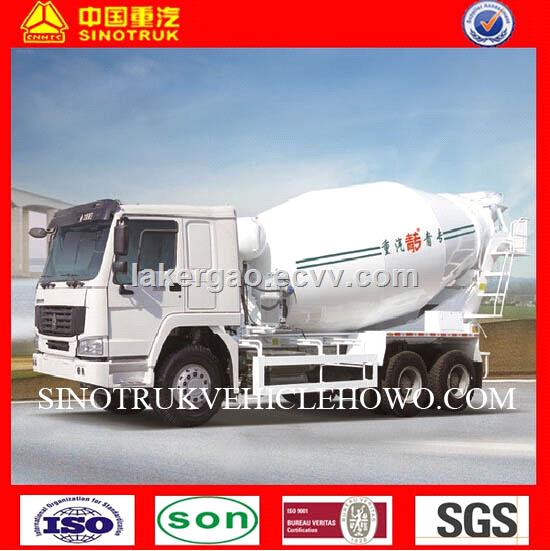

Sinotruk 8m3 Howo 6x4 Concrete mixer truck For Sale

VEHICLE SPECIFICATION

DESCRIPTION

Truck Model

ZZ1257N3247

Type of Vehicle

8m3 Concrete Mixer Truck

Truck Brand

SINOTRUK—HOWO

Driving Position

Left hand Driving

Fuel tanker capacity(L)

400

The Total Mass

25,000kg

Dead Weight

12300

Max speed(km/h)(km/h)

90

Color

Optional

Manufacture

China National Heavy Duty Truck Group Co., Ltd.

Chassis & Add Components

Frame Details

parallel ladder with U-profiles and riveted cross members

Dimension(Lx W xH)(unloaded)(mm)

9003x2496x3950

Approaching angle/Departure angle(°)

16/27

Overhang(front/rear) (mm)

1500/1647

Wheel base (mm)

3225+1350

Engine

Model

WD615.62

Brand

SINOTRUK

Power

266HP

Emission

EURO II

Displacement(L)

9.726

Type

water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Kind of Fuel

Diesel

Fuel Consumption(L/100km)

25-30L/100km

Clutch & Gear Box System

Clutch

SINOTRUKΦ430mm diaphragm spring clutch

Gear Box

HW13710

10 forwards and 2 reverse.

Brand

SINOTRUK

Axles

Front Axle Model

HF9 axle. Capacity: 9000kg

Rear Axle

HC16 axle. Capacity:2X 13000kg

Ratio of rear axle

3.93/4.42/4.80/5.73

Electrical System

Battery

2X12V/165Ah

Alternator

28V-1500w

Starter

7.5Kw/24V

Brake System

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098

Brand

German Brand

Type

hydraulic steering with power assistance

Wheels & Tyres

Type

12.00-20

Material

Bias tires

Quantity

10+1 spare

Cabin

Type

HW76
