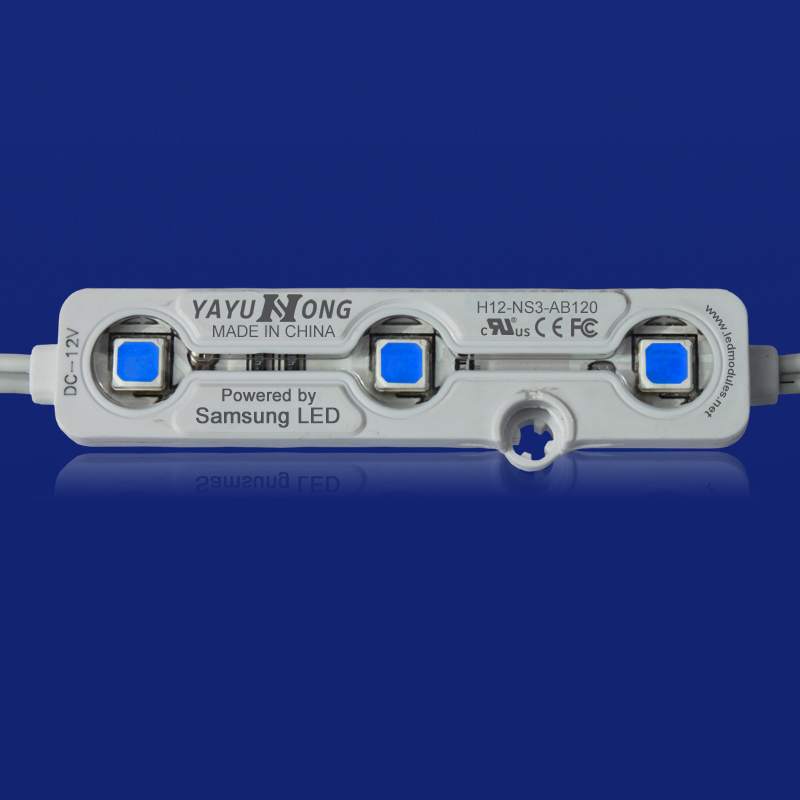

SMD waterproof led injection module for sign, signage and channel letters

FOB Price:	0.40 - 0.45 USD/Piece
Supply Ability:	2,000,000 Piece/Pieces per Month
Shipping:	FOB HongkongSAR, Shenzhen, Guangzhou
Payment Terms:	L/C, T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

PE5C Slewing Drive For Heavy Duty Hydraulic Mod...

Price:

Min. Order:1 Piece
8X2 Character LCD Module Alphanumeric COB Type ...

Price:2.00-20.00 USD/Piece

Min. Order:5 Pieces
1*N Mini Module PLC Fiber Splitter

Price:6.30-50.00 USD/Piece

Min. Order:10 Pieces
CISCO Module Hwic-4ESW

Price:191.00-192.00 USD/Piece

Min. Order:2 Pieces
5.5- inch AMOLED display module with 720*RGB*12...

Price:40.00-45.00 USD/Piece

Min. Order:10 Pieces
Hot Sale Prefab Bathroom Modules, Hotel Bathroo...

Price:800.00-2,600.00 USD/Set

Min. Order:5 Sets

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	1000 pcs per box

Quick Details

Type: LED Modules
Certification: CE,RoHS
Brand Name: YYH
Viewing Angle(°): 160
Power Dissipation: 1.2w
Luminous Intensity: 18-25
Emitting Color: Blue
Model Number: H12-NS3-AB120

Specifications

Features

   Simple appearance design without losing stylish and elegant
  High efficiency Samsung SMD chip
  Reverse voltage, current protection design
  Constant current drives a stable product performance
  High luminosity , low light decay and even brightness
  160° better emitting angle through a CAP TYPE Optical switching Lens
  IP 67 waterproof rating by ultrasonic welding technology
  18 AWG tinned copper wire getting a low thermal resistance
Max.50 units in series , and each unit cuttability
  Safety, energy saving and Eco-friendly
  CE and RoHs approved

Typical Applications

   Channel letters
  Advertising letters
  Decorative lighting
Sign and signage and light box illumination
Replaces neon/fluorescent lighting

Product parameters

LED chip brand: Samsung
Chip size: 5054
Operating voltage: DC 12V
Power dissipation: 1.2W
Emitting angle: 160°
Luminous intensity: 18-25Lm
Dimension: L:66mm x W:17mm x H:8mm
LED quantity: 3 pcs
Emitting color: Blue
Waterproofing rate: IP 67
IP type: Injection workmanship
Material of main cabinet: ABS inflaming retarding
Material of Lens: Optical PC material
Color of main Cabinet: White
Max. In series: 50pcs
Adhesive type: 3M adhesive Sponge
Operating temperature: -20~60℃
Storage temperature: - 30~70℃
Warranty: 5 years
