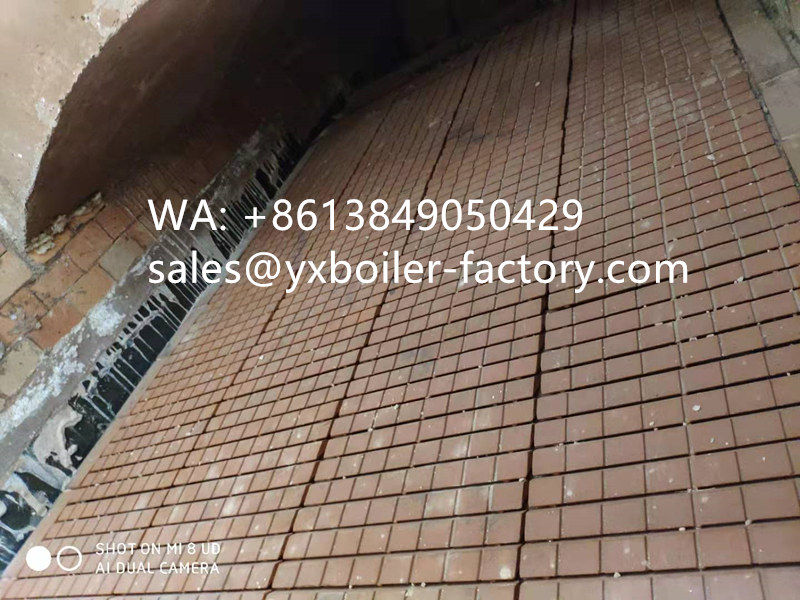

Travelling Grate Stoker Small Flake Chain Grate Chain Grate Stoker

Specifications

Chian grate range from 0.5t 2T/H  to 35t/h
the chain grate stoker is a mechanization equipment applied mostly in steam boiler, hot water boiler and thermal oil boiler. It

Features reasonable structure, reliable performance and convenient installation, etc.
the series products adapt light chain grate stoker and reasonable air distribution device and also strengthen the seal at both

Sides of chain grate as well as configuration reasonable front and back arch.

It features strong suitability in combustion and reasonable air distribution for combustion and quick fire starting. Operation

Practice provided that combustion heat value is about 18840 kJ/kg.

Soft coal with more than 20% of volatile amount and mixed coal can be combusted normally. Moreover it can also combust

Waste industrial materials such as wood block, sugarcane residual, etc

Product applications and description

Various grate, active sheet, passive sheet, grate pin, sprocket, chain, grate, furnace door, slag scraper, front and rear bearing block, slag stopper, coal gate, economizer, side seal Iron, manhole, hand hole device, roller and other boiler parts, the material is gray cast iron, Ma Steel, ductile iron, precision cast steel, etc. Its quality level has reached the advanced level of domestic similar products, welcome to visit.

Furnace coal fired chain grate stoker can be applied in chemical plant, university, food factory, beverage factory, cannery, textile mills, paper mill, sugar plant, central heating and other industries.

Travelling grate stoker features:

1.Travelling grate stoker leaks a small amount of coal, about 0.15 ~ 0.2%, saving fuel.
2. with automatic cleaning function. At the tail of the grate, it is automatically cleaned by gravity and ash slag. Better cooling furnace row.
3. Has a good adjustment ability. Any grate bar can be adjusted at any time without stopping the furnace.
4.the working conditions are layered reasonably. Grate pieces, supports and chains function as combustion, support and operation, respectively.

5.Travelling grate stoker can be used in a variety of large boilers. Especially when it is greater than 10t/h.

Product Type
1.Rectangle grate piece, including 12# 15# 18# 20#,24# 26#,30#,32# and single double wind passive film.

2.Three-jaw grate. the size consists of 112mm 115mm 118mm 120mm 125nn 133mm 135mm 150mm 155mm 165mm 205mm.

3. Four-jaw grate.the size consists of 200mm, 214mm 219mm, 220mm, 230mm 240mm 245mm 250mm 252mm, 265mm, 286mm, 296mm, 320mm, 330mm, 350mm, 368mm, 370mm, 380mm, 385mm 390mm, 400mm.

4. Live core grate. the size consists of 200mm, 203mm, 205mm, 220mm, 228mm, 231mm, 235mm, 245mm, 250mm, 265mm, 290mm.

5. Flake type grates.the size consists of L=288mm 301mm 311mm 315mm 318mm 330mm 365mm 367mm 368mm.

Data sheet of sMall scale type fire grate
