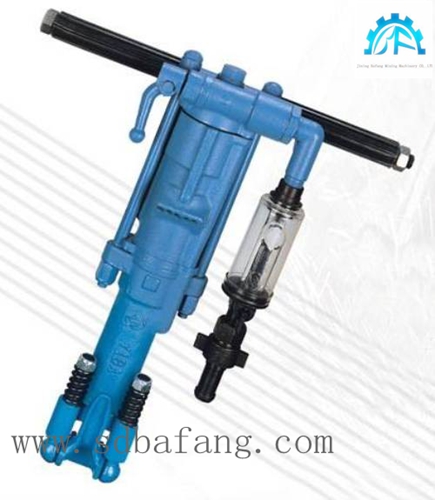

7655 mining pneumatic air leg hammer rock drill

FOB Price:	450.00 USD/Unit
Supply Ability:	58,000,000 Unit/Units per Month
Shipping:	3-5 days after payment
Payment Terms:	D/P, T/T, Western Union

In Stock

Inquiry Now

Related products from verified members

Varco Drilling Rig TDS9S 110716-2 MANIFOLD,RELI...

Price:1,000.00-1,500.00 USD/Piece

Min. Order:1 Piece
Used Piling / Drilling Rig ABI Mobilram TM 8/10

Price:103,750.00 USD/Unit

Min. Order:1 Unit
Rock Drill (YN27 )

Price:200.00-400.00 USD/Set

Min. Order:1 Set
Used Surface Drill Rigs Atlas Copco ROCD7

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Shandong in China
Packaging Details:	Standard export woodencases or Bubble tape or EPE

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: half a year
Certification: ISO9001 & CE
Weight: 24KG
Dimension(L*W*H): pipe piameter: 13mm
Power(W): 0.4~0.63
Voltage: NO
Usage: Coal
Model Number: 4
Brand Name: Bafang
Power Type: Gasoline
Type: Core Drilling Rig
Condition: New
air pressure: 0.68mpa
drill hole depth: 5m
cylinder bore: 76mm

Specifications

Product Introduction

7655 mining pneumatic air leg hammer rock drill is a high efficiency rock drilling machine. It's widely used in mining and roadway drivage of drilling operation. Also it's an important tool for railway, water conservancy,and construction. It can be used with FY200B oiler and type FT160A (FT160B,FT160C)air leg.It can be used for drilling the medium hard rock for wet drilling, drilling horizontal and inclined hole.

Specifications

1.7655 HandHeld Pneumatic Mine Rock Drill
2.ISO9001 CE MA approved
3.Short Delivery Time
4.Factory Price & Small MOQ

7655 HandHeld Pneumatic Mine Rock Drill

1.Good quality with strict quality system control, ISO9001,MA,CE

2.Reasonable price with self manufacturing and self-management export

3.Work with FT160A/FT60B/FT160C air leg

4.Safe for coal/gold mining,tunnel and quarry use

Specification:

7655 rock drill
Weight	24			kg
Physical size(lengthwidehigh)	628232207			mm
Cylinder Diameter	76			mm
Piston Stroke	55			mm
Working Pressure	0.4~0.63			Mpa
Working Hydraulic	0.3			Mpa
Working temperature	-30~50			°C
Air pipe Diameter	25			mm
Water pipe Diameter	13			mm
Shank bit Size	H22*108			mm
Appropriate chisel hole diameter	34~42			mm
Suitable for maximum hole depth	5			m
Acceptance Pressure	0.63	0.5	0.4	Mpa
Impact Energy	≥65	≥59	≥42	J
Drilling Impact Frequency	≥37	≥36	≥34	Hz
Drilling Air Consumption	≤80	≤54	≤50	L/s
Torque	≥18	≥15	≥12	N.m
Speed	≥300	≥300	≥280	R/min
Noise	≤90	≤95	≤98	Db
Drilling Speed	≥410	≥350	≥260	mm/min
Cleanness	≤ 750			mg

FY200B Oiler
Weight	1.2	kg
Oil Capacity	0.2	L

Air Leg	FT160A	FT160B	FT160C
Length	1668	1428	1820	mm
Propulsion Stroke	1338	1098	1490	mm
Air Cylinder Diameter	65	65	65	mm
Weight	17	15	18	kg

Features and use:

7655 HandHeld Pneumatic Mine Rock Drill is a high efficiency rock drilling machine. It's widely used in mining and roadway drivage of drilling operation. Also it's a important tool for railway, water conservancy, and construction. It can be used with FY200B oiler and type FT160A (FT160B,FT160C)air leg. It can used for drilling the medium hard rock for wet drilling, drilling horizontal and inclined hole.

7655 HandHeld Pneumatic Mine Rock Drill is suitable for hard rock, concrete (f=8~18) drilling, blasting, breaking works.

7655 HandHeld Pneumatic Mine Rock Drill is applyed in hard rock on the rock drill operation, it has strong adaptability to the working conditions. It's energy efficiency, its components has long life and durable. The machine can be generally used with the same type, it can greatly reduce the customer loss for spare part replacement.

Because of reasonable design and perfect performance, 7655 rock drill is always good sales in China and abroad.
