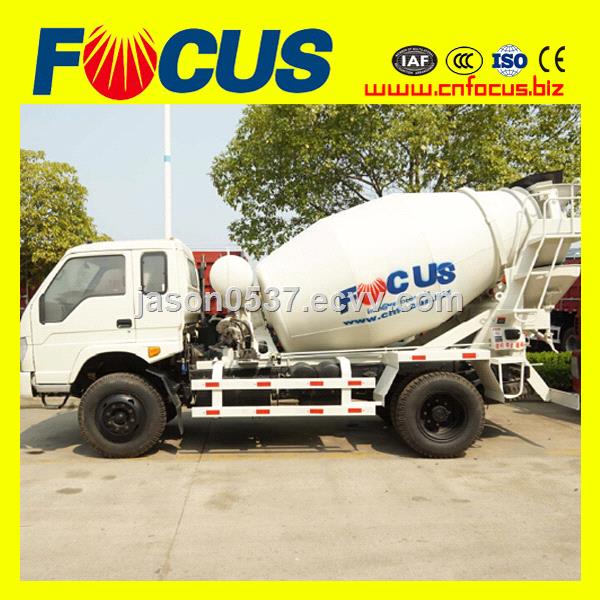

LHD or RHD 3m3, 4m3 mini concrete truck mixer, concrete mixer truck
| FOB Price: | 10,000.00 - 60,000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Shipping: | within 25 working days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | by roro or bulk ship |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months
- Model Number: 3m3, 4m3
- Brand Name: FOCUS
- Condition: New
Specifications
Characteristics of 3m3, 4m3 mini concrete truck mixer
1.FOCUS 3m3, 4m3 concrete truck mixer ;
2.international famous brand hydraulic drive fits are adopted in our concrete truck mixer
3.integral type oil tank, oil cooler and electrical fan are adopted with simple and reliable system;
4.multi-points control system enables the concrete truck mixer operation to be easier, safer and more comfortable;
5.air pressure water supply system with large capacity water tank.
What are the main features of FOCUS concrete truck mixer?
1.Oil tank and radiator are imported top brand combination with temperature control switch and vacuum meter while oil change and maintenance are easily realized for our concrete truck mixer.
2.Pump, motor and reducer in FOCUS concrete truck mixers are all original imported AMERICA static pressure driving system with big driving torque and high efficiency.
3.Imported hose and connector are separately from GERMANY EMB and ITALY MANULI.
4.Hose buckling device is totally from GERMANY HYDAC.
5.Stirring vat auto-welding improves FOCUS concrete truck mixer production efficiency and makes welding quality finer.
6.Tri-axial design and three-section double logarithm helix surface design can ensure concrete speedy feeding and discharge and low surplus rate in our concrete truck mixer
7.Fault indicator for the concrete truck mixer can check all welding seams of stirring vat to ensure good welding quality after it's being welded by auto-welding machine.
8.Truck frame adopts tri-axial lineation machining, and adopts laser check to ensure an accurate installation position.
FOCUS RHD concrete truck mixer technical parameters:
|
[Main Technical Parameter] |
|||
|
Chassis Brand |
FOTON |
Batch No. |
256 |
|
Product Name |
BJ5145GJB-1 Concrete Mixer Truck |
Truck Model |
ZK3WU4C8044 |
|
Total weight(Kg) |
13570 |
Tank Volume(m3) |
3.30 |
|
Rated Load(Kg) |
7395 |
Dimension(mm) |
6460x2255x3300 |
|
Curb Weight(Kg) |
5980 |
Passenger(person) |
3 |
|
Approach angle/departure angle(°) |
24/20 |
Front overhang/rear overhang(mm) |
1230/1830 |
|
Axel No. |
2 |
Wheelbase(mm) |
3400 |
|
axle load (Kg) |
4860 |
Max. Speed(Km/h) |
83 |
|
Other |
Mixing Volume:3m3 Material of side and below protective device:Q235 steel, Connection type: Bolt Connection Height of back protective device:500mm |
||
|
[Chassis Parameter] |
|||
|
Chassis Model |
BJ1145VJPFA-1 |
Brand |
FOTON |
|
Dimension(mm) |
6070x2180x2510 |
Quantity of Tire |
6 |
|
Approach angle/departure angle(°) |
24/22 |
Tire specification |
8.25-20 |
|
Steel Spring No. |
10/12+9 |
Front Tread(mm) |
1774 |
|
Fuel |
Diesel |
Back Tread(mm) |
1669 |
|
EMISSION STANDARD |
Euro III |
||
|
Engine Model |
Engine Manufacturer |
Displacement(ml) |
Power(Kw) |
|
YC4D130-41 |
Guangxi YuChai Diesel Engine Co., Ltd |
4200 |
96 |
