Concrete Batching Plant HZS25

Payment Terms:	L/C, T/T

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Condition: New

Specifications

New Ways has almost thirty years' experience in designing and manufacturing concrete batching plants for customers all over the world.New Ways products were sidely used in building,highway,bridge,airports,dams,tunnels,concrete pipe pile,precast concrete factory,water conservancy,electric power and other projects.

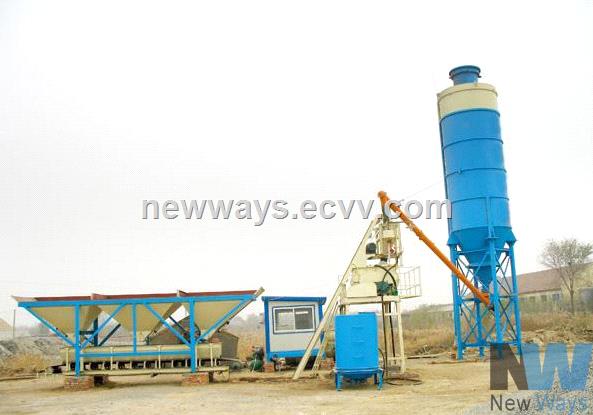

HZS25 stationary Concrete batching plant is also named ready mix concrete plant,mainly composed of mixer,the material weighing system,conveying system,material storage system,control system and steel structure. It can mix fluidity concrete,plastic concrete,hard concrete and other proportioning concrete.

[Concrete mixer property parameters]

Main technical data
Type	HZS25
Productivity in theory	25m3/h
Mixer	JS500
Mixer power	30KW
Maximum aggregate diameter	80mm
Discharging volume of mixer	750L
Aggregate feeding method	Skip hopper
Batcher	PLD1200
Aggregate weighing	2250kg ±2%
Cement weighing	450kg ±1%
Water(flow-metering)	300kg ±1%
Overall dimension(during operating) (LXWXH)	8685mmX5560mmX6550mm(discharging height is 2.7m)
Overall dimension(during operating) (LXWXH)	10115mmX5560mmX8405mm(discharging height is 3.8m)
Total power	60kw
Total weight	8254kg (2.7m discharging height)
Total weight	9524kg(3.8m discharging height)
Control	Semi-automatic batching, manual operated
Cement silo(optional)	Required on clients' demand, 50T, 100T available
Cement screw(optional)	Each cement silo equipped with one φ219 screw
