Sofe seal gate valve, cast iron gate valve, ductile cast iron gate valve, resilient seated valve

FOB Price:	40.00 - 100,000.00 USD/Piece
Supply Ability:	1,000,000 Piece/Pieces per Year
Shipping:	25 days delivery time
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Jiangsu in China

Quick Details

Brand Name: Cosmic Power
Model Number: YZ45X
Port Size: DN50-600
Media: Water
Temperature of Media: Normal Temperature
Material: Ductile cast iron
Power: Manual
Pressure: Low Pressure
Structure: Gate
Standard or Nonstandard: Standard

Specifications

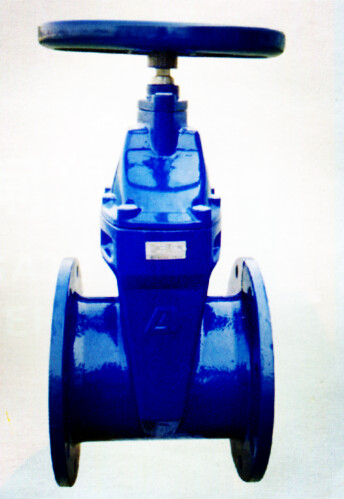

Manual resilient seated gate valve
Model no.: YZ45X

General features

Good seal: Flexible gate disc produces micro deformation, and the compensation effect makes a good seal.
Fluid pressure: ≤1.6MPa
Application: Used in the pipelines of construction, chemical, food, water supply and drainage system and other industries

Materials for main parts

Part name	Materials
Body, bonnet	Ductile cast iron
Wedge disc	Ductile cast iron
Stem	Stainless Steel
Nut of stem	Brass

Notice: If your have specific requirements of materials, pls indicate in advance

Model no.	PN	Test pressure		Suitable temperature (℃)	Suitable medium
		Strength(water)MPa	Seal(water)MPa
YZ45X-10/16	1	1.5	1.1	0-80℃	Water
	1.6	2.4	1.76

Remark: The above "technical parameters" are tested by GB standard, and products are certified by ISO9001/14001.
If you need us test under other standards, pls indicate in advance
