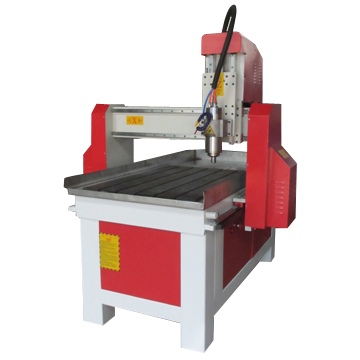

Jinan CNC router, 6090, for aluminum, wood, PCB, with 4 axis
| FOB Price: | 2,700.00 - 3,500.00 USD/Set |
|---|---|
| Supply Ability: | 300 Set/Sets per Month |
| Shipping: | by sea |
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | plywood |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: CE FDA
- Power(W): 1.5kw
- Voltage: 220v
- Model Number: FL-6090
- Brand Name: Flash Laser
- CNC or Not: CNC
- Condition: New
Specifications
Features:
- Adopts high-power water cooled DC brushless motor, low noise, big cutting strength, can do the batch processing for a long time
- Adopt the linear guide rail, to ensure the accuracy of the machine and can withstand the heavy load
- Choose high-speed drives, to ensure that the machine with fast speed and high precision
- It has a break point, continued caving without electricity, working time forecasts and ther functions
- Well compatibility, can be compatible type 3/artcam/castmate/proe/Coreldraw/Wentai and a variety of CAD/CAM design and manufacturing software
Applicable industry
Mainly used for the processing and production of all kinds of badges, the licensing department, architectural models, scale, small metal, scale, small metal, wood molds and relief
| X Y Z effective working area | 900*600*80mm |
| Max running speed | 5-6m/min |
| Max working speed | 3-4m/min |
| Positioning precision | 0.03mm |
| Max feeding height | 100mm |
| Repeating positioning precision | 0.02mm |
| Operation command | G Code*.u00*.mmg*.plt |
| Operation System | NC Studio (PCI card control) |
| Spindle RMP | 0-24000rpm/min |
| Collet | 3.175mm, 4 & 6mm |
| Power of Spindle Motor | 1.5kw/2.2kw Water-cooling |
| Voltage | AC220V/50HZ, AC110V/60HZ |
| X,Y and Z axis Driver | 6Amp Stepper Motor |
| Drive Type | Stepper Motor |
| Power (Without the spindle power) | 400W |
| Software Running Environment | Windows XP/Windows7/8 |
| CAD/CAM software with machine | UcanCam V8/Type 3 (Free of Charge) |
| Compatible software | Type3, Artcam, Castmate and more |
| Optional Device |
Spray cooling system Dust Collecting system 1.5kw/2.2kw water cooling spindle motor DSP hand held controller-offline control Z axis tool sensor |
