Hangzhou Tanvi Technology Co., Ltd.
China Manufacturer with main products: PP Filter Cartridge, Pes Filter Cartridge, PTFE Filter Cartridge, PVDF Filter Cartridge, GF Filter Cartridge, SS Filter Carridge |

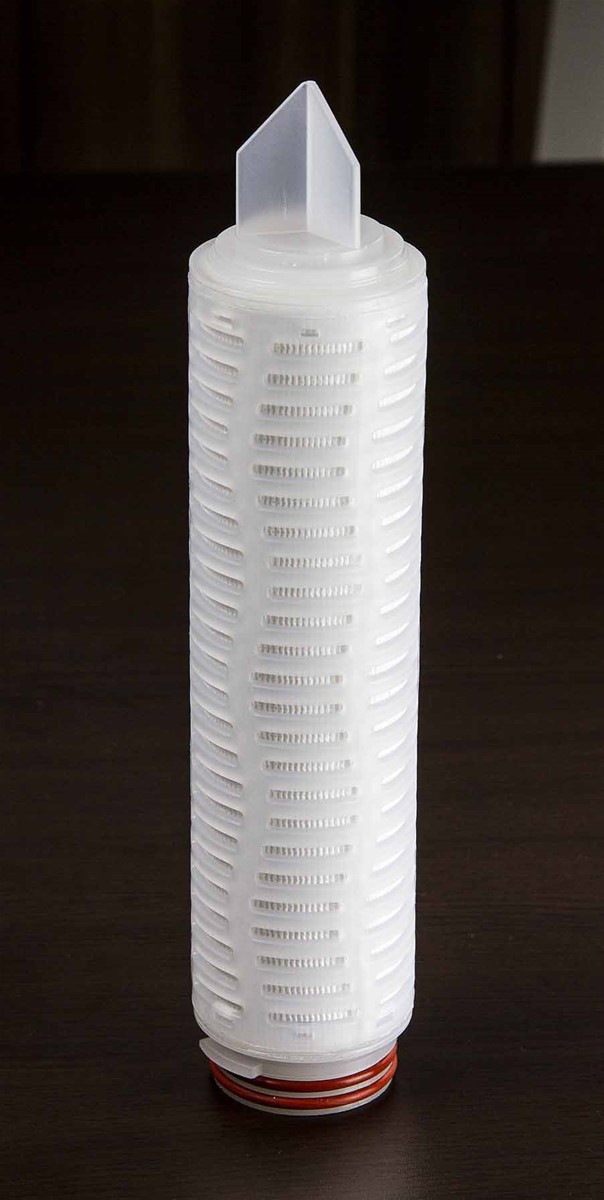

PTFE Pleated Filter Cartridge
| FOB Price: | 20.00 - 30.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece/Pieces per Month |
| Shipping: | Port:Shanghai/Ningbo |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | Carton packaging |
Quick Details
- Model Number: PTFEFC
- Brand Name: Tanvi
- Material: PTFE
- Retention Rating: 0.1,0.22,0.45,1.0,3.0,5.0micron
- Length: 2.5 to 40 inches
- Max.Working Temperature: Less than 90 centigrade
Specifications
Specification(10″PTFE pleated cartridge)
Material
Filter membrane
PTFE membrane
Diversion layer
PP fiber or screen fabric
Housing
PP
Inner support
PP or PP with stainless lining
Dimension
OD
Φ68mm Φ69mm
ID
Φ32mm
Length
2.5～40＂
Seal Ring
Silicon, EPDM, Nitrile, Fluorous, Fluorous with PTFE
Retention Rating
0.1, 0.22, 0.45, 1.0, 3.0, 5.0μm
Gas
0.01μm
Effective Area
0.65m2
Operation Condition
PH value
1～14
Normal Working Temperature
≤65
Max.Working Temperature
90℃, △P≤0.10Mpa
Max. Differential Pressure
25℃, forward 0.42Mpa, back 0.21MPa
Sterile condition
121±2℃ steam for 30min/once or sterile cabinet for 30min/once and recycle 200 times
Educt
Endotoxin
＜0.25EU/ml
Extractive
＜0.03g/10＂cartridge
Electronic grade
105 grades purify workshop+sterile compressed air purge+ 18M ultra-purify water backwash+ air purge.
Pharmacy grade
105 grades purify workshop+sterile compressed air purge+ 2-stages RO purify water backwash, which meets with the GMP .
Food grade
105 grades purify workshop+sterile compressed air purge+purify water backwash, which meets with the FDA .
Chemical grade
Purify workshop+sterile air purge.
Water grade
Purify workshop.
PTFE mainly characteristics
l Widely chemical compatibility,bearing
l With hydromechanical design, higher efficiency
l Low initial differential pressure,long service life, low energy consumption
l 100% integrity test
l Without adhesive, safety
l No-fiber-releasing
l High temperature tolerance
