Henan Kuangshan Crane Machinary Co., Ltd.
China Manufacturer with main products: Electric Hoist, Factory Crane, Overhead Crane, Bridge Crane, Gantry Grane, Traveling Crane, Crane System, Workshop Crane |
Electro Magnet Lifter,Crane Magnet for Steel Scrap
| FOB Price: | 2,500.00 - 5,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Shipping: | 15 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Wooden box for electrical parts |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 month
- Certification: CE;GOST;ISO
- Weight: 2000KG~5000KG
- Dimension(L*W*H): 700mm,800mm,1200mm,2000mm
- Power(W): 15.6kw
- Voltage: 380V 50HZ 3P
- Model Number: MW
- Brand Name: Kuangyuan
- Production Capacity: 3000pcs
- Type: Magnetic Separator
- Condition: New
- Shape:: Circular/Round
- Duty Cycle:: 60%
- Lifting Capacity for Cast Iron:: 1900/1500kg
- Lifting Capacity for Steel Scrap:: 1100/900kg
- Rated Voltage:: DC-220V
- Electric Current:: 71.2A
- Lifting Capacity for Steel Ball:: 11000kg
- HS Code:: 85059010
- Color:: Red Crane Magnet
- Model NO.:: MW5-150L/1
Specifications

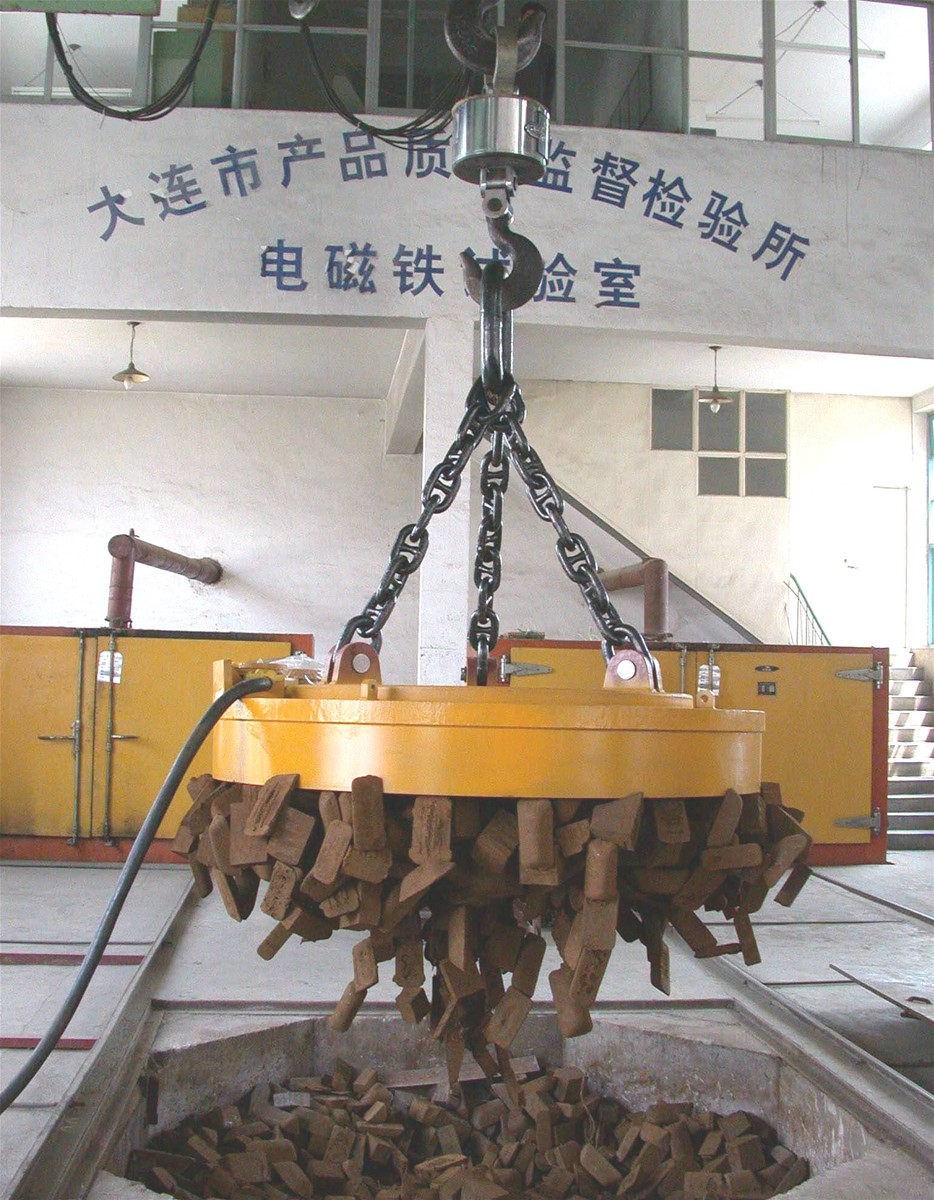

Crane Magnet Lifter For Handling Irons
MW5 Series Introduction:
Crane magnet is designed to lift and move cast ingots,steel ball,sheets,bars and scrap of ferromagnetic materials. The magnet is to be attached to cranes, excavator, and other hoisting machines at metallurgical plants, scrap yards and ship-building plants.
Main Features:
--75% or 60% Duty Cycle
--All welded heavy duty construction
--Cool operating
--Class H insulation
--Powerful deep magnetic field design
--Aluminum Coil,Copper Coil optional
--Quick disconnect lead assembly
--Voltages - 220V DC, 220/380V DC
ShenGang magnets:
· (Circular/square/rectangular), available diameters from 500 mm up to 3000 mm;
· Heat insulated magnets; They are used to move hot cargoes having surface temperature of up to 700° C;
· Magnets for any climatic requirements;
· Magnets with up to 75% duty ratio.
*Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
About Enquiry:To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V, DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about the lifting capacity).
(More details, please feel free to contact us directly. )
| Model | Electric current (A) | Cold-state power (kw) | lifting capacity (kg) cold/hot state | Mass (kg) | Overall dimension (mm) | ||||||
| steel ball | cast iron | steel scrap | A | B | C | D | E | ||||
| MW5-70L/1 | 15 | 3.3 | 2500 | 380/200 | 120/100 | 490 | 700 | 800 | 160 | 90 | 30 |
| MW5-80L/1 | 18 | 3.96 | 3000 | 480/250 | 150/300 | 620 | 800 | 800 | 160 | 90 | 30 |
| MW5-90L/1 | 26.6 | 5.9 | 4500 | 650/440 | 250/200 | 800 | 900 | 1090 | 200 | 125 | 40 |
| MW5-110L/1 | 35 | 7.7 | 6500 | 1000/800 | 450/400 | 1350 | 1100 | 1140 | 220 | 150 | 45 |
| MW5-120L/1 | 45.5 | 10 | 7500 | 1300/1000 | 600/500 | 1700 | 1200 | 1100 | 220 | 150 | 45 |
| MW5-130L/1 | 54 | 12 | 8500 | 1400/1100 | 700/600 | 2010 | 1300 | 1240 | 250 | 175 | 50 |
| MW5-150L/1 | 71.2 | 15.6 | 11000 | 1900/1500 | 1100/900 | 2830 | 1500 | 1250 | 350 | 210 | 60 |
| MW5-165L/1 | 75 | 16.5 | 12500 | 2300/1800 | 1300/1100 | 3200 | 1650 | 1590 | 370 | 230 | 75 |
| MW5-180L/1 | 102 | 22.5 | 14500 | 2750/2100 | 1600/1350 | 4230 | 1800 | 1490 | 370 | 230 | 75 |
| MW5-210L/1 | 129 | 28.4 | 21000 | 3500/2800 | 2200/1850 | 7000 | 2100 | 1860 | 400 | 250 | 80 |
| MW5-240L/1 | 154 | 33.9 | 28000 | 4800/3800 | 2850/2250 | 9000 | 2400 | 2020 | 450 | 280 |
90 |
