Guangzhou Tuna Internatioanl Trade Co., Ltd.
China Manufacturer with main products: CNC Tool System, Hard Alloy Product, CNC Cutting Tool, CNC Blade, Drill, Coating System Equipment |

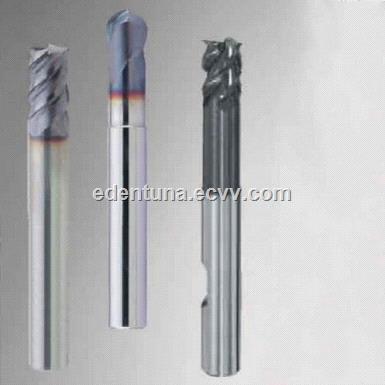

High hard alloy cutter coating 60 degrees
| FOB Price: | 1.00 - 100.00 USD/Piece |
|---|---|
| Supply Ability: | 20,000 Piece/Pieces per Month |
| Shipping: | 1week once confirmed the order |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Jiangxi in China |
| Packaging Details: | Plastic boxes inside and cartons outside; or based on the customers' requirements. |
Specifications
Quick Details
Place of Origin: China (Mainland)
Model Number: HX6060
name:High hard alloy cutter coating 60 degrees
Milling cutter diameter: 3 ~ 20 mm
Cutter length: 50 ~ 150 mm
Suitable for processing; HRC70 under all kinds of steel
| Product parameters: | ||||||||
| d1(mm) | z | Vc(m/min) | Fz(mm) | ap(mm) | ae(mm) | N(min) | Vf(mm/min) | Q(an'min) |
| 3 | 4 | 150 | 0.008 | 4.5 | 0.1 | 15915 | 510 | 3 |
| 4 | 4 | 150 | 0.01 | 6 | 0.1 | 11935 | 475 | 4 |
| 5 | 5 | 150 | 0.014 | 7.5 | 0.1 | 9550 | 670 | 5 |
| 6 | 6 | 150 | 0.016 | 9 | 0.1 | 7960 | 765 | 6 |
| 8 | 6 | 150 | 0.022 | 12 | 0.1 | 5970 | 790 | 8 |
| 10 | 6 | 150 | 0.028 | 15 | 0.1 | 4775 | 800 | 10 |
| 12 | 6 | 150 | 0.032 | 18 | 0.1 | 3980 | 765 | 12 |
| 16 | 6 | 150 | 0.044 | 24 | 0.2 | 2985 | 790 | 16 |
| 20 | 8 | 150 | 0.054 | 30 | 0.2 | 2385 | 1030 | 20 |
| 3 | 4 | 120 | 0.008 | 4.5 | 0.1 | 12735 | 410 | 3 |
| 4 | 4 | 120 | 0.01 | 6 | 0.1 | 9550 | 380 | 4 |
Features:
1. DURO -s coating has improved in ultra-high speed machining of high temperature resistance, wear resistance;
2. The coating is very smooth, which can reduce the frictional resistance when cutting;
3. The high hardness of HM/MG10 utrasmall particle series of cemented carbide substrate, can control the CPS in the ultra-high speed machining micro plastic deformation of metal, improve durability;
4. Unique design of cutting tool status quo of both cutting clearance is smooth and high rigidity of tools;
5. Flat cutter blade to ensure design, improve the resistance to cracking of a tool, prolong life.
Specifications
1. Humanized design and multi-purpose 2. Unique and technical structural design
3. Longevity and cost effective
Application: Cylindrical lathe cutting, Cutting off and Turning off
