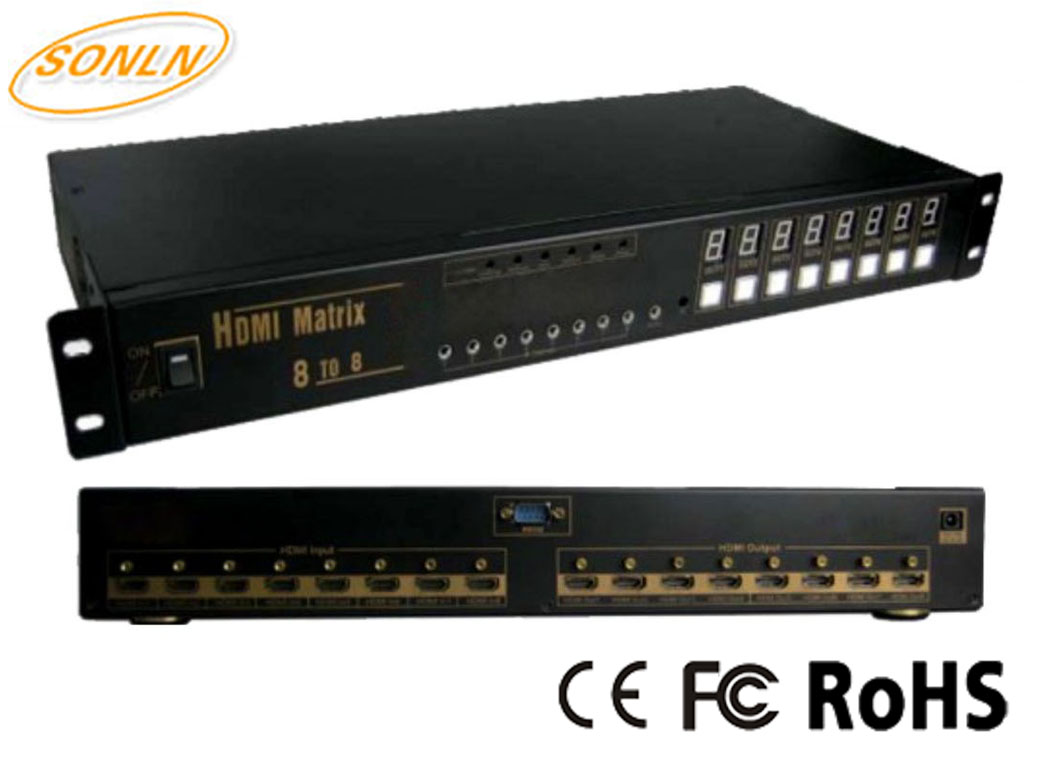

8x8 Matrix for HDMI 1080P 3D with IR

Specifications

Introduction:
HDMI Matrix host system used the advanced large integrate circuit matrix switch technology and computer control technology, it can gave the user eximious holistic function, it has self-contained video/audio matrix switch function, can display the image and voice with arbitrary HDMI source on arbitrary HDMI sink.

Matrix system has beautiful appearance, is suitable for every HDMI Devices, it can install for airport, bank, hotel, prison, port, speed way, supermarket, factory and modern building etc.

Features:
⊙ plug-industrial chassis, independent input and output cards, one   card 2-way, flexible and reliable.
⊙ off-site protection.
⊙ dual power input, mutual backup, you can plug live, work and reliable.
⊙ with RS232 interface, the remote computer operation.
⊙ Auto EDID, the EDID information for all input automatically synchronized to first output display unit of the EDID.
⊙ LED indicates the input signal is lost.
⊙ compatible HDMI1.3, supporting HDCP.
⊙ support DeepColor highest 36bit.
⊙ front panel LCD display, independent key operation.

⊙ Support infrared remote control.

Specifications:
⊙ HDMI input &output compatible HDMI1.3.

⊙ ≤ 8 of inputs HDMI.
⊙ ≤ 8 of outputs HDMI.

⊙ HDMI pixel rates clock frequency beyond 165Mpix/second

⊙ TMDS output clock up to 250MHz

⊙ Supports 24, 30 & 36‐bit pixel video modes

⊙ Supports 4:4:4 and 4:2:2 data input formats.

⊙ Output jitter (single channel input only) (peak-to-peak) <36ps

⊙ Crosstalk jitter with 1 channel (peak-to-peak)<37.2ps

⊙ Output return loss (40 MHz to 2.5 GHz)<15dB

⊙ Input return loss (40 MHz to 2.5 GHz)<15dB
⊙ Single signal bandwidth < 3.0Ghz.

⊙ HDMI Interface Type A 19pin HDMI Interface.

⊙ HDMI input line length ≤ 10 meter

⊙ HDMI output cable length ≤ 10 meter
⊙ RS232 control line length ≤ 15 meter
⊙ Infrared control distance ≤5 meter

⊙ Power consumption <60W

⊙ Humidity <95% RH

⊙ Operating temperature 0 ℃ - +45 ℃

⊙ MTBF> 40000 hours
⊙ Communication Interface RS-232, 9600bps, 8, n, 1
⊙ Dimensions 437 (Width) ╳ 344 (deep) ╳ 177 (high) mm (1U)
⊙ Machine weight 10kg
⊙ Power input AC 220V/50Hz ± 10%


Installation:

In order to ensure reliable use of matrix and the safety of personnel in the installation and maintenance please observe the following:
1. Winter and spring is very easy to generate static electricity season, inadvertently causing damage to the chip, hoping to pay attention to static electricity problems. Strengthen the electrostatic protection.
2. All machines connected with the matrix to be common ground, to prevent differences in ground potential burn machine.
3. Input signal amplitude is not greater than the nominal rate. Magnitude greater than the nominal input, machine safety can not be guaranteed.
4. Both input and output impedance of the machine to meet the 100 Ohm differential impedance, the output load can not be shorted.
5. Be sure to in the following matrix before the power is off:
(1) Remove or reinstall any component matrix;
(2) matrix is disconnected or re-connected to any electrical plug or other connection.
6. Matrix should be installed in the ground to ensure that the power cord grounding good, do not use two-wire power plug, ensure that the matrix input power is 220V ± 10%, 50Hz AC.
7. Matrix AC 220V high-voltage parts inside, do not open the cabinet to avoid electrical shock hazard.
8. Matrix should be installed in severe electromagnetic radiation away from the place.
9. Matrix should be allowed to work in a well-ventilated to prevent overheating and damage to the machine.
10. Closed when not in use for a long time the power matrix.
11. Non-professionals without permission, please do not attempt to disassemble the matrix chassis, Do not attempt to repair, so as to avoid accidents or increase the extent of damage matrix.
