Standard Type Coating Thickness Gauge AC-112A/AS
| FOB Price: | 500.00 USD/Piece |
|---|---|
| Payment Terms: | T/T, Western Union, Other, paypal |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Portable platstic case |
Quick Details
- Model Number: AC-112A/AS
- Brand Name: AM
- Resolution: 0.1 um (0~99.9um)/1 um (over 100um)
Specifications
Product Description

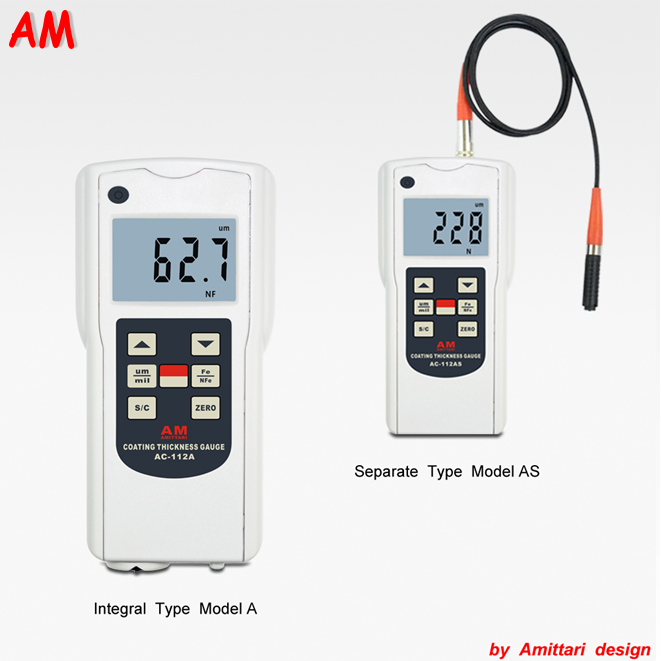

Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can
get continuous, good repetitive and precise measurements. Separate Type can provide several type probe, measure can
bemore flexibility. It is a kind of portable measuring instrument, it can quickly, no damage and precise coating,
coating thickness measurement.
Product Parameters
|
Measuring Range |
0~1250 um |
|
0~50mil (other range may be specified) |
|
|
Resolution |
0.1 um (0~99.9um)/1 um (over 100um) |
|
Accuracy: |
1~3%n or 2.5 um or 0.1mil (Whichever is the greater) |
|
Minimum Measurement Area |
6 mm |
|
Minimal Surface |
F Type convex1.5 mm / concave 25 mm |
|
NF Type convex 3 mm / concave 50mm |
|
|
Operating Condition |
Temp: 0°C~50°C |
|
Humidity: <95% |
|
|
Size |
140x70x30 mm |
|
Power Supply |
4x1.5vAAA Um-4 Battery |
|
Weight |
130 g (Not including batteries) |
Product Accessories
|
Standard Accessories |
Main Unit |
|
Calibration Foils |
|
|
Substrate ( Iron ) |
|
|
Substrate ( Aluminium ) |
|
|
Carrying Case |
|
|
Operation Manual |
|
|
Optional Accessories
|
USB data output |
|
Bluetooth data output |
Buying Guide
When you choose the model number of Amittari instrument, the default is standard delivery. If you need other optional accessories, please tell our customer -service worker.
The following three items are basic optional accessories choices
Standard Accessories+USB data output
Standard Accessories+Bluetooth data output
Bluetooth Accessories
Amittari instruments generally can be supplied with Bluetooth? data output function ( except few instruments ) . As Bluetooth? data output is included in optional accessories, not standard delivery, it needs to be indicated when choose 10 meters to 100 meters distance can be chosen.Please kindly contact with the customer-service worker if you need Bluetooth? data output.
