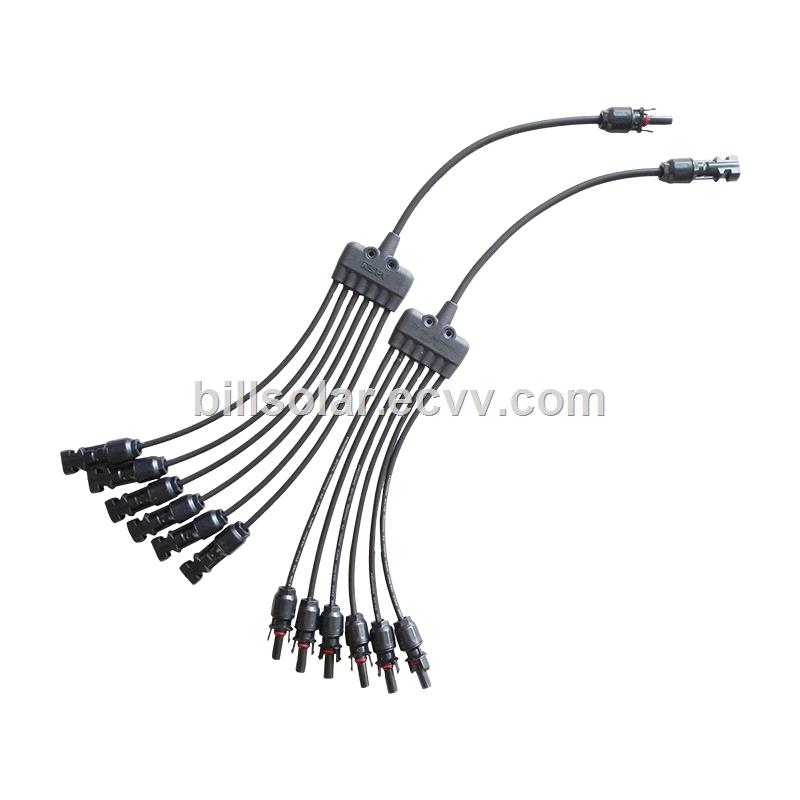

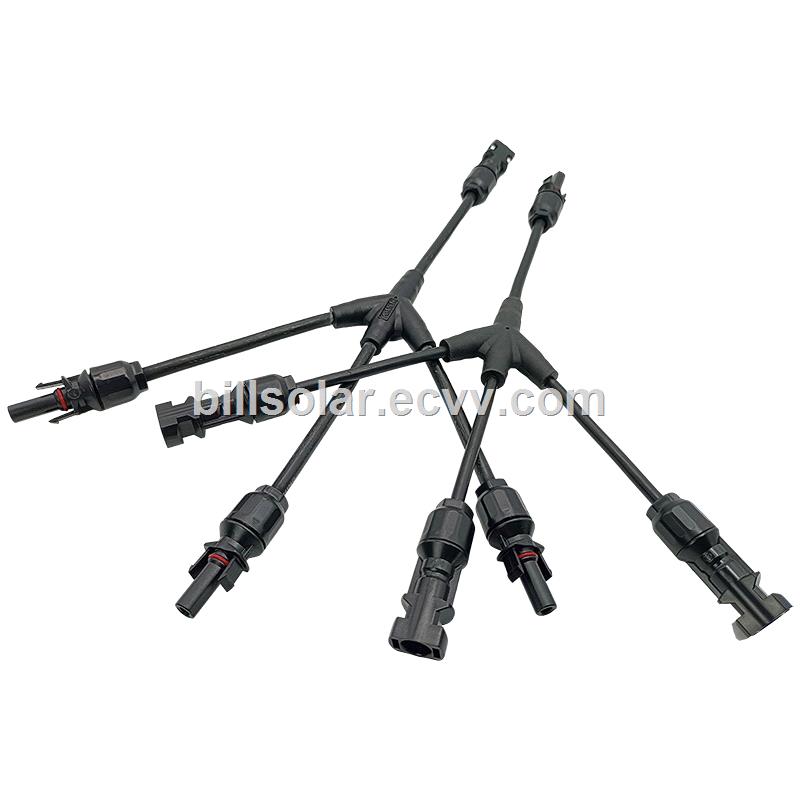

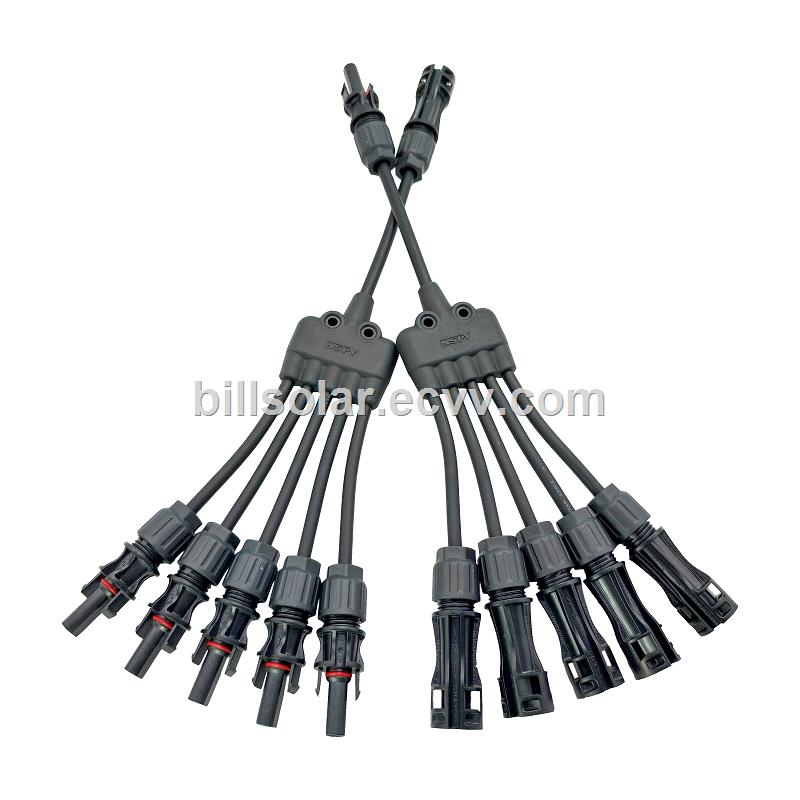

2in1 3in1 4in1/2 5in1 6in1 PV Cable Harness Solar Panel Parallel Connectors Solar y Parallel Connector Cable Assembly

FOB Price:	8.50 - 25.50 USD/Piece
Supply Ability:	35,000 Piece(s) per Month
Shipping:	Express
Payment Terms:	T/T

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard packing

Quick Details

Application: Electronic
Brand Name: NSPV
color: Black/red
Circuits/poles/pins: other
Language: English
Model Number: 2in1 3in1 4in1 5in1 6in1
solar 2in1, 3in1, 4in1, branch cable assembly type: 2in1,3in1,4in1,5in1,6in1

Specifications

2in1, 3in1, 4in1, 5in1, 6in1 solar cable assembly from NSPV

Insulation Material	PPE/TPE/PA	Flame Class	UL94-V0
Rated Impulse voltage	16KV	Material RTI	110℃(IEC)
Rated Voltage	1500VDC	Installation type	Outdoor,UV resistant(F1)
Test Voltage	8kV(50Hz 1min.)	Connecting system	Crimp connection
Type Contact resistance	≤ 0.25 mΩ	Ambient temperature range	-40℃+85℃(IEC)
Contact Material	Copper,Tin Plated	Pin Dimensions	OD.4.0
Degree of protection	IP68(1m,1H)	Suitable Cable cross section	1.5~10mm2/16~8AWG
Safety Degree	II	Regulatory approval	TUV/CE(IEC62852:2014)

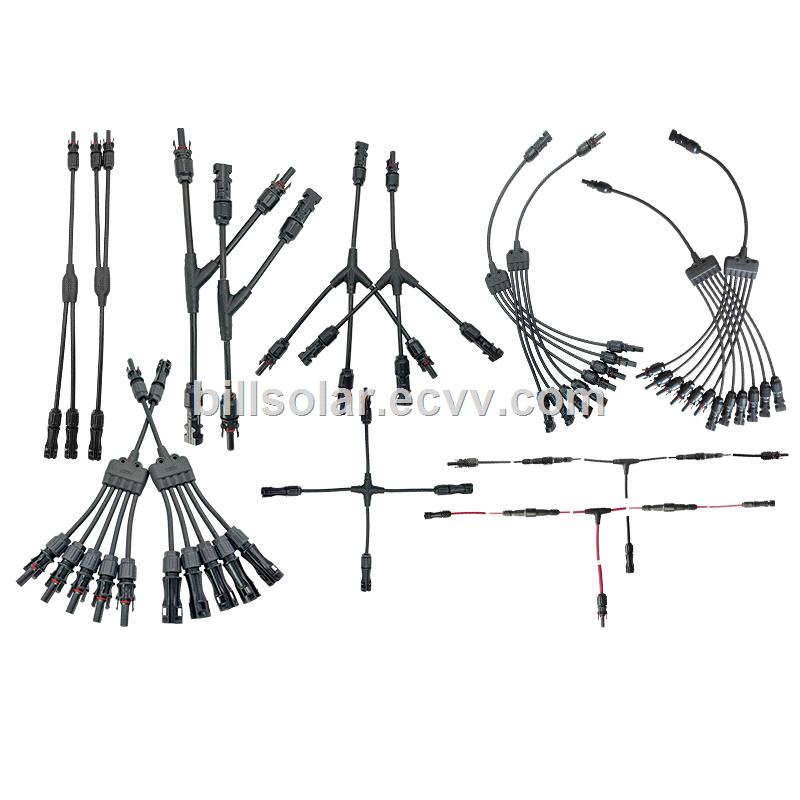

2in1 3in1 4in1 5in1 6in1 PV cable harness solar panel parallel connector solar y mc4 parallel connector wire assembly
