Shaanxi Kaishan Mechanical & Electrical Co., Ltd.
China Manufacturer with main products: Air Compressor, Drill Machine, Drill Rig, Drill Bits |

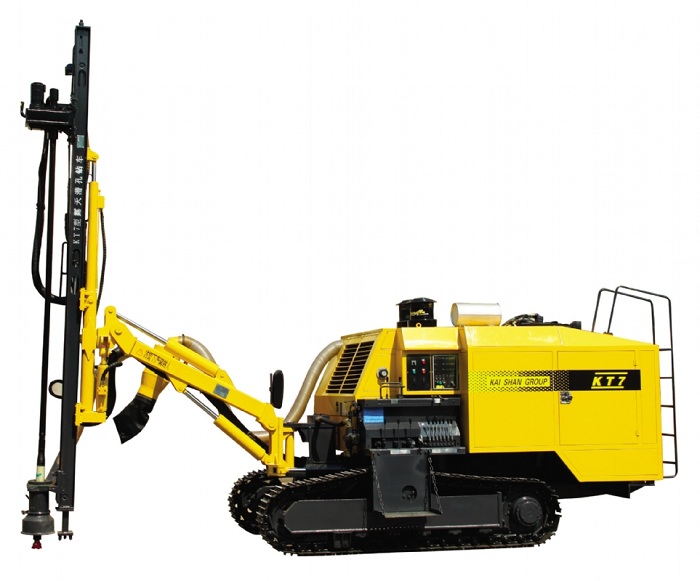

Sell KT7 monolithic high pressure DTH crawler drill
| FOB Price: | 72,000.00 - 88,000.00 USD/Set |
|---|---|
| Supply Ability: | 2,000 Set/Sets per Month |
| Shipping: | FOB,20-30 DAYS |
| Payment Terms: | L/C, D/A, D/P, T/T |
Related products from verified members
| Export Markets: | South America, Southeast Asia, Mid East, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | wooden case, or provide package in accordance with your request |
Specifications
Specifications
KT7 specification
Rock Hardness
f=6-20
Rotary Torque(N*m)
1900
Hole diameter(mm)
90-105
Maximum Force(N)
25000
Hole deep
30
Carriage lifting angle
↑28° ↓42°
Walking speed (Km/h)
0-2.5
Carriage pitch angle
129°
Climbing capacity
30°
Carriage swing angle
→38° ←35°
Ground clearance
380
Sliding frame lateral swing angle
→4° ←89°
Machine power( Kw)
180
Drill arm swing angle
→39° ←60°
Diesel
YC6A
Frame leveing angle
↑10° ↓9°
Screw machine exhaust volume
(m3/min)
13
Once advancing length(mm)
3000
Screw machine exhaust pressure
(Mpa)
1.7
Compensation length (mm)
900
Dimension(L×W×H)(mm)
8000×2260×2800
Impinger
KQG35A(Match HD45S)
Weight(Kg)
9500
Drill
Φ64×3000mm
Rotary Drilling(r/min)
0-120
Dust collecting mode
Hydraulic cyclone flow
1. Compact structure.
2. Good integrity.
3..Convenient movement
Advantage:
Has a strong climbing ability and adaptive to the rough pavement;
Adapt to a wide range, can be furnished with various types of DTH impactor,
can drill different diameter and different depth in variety of position and angle;
Also can be furnished with dry or wet dust collector when working, effectively
reduce dust pollution to the environment, and protect the worker
Anti-jamming system, safety operation.
Shaanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a beautiful ancient City - Xi'an. Since founded more than 10 years ago, our company has accumulated much experience in the business of air compressors and drilling rig machines. we are the sole agency in northwest district of China for Kaishan group.
Kaishan group is a state-level large scale enterprise in China, which has been listed among the five industries of Zhejiang Provincial government, the 958 Technology Catching-up Plan and the key enterprises by Zhejiang provincial government. The group is the civilized enterprise of provincial level and contract abiding and trustworthy enterprise of state level.
By far, Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 20 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries.
Please contact me by dialling me or sending e-mail to me if you are intersested in our products, and we will provide you products with high quality, competitive price and excellent after-sale services.
