china manufacturer water pilling concrete plants

FOB Price:	100,000.00 - 500,000.00 USD/Unit
Supply Ability:	100 Unit/Units per Month
Shipping:	guangdong qingdao
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Related products from verified members

Autoclaved aerated concrete plant (Tianyuan Bra...

Price:1,000.00-1,000,000.00 USD/Set

Min. Order:1 Set
Concrete Mixing Plant 180cbm/hour

Price:

Min. Order:1 Set
Mobile Concrete Mixing Station

Price:

Min. Order:
Stationary Batching Plant

Price:

Min. Order:1 Set
Automatic aggregate batching machine PLD series...

Price:

Min. Order:
Concrete Batching Plant Mixer Machine (PL1600-4...

Price:

Min. Order:
Mini Portable Concrete Plant (YHZS50)

Price:50000.00-80000.00 USD/Set

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	container export standard

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1-2years
Certification: ISO CE
Weight: 46T
Dimension(L*W*H): 33.8mX14.8mX10.8m
Power(W): 110kw
Model Number: HZS50
Brand Name: haomei
Power Type: Electric
Condition: New
Capacity:: 50m3/h
Main Mixer:: JS1000
Power of Main Mixer:: 37kw
Feeding Mode:: Lifting hopper
Mixing Time:: 60s
Max Aggregate Size:: 60/80mm
Discharging Height:: 3.8m(for customers choice)
Control Mode:: Automatic Control System/Central Console Control System
Payment: T/T L/C Western union

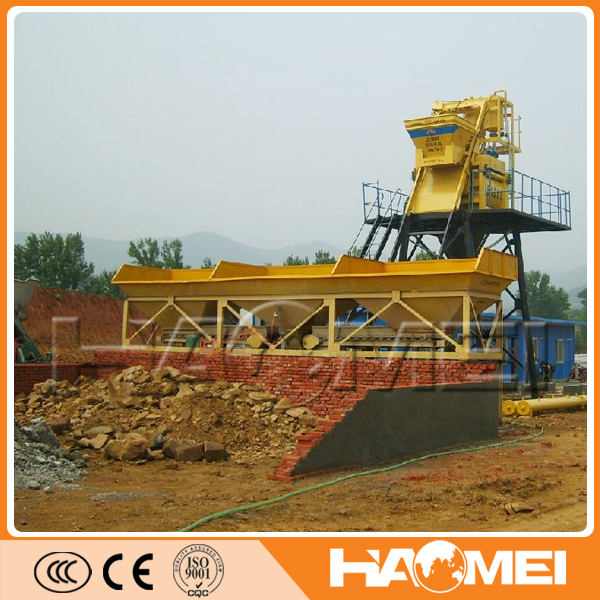

Name: Cement Concrete Mix Plant HZS50

Specifications

Haomei Industrial Co.,LTD is located in the famous machinery capital of Zhengzhou, China. We are professional machinery products manufacturer-featuring a wide range of quality mobile concrete mixer, concrete batching plant, mobile concrete plant, concrete pump, truck pump with boom, truck mixer, etc. We adhere to the policy of "QUALITY FIRST AND INTEGRITY WINS"to cooperate with clients from all over the world. Seeking for long-term relationship and mutual benefit is our unstoppable goal.

Our company covers over 100 acres with workshop area of more than 50,000 square meters has 5 branches. We have over 1000 technical workers and 80 engineers equipped with advanced producing and inspecting machines with strict management. We focus greatly on our products' quality and with such quality our products have been receiving admiration by clients from over 30 provinces in China and royal clients from overseas.

Main features of concrete batching plant factory

? Adopt combined structure and modular unit, convenient to install and remove;

? Mixing and aggregate lifting system adopt JS1000 double-shaft compulsory concrete mixer which offers high quality and efficient mixing;

? Aggregate batching system adopts PLD1600 concrete batcher which offers efficient and accurate measurement;

? Powder lot is electronic measured, highly accurate dosing;

?Water is flow-metering, simple and practical, highly accurate dosing.

Technical parameter

Main technical data
Type	HZS50
Productivity in theory	50m3/h
Mixer	JS1000
Maximum aggregate diameter	80mm
Aggregate bins volume	3X13m3
Aggregate feeding method	Conveying belt
Batcher	PLD1600
Aggregate weighing	3000kg ±2%
Cement weighing	600kg ±1%
Fly-ash weighing	400kg ±1%
Water weighing	400kg ±1%
Additive weighing	50kg ±1%
Overall dimension(during operating) (LXWXH)	33.8mX14.8mX10.8m
Total power	110kw
Total weight	46Ton
Discharging height	3.8m
Control	Fully automatic
Cement silo(optional)	Required on clients' demand, 50T,100T available
Cement screw(optional)	Each cement silo equipped with one φ219 screw

Why dose the customs choose our HAOMEI machinery products?

Specialize on manufacturing only concrete batching plants.
Commitment to serving clients as their solution partner.
Continuous R&D activities to assist haomei in maintaining its leadership in the industry.
Highly experienced in-house engineering team offering creative, flexible and tailor-made solutions for special demands, design requirements, extreme weather conditions and site restrictions.

What's the quality of your products?
Rest assured that our products has got ISO,CE certificated.We have the professional team for the products' study and development.

When do you deliver the goods?
20 days after the deposit.

What's the tade terms?
FOB,CIF.

Our customer are from many countries , such as Egypt , Malaysia , Dubai , Uzbekistan . Not only did they bought the high quality products but also the good after-sale service. So, buying our HAOMEI is your non-regret choice . What's more , HZS50 concrete batch plant is on sale with a competitive price and I believe you will not miss this chance.We sincerely hope we can establish business relationship between us and welcome you visit our factory.
