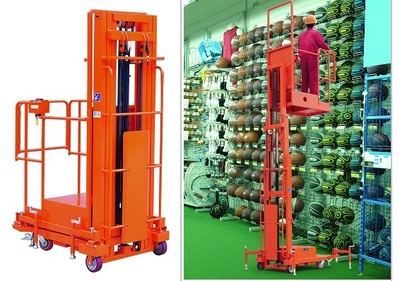

Order Picker CQD0.75-2.7

Supply Ability:	500 Unit/Units per Month
Shipping:	within 10 days
Payment Terms:	T/T, Western Union, MoneyGram

Inquiry Now

Related products from verified members

Popular Products 50D(B)/48-48AW Normal Close Si...

Price:7.50-12.00 USD/Piece

Min. Order:10 Pieces
Telescopic Forklift

Price:

Min. Order:
Hot sale Japan Used Komatsu 3ton Forklift

Price:15,000.00-20,000.00 USD/Set

Min. Order:1 Set
Forklift Seat (BF5-3)

Price:

Min. Order:

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hubei in China

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Model Number: CQD0.75-2.7
Brand Name: ruihua

Specifications

1. Model Number: Order Picker CQD0.75-2.7
2. Capacity: 750kg
3. Max.Lifting Height: 2700mm

Model		Unit	CQD0.75-2.7	CQD0.3-3.0	CQD0.3-2.7
Capacity		kg	750	300	300
Max. lifting height		mm	2700	3000	2700
Min. platform height		mm	515	450	450
Platform size (LxW)		mm	700*800	600*800	600*600
Max. lifting speed		m/min	9	12	12
Max. lowering speed		m/min	7	10	10
Min.turning radius		mm	1675	1250	1250
Wheel outer diameter		mm	180	125	120
Outer diameter		mm	180	150	150
Power		kw	1.5	1.5	1.5
Working voltage		V	12	12	12
Overall size	Length	mm	1600	1314	1314
	Width	mm	930	760	760
	Hight	mm	1750	1900	1750
Max. height		mm	3440	4340	4040
Net weight		kg	480	300	293

1. Designed for such narrow space as warehouses, workshops, elevators, supermarkets,
subway station, etc and also meet the needs of certain aerial work; Hydraulic lifting
pumps with high power and good quality;
2. Low gravity center provides good stability.
