Home >Products Catalog > Patient Monitor > Clinical Diagnosis 3 Channels Digital Electrocardiograph ECG Monitor (3303W)

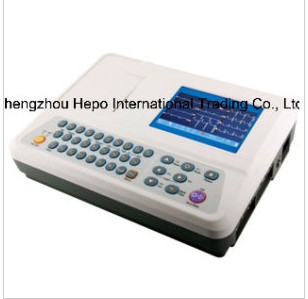

Clinical Diagnosis 3 Channels Digital Electrocardiograph ECG Monitor (3303W)

FOB Price:	600.00 - 1,500.00 USD/Unit
Supply Ability:	1,000 Unit/Units per Month
Shipping:	8 days
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	Standard Packaging

Quick Details

Model Number: 3303W
Type: Medical Centrifuge
Digital EEG/ECG/EKG/EMG/VCG: Imaging Diagnostic Equipment
CE, SGS, ISO13485: Manual / Auto / R-R Rhythm / Storage

Specifications

Product Description

CE Mark Clinical Diagnosis 3 Channel Digital Electrocardiograph ECG 3303W

Features :
Portable delicate design and soft alphanumeric keyboard operation, very convenient to use.
Accurate pulse pace identification function and excellent auto-interpretation function
High accuracy digital filter, auto baseline adjustment
12 leads synchronously acquisition and display; Record mode : 1ch+, 3ch, 3ch+
Working modes: Manual / Auto / R-R Rhythm / Storage
800×480 graphic, 5 inch color LCD to display detailed ECG information
250 cases storage and replay (SD card storage is optional)
Built-in rechargeable Li-ion battery supports continuous work for about 4 hours.
Real-time freeze function
80mm*20m high resolution thermal printing
Rs232 and USB interface ( USB disk storage,laser printer printing , PC ECG software are optional )
Language : English, Chinese, French, Italian, Spanish, Russian
300mm*230mm*75mm, 2.8kgs

Technical Specification:

Lead	Standard 12 leads	Time constant	≥3.2s
Lead acquisition	12bit/1000Hz (synchronously 12 leads)	Frequency response	0.05~160Hz(-3db)
Work mode	Man / Auto/Analysis/Storage	Noise level	<15μVp-p
Filter	AC Filter : 50Hz / 60Hz EMG Filter : 25Hz / 45Hz Anti-Drift Filter : 0.15Hz (Adaptive)	Inter-channel Interference	≤0.5mm
CMMR	≥120dB (with AC FILTER)	Sensitivity	2.5,5,10,20, 40, Auto (mm/mV)
Input circuit	Floating; Protection circuit against Defibrillator effect	Recording mode	1ch+,3ch,3ch+ Default Man. Mode is 3ch format Default Auto. Mode is 3ch+ format
Input Impedance	≥50MΩ	Paper speed	6.25,12.5,25,50mm/s(±3%)
Input circuit current	≤0.05μA	Paper	80mm *20m Roll paper
Patient current leakage	<10μA	Communication	RS232/ USB port
Calibrating voltage	1mV±2%	Power Supply	AC 110-230V(±10%),50/60Hz(±1Hz),40VA DC Built-in rechargeable battery,14.4V(2000mAh)
Voltage tolerance	≥±500mV	Dimension/Weight	300mm×230mm×75mm/2.8Kg

Package:
1 unit / small carton : 40cm*34cm*22cm, net weight 2.8kgs, gross weight 5kgs
4 units / big carton : 70cm*41cm*46cm, net weight 12kgs, gross weight 22kgs
