Supply insulated casing temperature refractory casing

Specifications

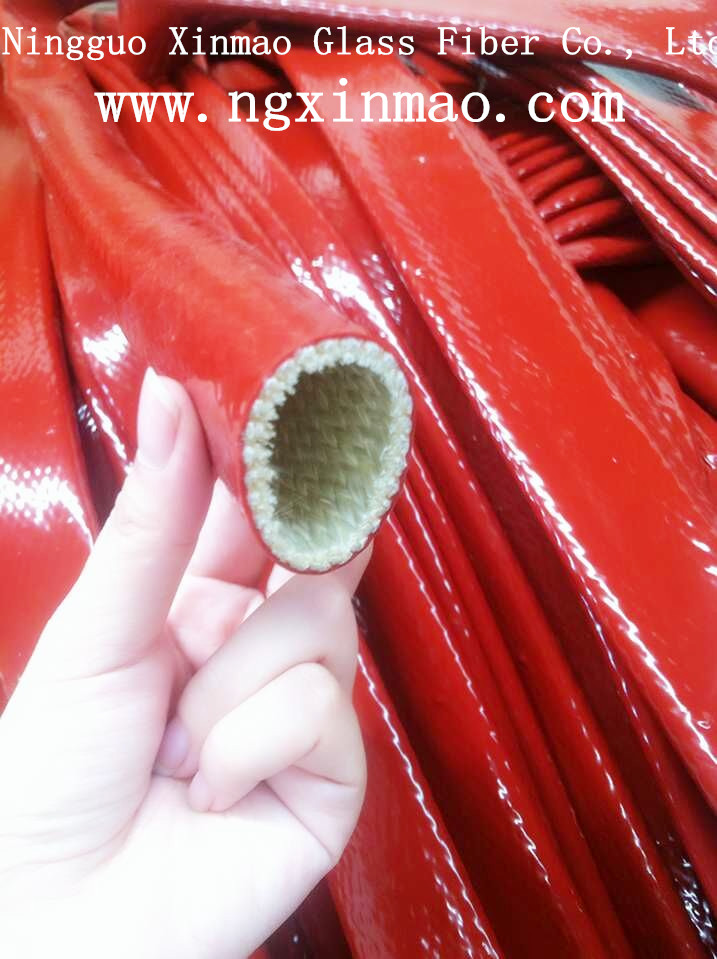

Xinmao insulated casing temperature refractory casing is made of high quality woven E-glass fiber yarn into a tube, the silicone resin coated with organic heat through high temperature. A flame retardant, insulation, thermal insulation, anti-electric, soft, and other properties. Insulated casing temperature refractory insulation casing high temperature cable insulation protection casing is mainly used in steel mills, smelters, glass, fire-fighting equipment, large venues and other places of high temperature swing.


Product descriptions

High temperature fire casing performance test:

   High temperature bend test

Surface without cracking or film aging skin without stripping phenomenon after heating at a constant temperature of 260  oven for 48 hours

    Low temperature folding test

After heating at a constant temperature of -70  oven for 1 hour surface without cracking or peeling produce no surface coating.

    Film coated test

After continuous use by a thermostatic oven off or dissolve the test no surface phenomenon.

    Flammability Test

No spontaneous combustion retardant and self-extinguishing (according to UL "VW-1" and CSA "HFS" test)

     Temperature Test

(2000hr) 260  no abnormal heating tests are normal

(30sec) 1200  heating test glass fiber intact

   Flame retardancy test

Burning rate of not less than 45s / 25mm--- SRG-1-7kv SRG-1-4kv, (motor insulation grade can reach higher than the H C grade)

Normal minimum dielectric breakdown voltage 7.0 kv / min 4.0 kv / min

Normal average dielectric breakdown voltage 10.0 kv / min 7.0 kv / min


Product Size

The inner diameter (mm): Φ6mm- Φ130mmabove specifications can be customized

Color: rust red, blue, black, gray, orange, etc., common in red.


High-temperature fire casing species

1. The high temperature fire a cartridge casing pipe, high temperature silicone fire tubes, glass fiber braided silicone tube fire

Generally suitable for the protection of shorter or less straight line, cable protection, automotive wiring harness, generators commonly used, after installing reliable, easy disassembly, sealing, insulation, heat, moisture is better.

2. The snap-fire casing temperature, high temperature silicone fire tubes, glass fiber braided silicone tube fire

The advantage lies in easy accessibility, no disabled when installing the device, open the cable or the like, there is fire retardant internal suture of sticky tape, just to play a role in sealing the insulating sleeve from the intermediate bonding, not affecting equipment production and saves installation time. Commonly used in large-scale smelting equipment, high temperature metal hoses are also used.

3. The winding hot fire casing, high temperature silicone fire tubes, glass fiber braided silicone tube fire

Mainly used for valves, piping and other irregular bending guard protector is a high temperature, the winding convenient, but also suitable for outdoor temperature pipeline, such as natural gas pipes, heating pipes, etc., play the role of insulation, reducing heat loss.

Company Profile

Ningguo Xinmao company has always been adhering to the "quality first, credit first" purpose, after years of hard work and continuous development, and gradually form a "high-temperature casing" for leading products, glass fiber products, self-extinguishing tube counseling business.

    The company produced high-temperature casing workmanship, high temperature casing are widely used: high temperature region of steel, automobile, shipbuilding, aerospace, metallurgy, machinery, petrochemical, chemical, military, defense, scientific research and other industries, the heating area cable , fluid lines, rolling mill cable, tubing, cutting the sides cable, generators, electrical voltage equipment, large buildings, hydraulic systems, automotive wire harnesses and exhaust pipes, and so on industry.

    Xinmao brand's product quality and credibility of enterprises and foreign customers by the praise. From business start-up so far exported to Southeast Asia, as well as throughout the country. A warm welcome to visit the new and old customers visit guidance.
