ASTM Standard XLPE Insulated Abc Cable

Supply Ability:	100,000 Kilometer(s) per Year
Shipping:	ANY PORT IN CHINA
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Henan in China
Packaging Details:	WOODEN DRUM OR IRON DRUM

Quick Details

Conductor Material: Aluminum
Application: Overhead
Type: Low Voltage
Insulation Material: XLPE
Brand Name: TINDE
Jacket: PVC
Model Number: TINDE-1

Specifications

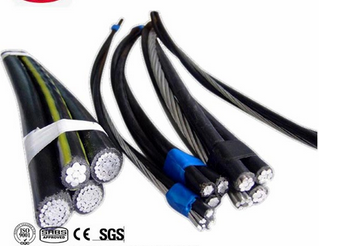

ASTM Standard XLPE insulated abc cable

Specification:

1. Cores: 1C+ 1C, 2C+1C,3C+1C, 2C,3C

2. Cross sectional area: from 10mm2 up to 300mm2, 3*25mm2+54.6mm2

3. Conductor: Aluminum

4. Insulation: PVC or XLPE/PE

5. Standards: BS 7870-5

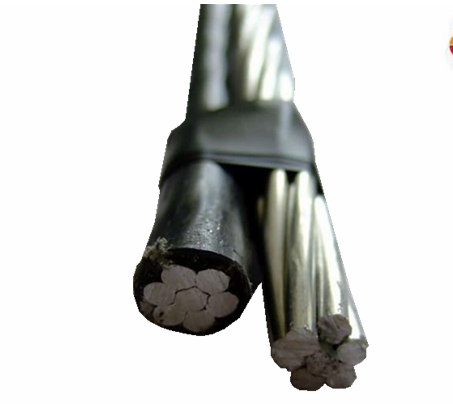

ASTM Standard XLPE insulated abc cable

Application:

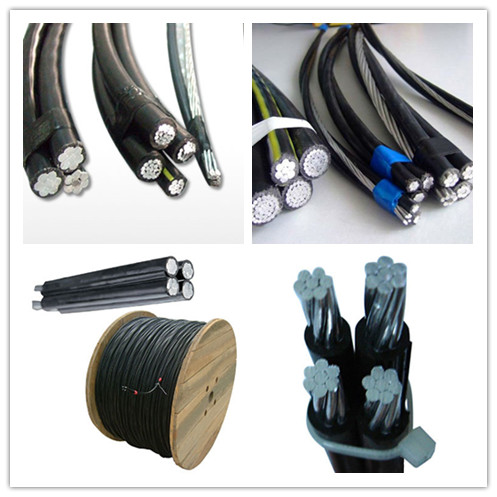

Aerial Bundled Cable (ABC cable) has characters of powertransmitting and strong mechanical. In comparison with bare wire, aerial bundled cable (ABC cable) boasts many advantages, suchas: small span in laying, higher safe reliability, better atmosphere aging resistance property. Aerial bundled cable has the priority to be used in urban and rural powertransmitting construction project.

Voltage	0.6/1kV
Cores	1, 2, 3, 4, 5, 6
Range of Nominal cross section	10 mm2 - 300 mm2
Application	A new type of aerial cable for power transmitting. It is extensively used in overhead power transmission line.
Standard	NF C 33-209, IEC, BS, SABS, ASTM
Constructions	Conductor:	Aluminium, Alloy Aluminium, ACSR
	Insulation:	XLPE, PE
Size	2 x 16 mm2	325 mm2+54.6 mm2+16 mm2
	2 x 25 mm2	335 mm2+54.6 mm2+16 mm2
	2 x 35 mm2	350 mm2+54.6 mm2+16 mm2
	2 x 50mm2	370 mm2+54.6 mm2+16 mm2
	4 x 16 mm2	370 mm2+70 mm2+16 mm2
	4 x 25 mm2	395 mm2+70 mm2+16 mm2
	4 x 35 mm2	3120 mm2+70 mm2+16 mm2
Max. Operating Temperature	90
Packing	Steel drum or as per requirement
Production Capacity	10 kilometer / day
Delivery time	10 - 15 working days
Remark	the cable can be of flame retardance, fire resistance, environment friendly or other property
