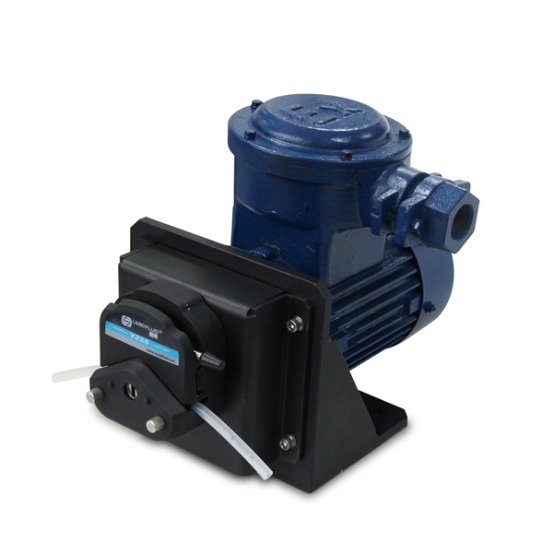

The AC explosion-proof peristaltic pump FG600S-A
FOB Price: | 980.00 - 1,900.00 USD/Unit |
---|---|
Supply Ability: | 5,800 Unit/Units per Month |
Shipping: | TNT.UPS,DHLOCS |
Payment Terms: | T/T, Western Union |
Related products from verified members
Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
---|---|
Place of Origin: | Hebei in China |
Packaging Details: | Carton&peal wool |
Quick Details
- Application: transferring dosing liquid-chemical industry
- Pressure: Low Pressure
- Fuel: Electric
- Standard or Nonstandard: Standard
- Power: Electric
- Usage: Water
- Theory: Rotary Pump
- Model Number: FG600S-A
- Brand Name: Lead Fluid
- Flow rate: 6L/min
- Speed: 600rpm
- Function: Rev. Stop, positive and negative, control, communications, and other functions
Specifications
The ac explosion-proof electric machine
peristaltic pump FG600S-A3(380V)
FG600S-A(220Vneed to design)
Function & features
1. DC geared explosion-proof motor driver, separation design of driver and converter
2. The frequency converter control, with a start-stop, positive and negative, control, communications, and other functions
3. Stepless speed regulation, adjust the resolution of 0.1 hz
4. High torque design, stable operation
5. Can be installed a variety of pump head
6. Table structure, operation and convenient to use
7. High IP55 protection grade, suitable for complex working environment
8. Suitable for high precision of the liquid transmission
9. Must be used with frequency converter
Parameters
Technical parameters |
6L/min |
Speed range |
100~600rpm |
Control function |
Transducer infinitely adjustable-speed (standard configuration without inverter motor connecting cable) |
Speed resolution |
0.1hz(corresponding speed 1.8rpm) |
Control function |
Rev. Stop, positive and negative, control, communications, and other functions |
Power supply |
3 phase 380V(AC220V options) |
consumption |
0.37KW |
Operation environment |
Ambient temperature 0℃~40℃, relative humidity<80% |
Explosion-proof level |
DIIBT4 |
IP standard |
IP55 |
Dimension |
(LxWxH)324*250*291 |
Weight |
26Kg |
Suitable pump head and tube size
Drive |
Pump head |
channels |
Tube size |
one channel flow rate |
FG600S-A |
YZ15 |
1 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
6~1700ml/min |
YZ15*2 |
2 |
13#, 14#, 19#, 16#, 25#, 17#, 18# |
6~1700ml/min |
|
YZ25 |
1 |
15#, 24# |
170~1700ml/min |
|
YZ25*2 |
2 |
15#, 24# |
170~1700ml/min |
|
KZ25 |
1 |
15#, 24#, 35#, 36# |
250~6000ml/min |
|
|
|
|
|
