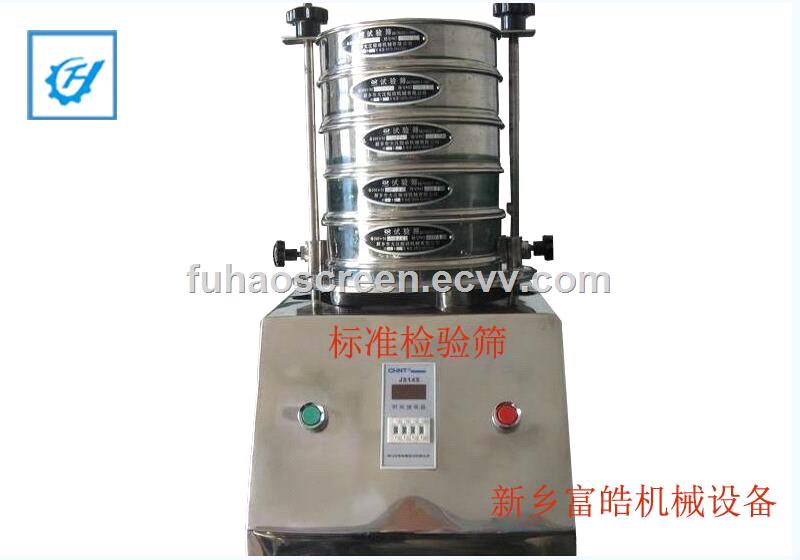

Standard Test Sieve
| Shipping: | 7-10 days after receiving payment |
|---|---|
| Payment Terms: | T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|
Quick Details
- Weight: 25kg
- Dimension(L*W*H): 360*300*736mm
- Power(W): 0.125kw
- Voltage: 220V
- Brand Name: FUHAO
- Application: Chemicals
- Condition: New
Specifications
Features of the model of standard test sieve:
1. High efficiency,smart design.
2. It has a compact structure, and it is suitable for any kinds of powders and serenity.
3. Small volume, easy to be moved.
4. Low noise, high precision, accurate mesh.
5. The products can be automatic shut down according to the electric time controller.
Product description:
Our Fuhao brand standard test sieve is incorporating the powder classification and liquid filtration. It is suitable for particles distribution analysis of grains, powder or the solids content test of the liquid in laboratory and Quality Control Department.
Standard test sieve is a kind of laboratory screening machine, also known as test sieve, sample sieve, analysis sieves, maily used in university laboratory, institute, or some internal laboratory.It is different from general vibrating screen extension, it is the national standard, the standard inspection sieve machine and standard sieve sieve box has certain standard limit.
Standard test sieve sieve frame is installed on a standard test sieve machine,it is circular, normally, there are 200 mm and 300 mm in diameter, commonly used is 200 mm, but some users have special requirements of 75 mm. Screen mesh is made up of 8 mesh to 500 mesh, mesh is larger, the smaller the hole, as a result, so according to the size of the mesh, the machine is make up of perforated plate (for smaller mesh)or metal wire woven mesh(for larger mesh), also the frame could be expressed in mm.
Item
Name
Unit
Data
1
Diameter
mm
φ200,100,75
2
sieves layer
s
8
3
Sieve fineness
mm
0.038-3
4
Noise
db
≤50
5
Feed Capacity (one-time)
g
≤200
6
Vibration Amplitude
mm
≤5
7
Motor
Voltage
V
220
Rotate Speed
r/min
1420
Power
kw
0.125
8
Size
mm
360×300×736
9
Weight
kg
25
Technical Parameter:
