Metalco Valve Co., Ltd.
China Manufacturer with main products: Gate Valve, Butterfly Valve, Check Valve, Globe Valve, Air Valve, Control Valve, Manhole Cover, Pipe Fittings |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Tianjin in China |

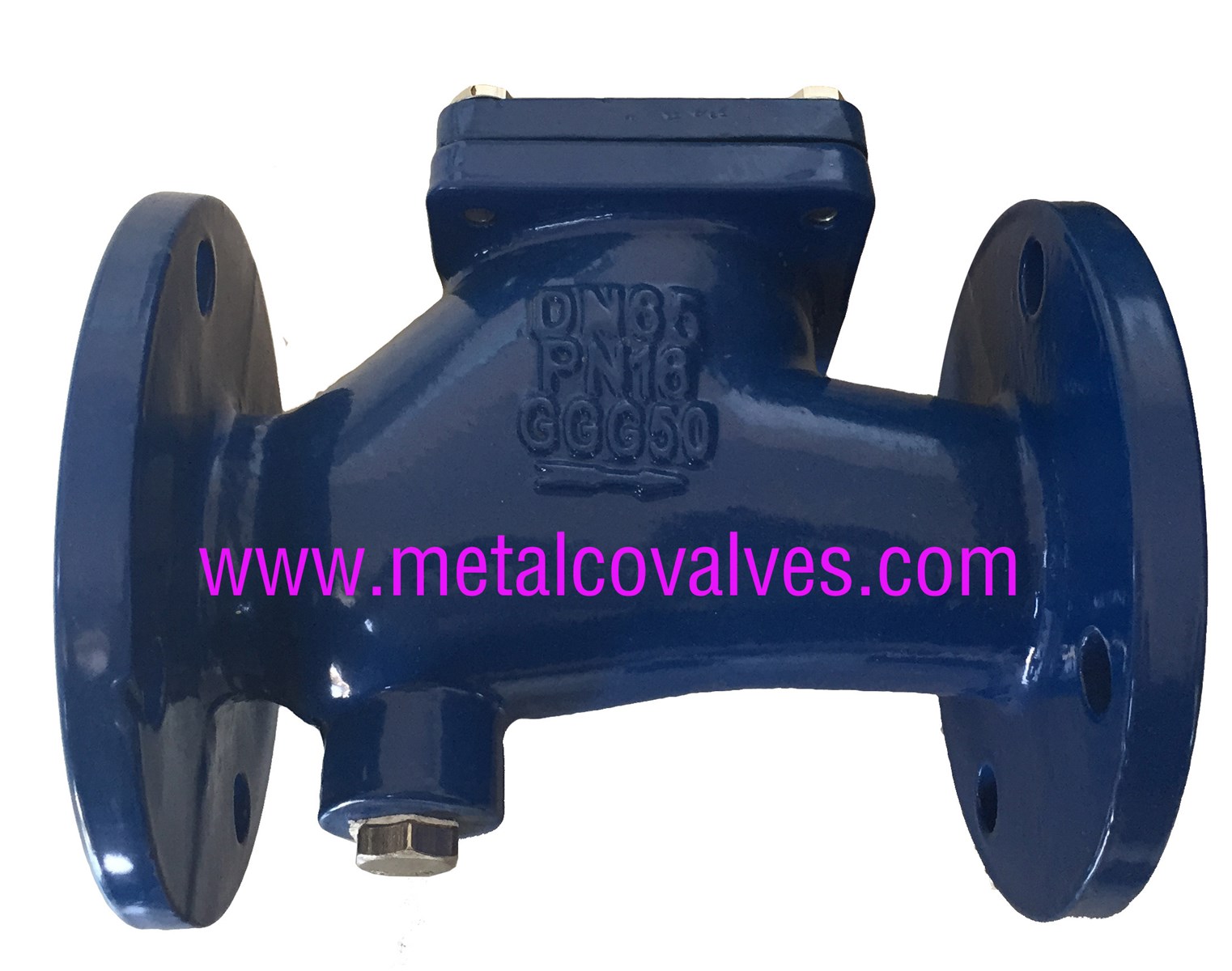

Quick Details
- Brand Name: METALCO
- Temperature of Media: Medium Temperature
- Material: Casting
- Pressure: Medium Pressure
- Standard or Nonstandard: Standard
- Model Number: HQ41X
- Media: Water
- Power: Manual
- Structure: Check
Specifications
| Face to Face | Flange End | ||||||||
| DIN3202 F6/EN1074-3 | DIN2532,EN1092-2 | ||||||||
| Main parts and materials | |||||||||
| No. | Parts Name | Material | |||||||
| 1 | Body | GGG50 | |||||||
| 2 | Ball | Carbon Steel/Ductile Iron+NBR | |||||||
| 3 | O-ring | NBR | |||||||
| 4 | Bonnet | GGG50 | |||||||
| 5 | Bolt | SS304 | |||||||
| 6 | Washer | SS304 | |||||||
| 7 | Washer | NYL | |||||||
| 8 | Plug | Carbon Steel | |||||||
| Outline and connecting measurement | |||||||||
| DN | L | D | C | D1 | b | f | n-d | ||
| PN10 | PN16 | PN10 | PN16 | ||||||
| 50 | 200 | 165 | 125 | 99 | 19 | 3 | 4-19 | ||
| 65 | 240 | 185 | 145 | 118 | 19 | 3 | 4-19 | ||
| 80 | 260 | 200 | 160 | 132 | 19 | 3 | 8-19 | ||
| 100 | 300 | 220 | 180 | 156 | 19 | 3 | 8-19 | ||
| 125 | 350 | 250 | 180 | 184 | 19 | 3 | 8-19 | ||
| 150 | 400 | 285 | 210 | 211 | 19 | 3 | 8-23 | ||
| 200 | 500 | 340 | 240 | 266 | 20 | 3 | 8-23 | 12-23 | |
| 250 | 600 | 395 | 295 | 319 | 22 | 3 | 12-23 | 12-28 | |
| 300 | 700 | 445 | 350 | 355 | 370 | 24.5 | 4 | 12-23 | 12-28 |
| 350 | 800 | 520 | 460 | 470 | 429 | 26.5 | 4 | 16-23 | 16-28 |
| 400 | 900 | 580 | 515 | 525 | 480 | 28 | 4 | 16-28 | 16-31 |
| 500 | 1100 | 715 | 620 | 650 | 609 | 31.5 | 4 | 20-28 | 20-34 |
| 600 | 1300 | 840 | 725 | 770 | 720 | 36 | 4 | 20-31 | 20-37 |
