Home >Products Catalog > Large format uv ceramic printer, high resolution ceramic tile printing machine for sale in China

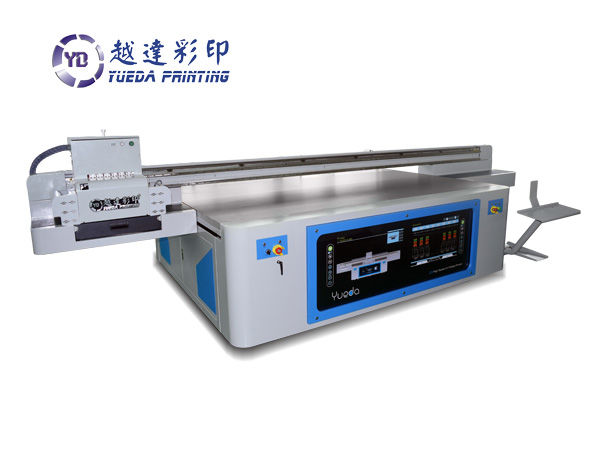

Large format uv ceramic printer, high resolution ceramic tile printing machine for sale in China

FOB Price:	47,000.00 - 49,000.00 USD/Set
Supply Ability:	200 Set/Sets per Week
Shipping:	By sea
Payment Terms:	T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Wooden case

Quick Details

Type: Digital Printer
After-sales Service Provided: Overseas third-party support available
Certification: CE
Weight: 1300KG
Dimensions(L*W*H): 4700*2000*1300mm
Gross Power: 3500w
Voltage: AC220V;50/60HZ
Color & Page: Multicolor
Automatic Grade: Automatic
Usage: All flat materials can be printed
Model Number: YD-2512-RD
Brand Name: Yueda
Plate Type: Flatbed Printer
Condition: New
Keywords: uv ceramic printer
Printhead: Ricoh Gen 5 head
Color: 4/2*4/8/2*8
Print Precision: 600*1200dpi
Whatsapp: +86 13925228590
Service: Best after-sales service
Printing Training: You can study at our factory,we also have the study video
Coating: Glass coating \ metal coating \ ceramic coating etc.
Max Print Height: 100mm can be customized

Specifications

Hot selling ceramic uv flatbed printer for sale

This is Industry uv printer withG5 heads,can print on any materials,such glass,

ceramic,leather,wood and so on,also can print varnish.

Pls tell your requirement,i will send information for you,thanks!!!

Product Description

YD2512-RD
Print Head	G5-7PL
Number of nozzles	4.5.6.7.8
Print resolution	600*1200dpi
Printer weight	1300KG
Print size
Max Printing Size	2500mm×1250mm
Printer size	1300× 2000 × 4700mm
Media Type	Rigid & flexible media(Glass, acrylic, wood, tile, metal plate, PVC board, corrugated board, plastic, etc.)
Print height	100mm
Machine description
Image File Firnat	Adobe Postscript Level 3,PDF, JPEG,TIFF,EPS,AI
Ink Type	Environment protection UV-curable inks (NO VOC)
Color System	C,M,Y,K,Lc,Lm(Optional)
Software outputs	Windows,Seeget,Onyx and so on

1. We use G5 print head, Hyper fine printing and high efficiency with 1200dpi;

2.LED UV lamp without preheat boot on the run, with long life, save time

and energy;

3. UV ink, environmental and no-odor release, instant curing, and not easily

fade;

4.Can use white ink, with self circulation and self shaking function, avoid

the white ink to be precipitate and stocking the print head;

5. The media can be 100mm,the print height can be customized.

Printer details

1.Adopting new 4-8 grey level G5 internal heating industrial printhead,

the print head life time about 2 years.

2.Car anti collision device,the car can automatically stop when crash

the media,so that protect the car and the nozzle not damage.

3.This part is line Control panel:

(1). Power.

(2). Terminal board

(3). Filter: It can prevent static interfere,so that can let the printer

achieve the absolute highest standards at the end.others not this part.

(4). Servo drive: the Servo was imported from Taiwan.

4.Automatic feeding device, save labour.

UV ink advantage
1.It is instantly dried by UV lamps which makes the images completely cured.
2.Print head is not easy to be clogged with our special technology
3.Environment-friendly.Characteristics: water-proof, anti-uv, heat-resistance.

Industrial type Print-head GEN5

--Fast speed, super-high precision

--Technical indicators meet customer demand in industry;

--7PL variable droplet technology, high accuracy printing;

--Full steel structure, long life and corrosion resistance;

--Imported environment friendly LED-UV curing systems;

--With automatic cleaning, head protection system;

--Intelligent ink alarm system;

--The lowest cost, super high returning

Application Areas:decoration industry, glass industry, sign industry, exhibition industry, rigid paper board packing industry, leather, textile printing industry,artware industry, furniture industry etc.

Application Material:rigid sheets, such as glass, metal, acrylic,

PVC board, MDF,and the flexible material, like film, leather, canvas,

wall paper, ceiling paper etc.
