Home >Products Catalog > Wrenches > Non Sparking Bung Wrench Drum Plug Opener By Copper Beryllium

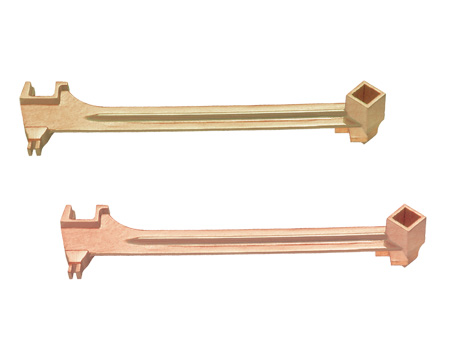

Non Sparking Bung Wrench Drum Plug Opener By Copper Beryllium

Supply Ability:	5,300 Piece/Pieces per Quarter
Shipping:	Within 15 Days
Payment Terms:	L/C, T/T, Western Union

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	Export Package

Quick Details

Size: 15 Inch
Material: Copper Beryllium Or Aluminum Bronze;
Type: Bung Wrench Drum Plug Opener
Model Number: 179

Specifications

Non Sparking Bung Wrench Drum Plug Opener By Copper Beryllium

Marerial: Copper Beryllium Or Aluminum Bronze;

Specs:

NO	L-mm	S1-mm	S2-mm	Copper Beryllium/Weight	Aluminum Bronze/Weight
179A-1002	300	38	52	830g	750g

HeBei BoTou Safety Tools Non-sparking, Non-magnetic Hand Tools are manufactured from special Aluminum-Bronze (Al-Br) or Copper-Beryllium (CuBe2) alloys for safe use in Ex zones where hazardous, flammable or combustible vapors, liquids, dusts or residues may be present.
Our line of non-sparking safety tools consists of hammers, flange wedges, striking wrenches, impact sockets, screwdrivers, shovels and other hand tools. They comply with ATEX Directives for Ex Zones 0, 1 and 2 (Flammable Gas, Mists or Vapors); Zones 20, 21 and 22 (Combustible Dusts); and M1 and M2 for mining. Each tool is laser engraved with the proper Ex Zone classifications, indicating the zones for which it can be used.
Aluminum Bronze and Copper Beryllium Non-sparking Safety Tools from HeBei BoTou Safety Tools are specifically designed to eliminate the risk of sparks at sites where explosive atmospheres may be present.

Appropriate applications include oil drilling platforms, petrochemical plants,
oil refineries, natural gas installations, ammunition plants, varnish factories, sugar refineries, grain silos, mining and other industries where non-sparking safety tools are required. The non-magnetic feature of these alloys also makes them ideal for working on special machinery with powerful magnets such as MRI machines, military de-mining and explosives.

HeBei BoTou Safety Tools are drop forged for the highest quality in hand tools. These corrosion-resistant tools are suitable for use in shipyards, laboratories, and paper and pulp mills, as well as in the pharmaceutical, food product manufacturing and wine industries.

Non-sparking, non-magnetic hand tools are made of Aluminum-Bronze (Al-Br) or Copper-Beryllium (CuBe2). These alloys are specifically designed to eliminate the risk of sparks at sites where explosive atmospheres may be present. Explosive atmospheres are classified by Ex Zones where hazardous, flammable or combustible vapors, liquids, dusts or residues may be present.

Non-sparking hand tools, also known as spark resistant tools, comply with ATEX directives for Ex Zones 0, 1 and 2 (Flammable Gas, Mists or Vapors); Zones 20, 21 and 22 (Combustible Dusts); and M1 and M2 for mining. Our non-sparking hand tools are etched with the Ex Zone classification into them, thereby indicating in which zones the tool can be used. See chart below for Ex Zone definitions.

How to Choose the Correct Alloy for Your Application
	Aluminum-Bronze (Al-Br) Alloy	Copper-Beryllium (CuBe2) Alloy
Zone Compatibility	Help fulfill the demand in the ATEX Directive 94/9/EC for work in Zones 1 and 2 (Gas, Mists or Vapors), plus Zones 21 and 22 (Dusts).	Help fulfill the demand in the ATEX Directive 94/9/EC for work in Zones 0, 1 and 2 (Gas, Mists or Vapors); Zones 20, 21 and 22 (Dusts); and M1 and M2 for mining.
Hardness	23-35 HRC	33-45 HRC
Durability	Not as durable as Cu-Be.	Very durable due to high hardness and tensile strength.
Magnetic Properties	Low magnetism due to minimal ferrous components. Appropriate for non-critical non-magnetic applications.	Non-ferrous components; safer for applications demanding non-magnetic properties.
Composition	Al: 9.5-11% Fe: 3.5-5.5% Ni: 3.5-5.5% Other: 0.5% max Cu: Balance	Be: 1.8-2.1% Co + Ni: 0.6% max Other: 0.5% max Cu: Balance

Ex Zone Definitions
Gas, Mists or Vapors	Dusts
? Zone 0 – An atmosphere where a mixture of air and flammable substances in the form of gas, vapor or mist is present frequently, continuously or for long periods.	? Zone 20 – An atmosphere where a cloud of combustible dust in the air is present frequently, continuously or for long periods.
? Zone 1 – An atmosphere where a mixture of air and flammable substances in the form of gas, vapor or mist is likely to occur in normal operation occasionally.	? Zone 21 – An atmosphere where a cloud of combustible dust in the air is likely to occur in normal operation occasionally.
? Zone 2 – An atmosphere where a mixture of air and flammable substances in the form of gas, vapor or mist is not likely to occur in normal operation but, if it does occur, will persist for only a short period.	? Zone 22 – An atmosphere where a cloud of combustible dust in the air is not likely to occur in normal operation but, if it does occur, will persist for only a short period.
