Ruian Junda Machinery Co., Ltd.
China Manufacturer with main products: Thermoforming Machine, Vacuum Forming Machine, Plastic Cup Making Machine, Plastic Lids Making Machine, Hydraulic Punch and Cutting Machine,... |

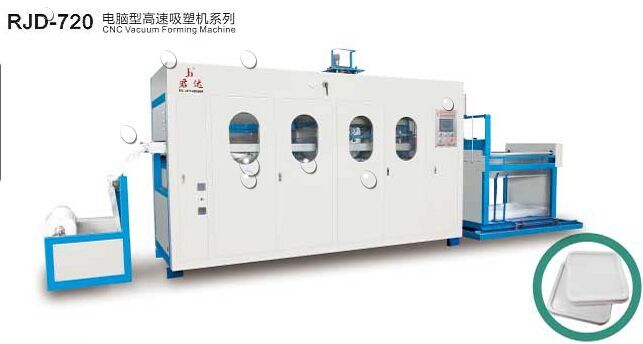

vacuum forming Machine
| FOB Price: | 23,000.00 - 25,000.00 USD/Set |
|---|---|
| Supply Ability: | 1 Set/Sets per Month |
| Shipping: | Delivery time: 30 days after deposit reached. |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
Quick Details
- Processing Type: Plastic Thermoforming Machine
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 12 months limited warranty. Starting from the date of machine arrival
- Certification: CE
- Weight: 2500KG
- Dimension(L*W*H): 3.8*1.3*2.5(m)
- Power(W): 22.5Kw
- Voltage: 380V
- Model Number: RJD-670/1000/1400
- Brand Name: Junda
- Product Type: Fast Food Box
- Condition: New
Specifications
Main Features
1.High-speed consecutive moulding.
The technical process is: sheet feeding-heating-moulding-cooling-demoulding-cutting-sorting.
2.Particular block temperature control: Adopt special far infrared electro-heat equipment with dense plane,
so the heating temperature is even with less energy consumption.
3.Equipped with air cooling and circulation water cooling classis.
make the forming speed faster and guarantee the forming quality.
4.With enclosed type heating for electrothermal furnace, the heating is even with less energy loss,
besides, you may use manual switch to control the movement of electrothermal furnace,
so it is helpful for controlling the product quality in the production process.
5. Bl-line sharp chain transformation is the guarantee of high speed running stably.
6.Specially equipped with secondary vacuum and moulding as well as the electric adjustment function,
when process high precision product, the forming is easier with high quality.
Main techonlogy parameters:*
|
Model |
RJD-720 |
RJD-610 |
RJD-620 |
|
Overall forming dimension |
(L) 780-1200MM |
(L) 780-1130MM |
(L) 500-750MM |
|
(W)600-720MM |
(W)480-610MM |
(W)480-620MM |
|
|
(H) 0-180MM |
(H) 0-180MM |
(H) 0-180MM |
|
|
Working speed |
3-8cycle/min |
2.5-7.5cycle/min |
2-7cycle/min |
|
Vacuum pump capacity |
XD-100 |
XD-100 |
XD-75 |
|
Air pressure |
0.8mpa |
0.8mpa |
0.8mpa |
|
Power supply |
380V(50HZ) |
380V(50HZ) |
380V(50HZ) |
|
Max power consumption |
35KW |
30KW |
22Kw |
|
Process sheet Thickness |
0.1-1.2MM |
0.1-1.2MM |
0.1-1.2MM |
|
Raw material |
PP PS PET PVC ABS |
PP PS PET PVC ABS |
PP PS PET PVC ABS |
|
Machine size |
6.9*1.5*2.5M |
6.6*1.5*2.5M |
6.2*1.5*2.4M |
|
Machine weight |
2500KG |
2000KG |
1800KG |
