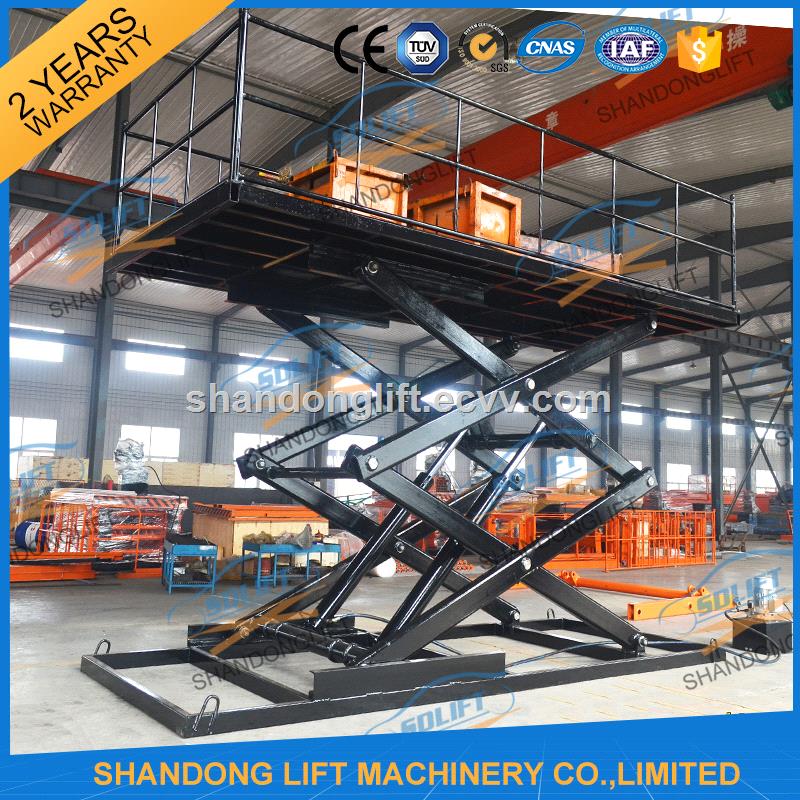

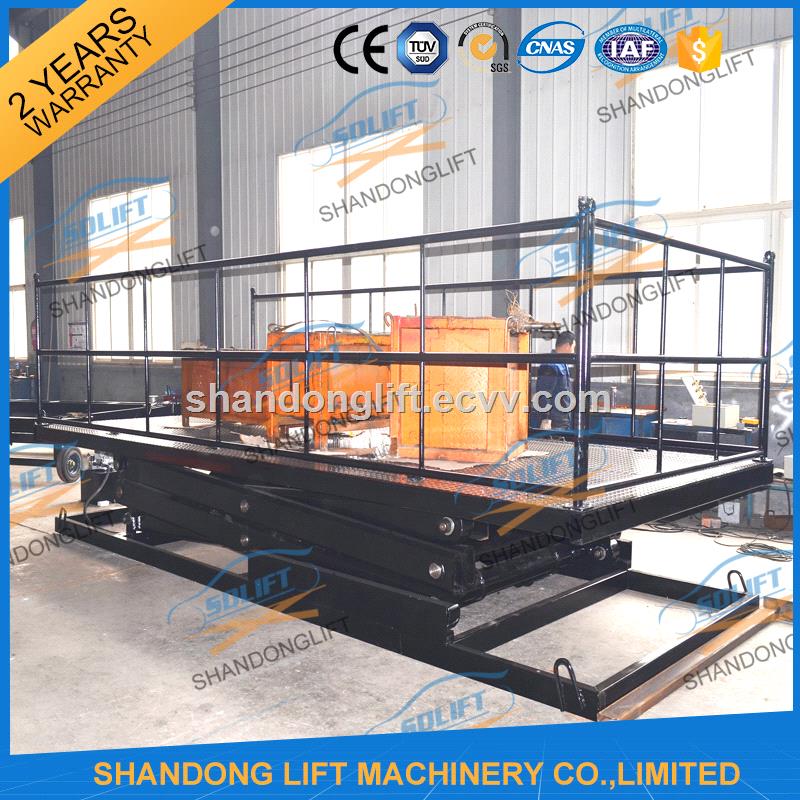

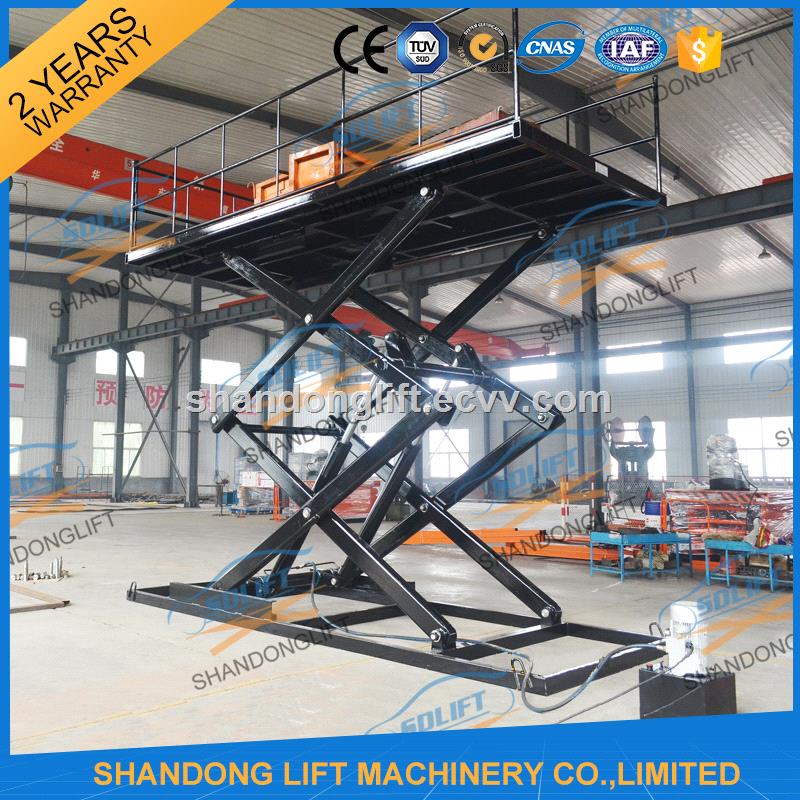

Hydraulic scissor car lift / auto elevator / car parking lift
Application:
| -the Scissor Car Lift can be used to lift car with different levels, suitable for car moving between stairs, from basement to first floor, to second floor, or to third floor. |
| - Operation is easy. There are 2 sets control system installed on the Scissor Car Lift, 1 control box below, and 1 hand controller on safety rail that can be operated on work platform. |
Configuration:
1) Platform Material: rectangular tube + checkered iron
2) Scissor material: high strength Manganese Steel.
3) Hydraulic system: 380V/4.0Kw
4) High Precision Hydraulic Cylinder
5) Piston Rod: hard chromium plating surface.
6) High-pressure oil pump
7) Hydraulic oil: summer 46#, winter 32#
8) Controller: 1 control box below, 1 control panel above platform
the models we supplied for clients:
MODEL |
LOAD CAPACITY |
PLATFORM SIZE |
LIFT HEIGHT |
PIT DEPTH |
POWER |
SJG2.5-3 |
2.5T |
5.2m x 2.6m |
3m |
700mm |
220V, 240V, 380V or 400V |
SJG2-6.5 |
2T |
5.2m x 2.8m |
6.5m |
750mm |
220V, 240V, 380V or 400V |
SJG2.5-3.5 |
2.5T |
5.2m x 2.6m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG2.5-5 |
2.5T |
5.6m x 3m |
5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-2.5 |
3T |
5m x 2.3m |
2.5m |
750mm |
220V, 240V, 380V or 400V |
SJG3-3 |
3T |
5.2m x 2.6m |
3m |
800mm |
220V, 240V, 380V or 400V |
SJG3-3.5 |
3T |
5.6m x 2.7m |
3.5m |
800mm |
220V, 240V, 380V or 400V |
SJG5-10 |
5T |
4.5m x 2.5m |
10m |
1150mm |
220V, 240V, 380V or 400V |
SJG8-2.5 |
8T |
6.5m x 4.5m |
2.5m |
850mm |
220V, 240V, 380V or 400V |
SJG12-3 |
12T |
5.5m x 2.8m |
3m |
950mm |
220V, 240V, 380V or 400V |
SJG15-4.5 |
15T |
8m x 2.2m |
4.5m |
1050mm |
220V, 240V, 380V or 400V |
SJG20-5 |
20T |
6m x 3m |
5m |
950mm |
220V, 240V, 380V or 400V |
the Scissor Car Lift car can be customized as your detailed size. | |||||
Safety:
1) Explosion-proof lock valve to avoid a sudden drop if emergency occurs
2) the safety guard rails to guarantee safety of the car above platform
3) the limit switch system helps the Car Lift for sale Hydraulic Car Scissor Lift to stop at accurate position
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the Car Lift for sale Hydraulic Car Scissor Lifts are passed 1.2 times loading test before leaving factory.
Packaging & Shipping:
the Certificates:
Our services:
1) the Scissor Car Lift can be done as your request
2) Shipment can be arranged from our port to your destination port.
3) Operation video can be sent to you if needed.
4) English manual for car lift installation, using and maintenance.
5) 2 years warranty for whole machine without man-made faults.
6) We will send you parts for free with non-human factor faults during warranty time.
7) Supply 24-hours technical assistance by email, telephone or skype.
8) Engineers are available to your country if necessary.
