Shandong Lift Machinery Co., Ltd.
China Manufacturer with main products: Scissor Lift, Hydraulic Scissor Lift Table, Scissor Car Lift, Mobile Work Platform, Cargo Lift, Wheelchair Lift, Car Parking Lift, Loading... |
Home
>Products Catalog > Wheelchair Lifts & Disabled Lift > Outdoor Hydraulic Wheelchair Lift Table with CE
Outdoor Hydraulic Wheelchair Lift Table with CE
| FOB Price: | 3,000.00 - 4,800.00 USD/Unit |
|---|---|
| Supply Ability: | 5,000 Unit(s) per Year |
| Shipping: | FOB Qingdao |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | solid iron case or wooden box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 24 Months
- Certification: CE, TUV, SGS
- Weight: 750kg
- Overall Dimensions: 1300*1100*4100mm
- Table Size: 1200mm*1000mm
- Max. Lifting Height: 3000mm
- Min. Lifting Height: 60mm
- Rated Loading Capacity: 250kg
- Power: 220v or as client requests
- Lift Drive / Actuation: Hydraulic
- Lift Mechanism: Lift Chain
- Model Number: SJG0.25-3
- Brand Name: SDLIFT
- Lift Mechanism: Lift Chain
- Rated Loading Capacity: 250kgs
- Certification: CE
- control: Calling box and remote controlle
- Lift Drive / Actuation: Hydraulic
- Min. Lifting Height: 60mm
- Power: 1.5kw
- lift height: 3000mm
Specifications
Outdoor hydraulic wheelchair lift table with CE
Application:
the wheelchair lift can be used to lift wheelchair with different levels, suitable for wheelchair moving between stairs, from first floor to second floor, or to third floor.
Customized product can be done as your request:
Lift height: 1m - 12m
Load capacity: 250kg - 500kg
Material: sTainless steel or aluminum alloy with Powder coating
If you need any more information, tell us freely.
Technical Parameters:
Specification: | |
Model |
SJG0.25-3 |
Load capacity |
250kg |
Max. Platform Height |
3000mm |
Platform size |
1200mm(L)* 1000mm(W) |
Dimension |
1450mm(L)*1250mm(W)*4100mm(H) |
Min Platform height |
60mm |
in and out |
180°in and out |
Self weight |
700kg |
Material |
Stainless steel or aluminum alloy with Powder coating |
Power Input |
220V/50HZ/1PH/1.5KW |
Convenient operation design: | |
Drive System |
Hydraulic |
Control Mode |
Inching Switch |
Drive Control |
Self-resetting system |
Calling device |
Calling box (Located at ground and upstairs), remote controller (optional) |
Column switch |
Two column switches, one is on the ground floor, one on the first floor |
Working temperature |
from -10°~60°C |
Overload |
Protection over current relay |
Automatic ramp |
75°ramp Range |
Working Condition |
both indoors and outdoors |
Installation |
Non-pit installation, directly fixed to concrete floor |
Safety Device: | |
Safety Interlock: |
Lock the platform when it is out of control |
Emergency Stop |
the lift can be stopped immediately in case of any emergency |
Emergency Lowering |
the platform can be lowered by manual down button in case of power failure |
Safety Sensor |
the lift will be stopped immediately if the safety edge meets obstacles when going down. |
Auto-flap ramp |
Turn up to max 75°and prevent the wheelchair outside |
Our service:
1) We can design the customerized wheelchair lift as per your requirement.
2) the wheelchair lift will be recommended to you once we got your requirement.
3) Shipment can be arranged from our port to your destination port.
4) Operation video can be sent to you if needed.
5) User-friendly English manual for machine installation using and maintenance.
6) 2 year warranty for whole machine without man-made faults.
7) We will send you parts for free if there are any non-human factors faults during warranty time.
8) Supply 24-hours technical assistance by email, telephone or other communication online.

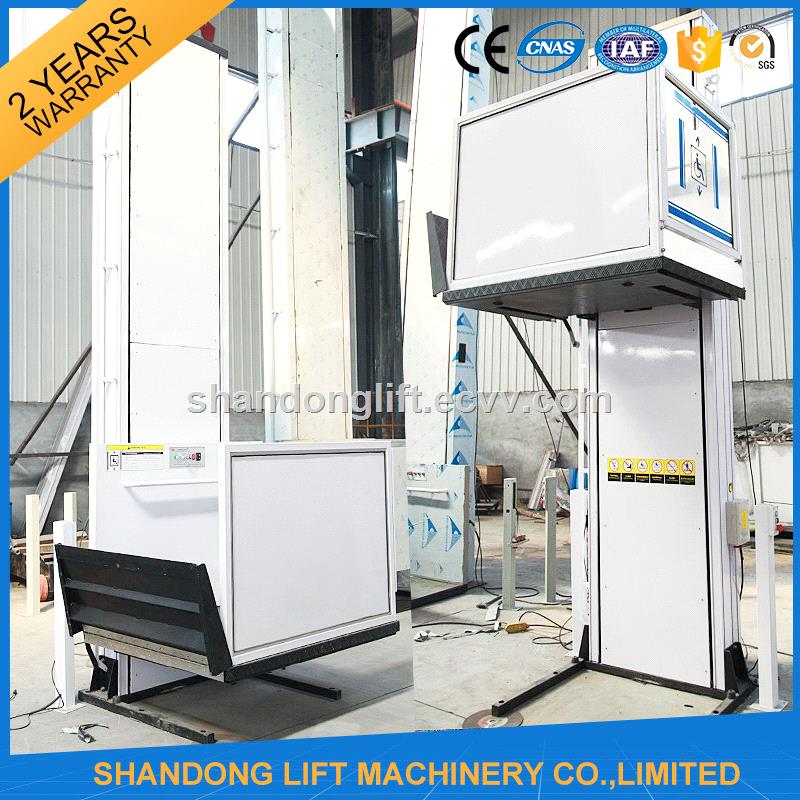

Detailed views:
the workshops: ( welcome to visit our factory )
