Henan Tianfeng Roll Forming Machinary Co., Ltd.
China Manufacturer with main products: Roll Forming Line, Roll Forming Machine, Panel Forming Machine, Steel Panel Forming Machine, Aluminum Panel Forming Machine, Purlin Forming... |

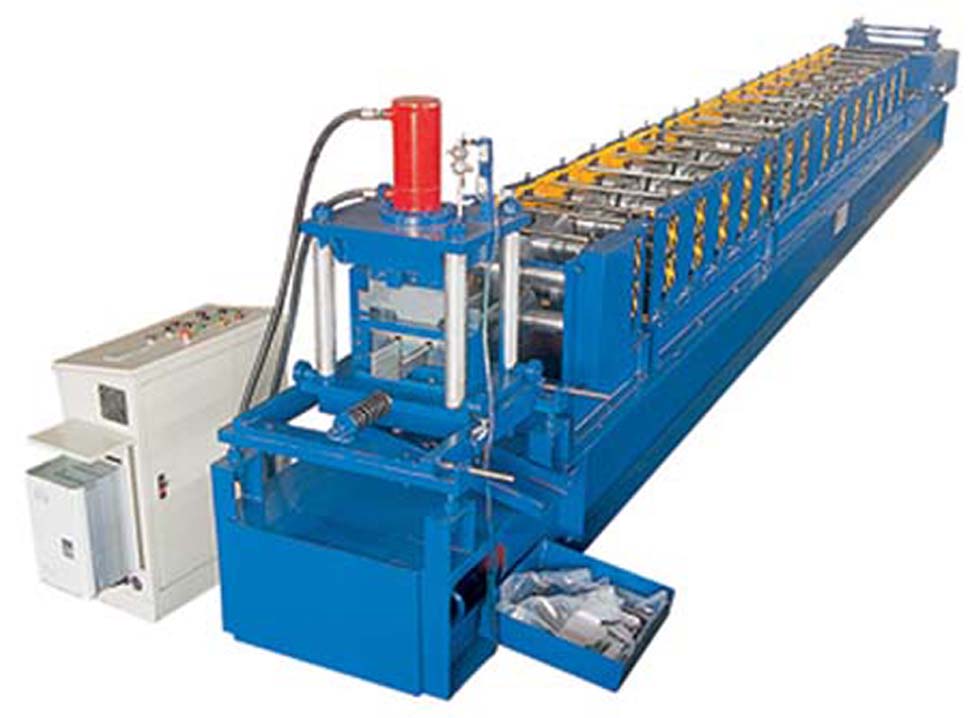

Long Life Span Bus Bar Housing Roll Forming Line
| FOB Price: | 10,000.00 - 20,000.00 USD/Set |
|---|---|
| Supply Ability: | 50 Set/Sets per Month |
| Shipping: | 25 days after payment |
| Payment Terms: | L/C, T/T, Western Union |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Main Machine Is Nude,Electrical Parts packed by Wooden Box |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Model Number: TF-HR
- Brand Name: Tianfeng
- Condition:: New
- Voltage:: 380v 50hz or at your requirements
- Certification:: CE,ISO,SGS
- Dimension(L*W*H):: 7m*1.2m*1.3m
- Warranty:: whole life
- Weight:: 3500-4500kg
- Power(W):: 7.5+7.5
- Tile Type:: Steel
- Production Capacity:: 8-15m./mn
- life Time: 15 years
Specifications
Features of this producing line:
lower cost
high efficiency
reliable working
low energy consumption
Technical pararmeter of product line:
Applied plank stuff:color amor plate
Applied slab thickness:1.0-1.5mm
Charge in width:1000mm-1250mm
Line speed:0.9m/min
Roll diameter:95mm
Dimensions:10m*1.8m*1.5m
Weight:5t
Power:15+5.5kw
Process flow:
decoiling-loading-molding-cutting-off-discharging
Processing technique and deployment:
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Counter
Optional equipment:
·Manual uncoiler frame in different tons
·Hydraulic automatic uncoiler
Working space and workman for the equipment:
1. Ground-level land
2. ≥5T overhead travelling crane
3. Space for storing the material
4. Space for laying the machine
5. Road for vehicle moving
6. Workman: 2, operator and porter
Thanks for your patience, looking forward to your reply!
