Qingdao Yankang Plastic Machinery Co., Ltd.
China Manufacturer with main products: Blow Molding Machine |

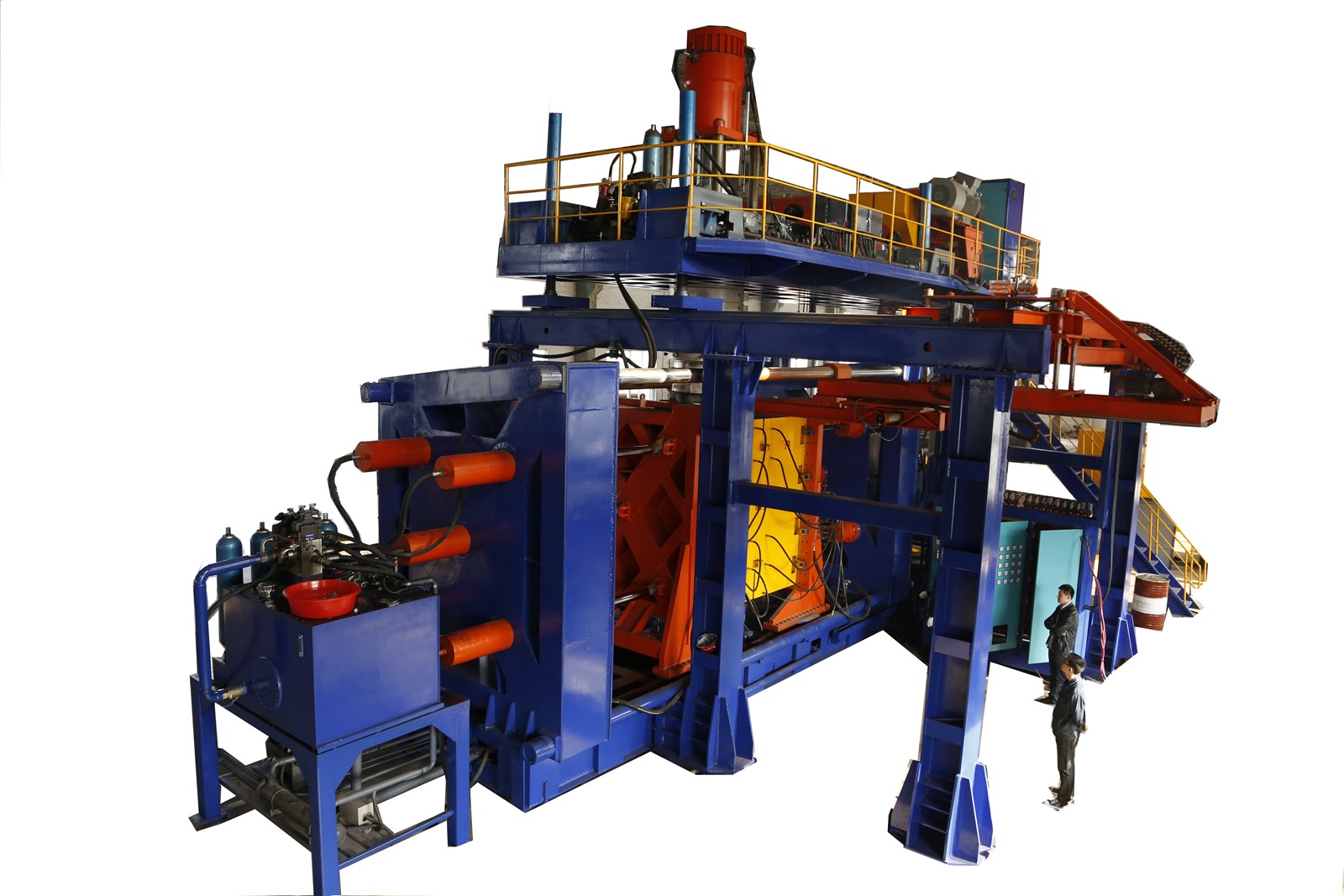

YK5000L-3 THREE EXTRUDERS, THREE LAYERS
| FOB Price: | 700,000.00 - 800,000.00 USD/Set |
|---|---|
| Supply Ability: | 100 Set/Sets per Year |
| Shipping: | QINGDAO PORT, CHINA |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Shandong in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: 1 year
- Certification: SGS
- Weight: 95ton
- Dimension(L*W*H): 15mx13mx8.5
- Power(W): 580KW
- Voltage: 220
- Model Number: YK5000-3
- Brand Name: YANKANG
- Automatic: Yes
- Blow Moulding Type: Extrusion Blow Moulding
- Application: WATER TANKS
- Condition: New
Specifications
1. Style Number: YK5000-3 blow molding machine.
Three extruders, three layers.
2. Product range:1500L—5000 L
3. Material process: HDPE
4. Output: 5 PC/H for 5000 L water storage tank with 75-90 kg.
5. Machine and Molds rate:
1. Payment Terms: FOB QINGDAO PORT,CHINA
30% deposit against the contract by T/T should be paid before the order;
70% balance should be paid off by T/T after inspection before delivery;
1. CONFIGURATION
|
|
MOOG |
JAPAN |
|
PLC |
SEIMENS |
GERMANY |
|
|
|
GERMANY |
|
SERVO VALVE & SERVO TRANSDUCER |
MIRAN |
ITALY |
|
INVERTER |
SEIMENS |
GERMANY |
|
HYDRAULIC OIL SEAL |
DZ |
TAIWAN |
|
INTERMEDIATE RELAY |
OMRON |
JAPAN |
|
PNEUMATIC VALVE |
AIRTECH |
TAIWAN |
|
HYDRAULIC PUMP & VALVE |
YUKEN |
JAPAN |
|
PNEUMATIC SWITCH & CONTACTOR |
SEIMENS |
GERMANY |
|
HYDRAULIC MOTOR & SCREW MOTOR |
SEIMENS |
GERMANY |
|
REDUCER |
GUOMAO |
CHINA |
9. AUXILIARY MACHINERY
|
|
CAPACITY |
|
SCRAP GRINDER |
25 HP |
|
AIR COMPRESSOR |
30 HP |
|
AIR TANK RECEIVER |
8 CBM |
|
COOLING TOWER |
200 TON |
|
MIXER |
300 KG |
10. OUTPUT FOR 5000 L BLOW MOLDING MACHINE:
|
|
Output |
Unit |
Weight |
Unit |
|
1500 L Mould |
9 |
PC/H |
26-32 |
KG |
|
2000 L Mould |
8 |
PC/H |
30-38 |
KG |
|
2500 L Mould |
7 |
PC/H |
38-45 |
KG |
|
3000 L Mould |
6 |
PC/H |
45-50 |
KG |
|
3500 L Mould |
6 |
PC/H |
50-55 |
KG |
|
4000 L Mould |
5 |
PC/H |
60-65 |
KG |
|
4500 L Mould |
5 |
PC/H |
65-75 |
KG |
|
5000 L Mould |
5 |
PC/H |
75-90 |
KG |
DELIVERY TIME
6 months after the down payment;
TRAINNING
The Buyer could dispatch their operators to the Seller's factory for training, including machine operation, maintenance & simple repairs;
Or against the requests of the Buyer, the Seller's technician could train the Buyer's operators in the Buyer's factory in the periods of installing & adjusting;
The training is free of charge;
INSTALLATION & ADJUSTMENT
The Seller could dispatch an engineer against the requests of the Buyer to install and adjust the machines for one week in the Buyer's factory.
The Buyer should make a reservation in advance before delivery of the machines;
The Buyer should pay for the engineer's food & board while installation in buyer's factory.
GUARANTEE
The guarantee time is one and half yearafter the machines normally works in the Buyer's factory, if only the problem is cause due to quality control or any reason by the Seller. We will supply replaced parts free of charge and our engineers will guide you how to solve the problems.
Any problem caused due to irregular operation or incorrect maintenance by the Buyer won't be listed in guarantee coverage.
