Shandong Pesada Machinery & Equipment Co., Ltd.
China Manufacturer with main products: Crawler Crane, Pipelayers, Truck Crane, Forklift, Backhoe Loader, Wheel Loader, Galvanized Iron Sheet, Gypsum Board |

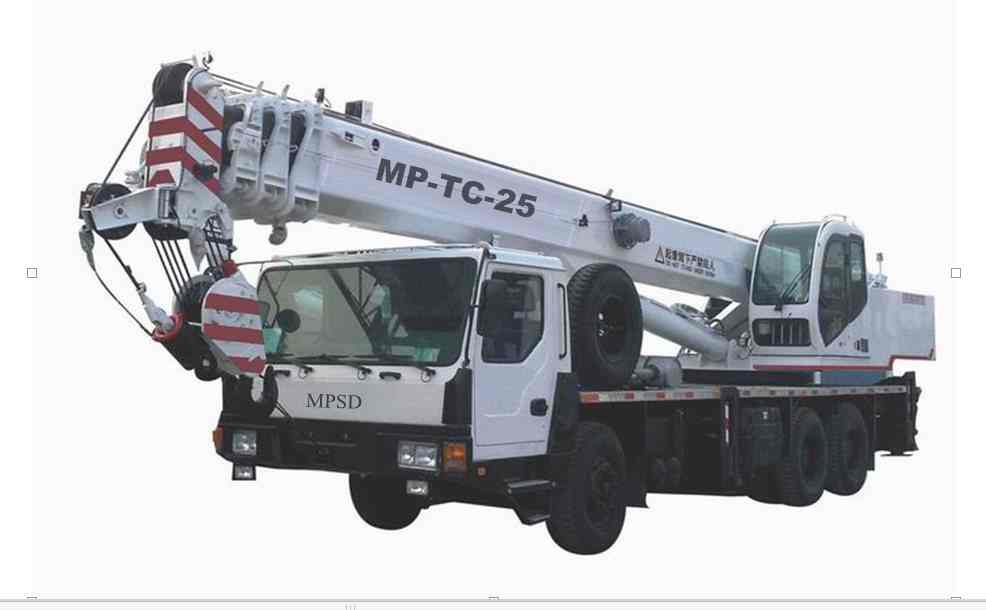

Truck crane with competetive
| FOB Price: | 119,000.00 - 125,000.00 USD/Unit |
|---|---|
| Supply Ability: | 5 Unit/Units per Month |
| Shipping: | 45 days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Shandong in China |
| Packaging Details: | The main machine nude, the attachments in wooden case |
Quick Details
- Feature: Truck Crane
- After-sales Service Provided: Engineers available to service machinery overseas
- Warranty: one year
- Model Number: TC-25
- Brand Name: MPSD
- Span: 5410*9150 mm
- Max. Lifting Height: 47m
- Max. Lifting Load: 3000 0kgs
- Rated Lifting Moment: 980 kn.m
- Rated Loading Capacity: 25000kgs
- Application: multifunctional movable crane
- Condition: New
- Overall Dimensions(L*W*H): 13430*2500*3550 mm
- Operating weight: 31420 kg
- Max. travel speed: 75 Km/h
- Max lifting height: 47 m
- Engine model: WEICHAI WP6.240
- Outrigger longitudinal span: 5410 mm
- Outrigger transversal span: 6150 mm
Specifications
TC-25
As a multi-purpose crane, with continuous improvement,it is widely used in the different fields : such, construction,projects etc, the high cost-effectiveness makes it accepted by the distributors and end users in the many countires in the worlds.
Dimensions(L*W*H): 13430*2500*3550 mm
Operating weight: 31420 kg
Max. lifting capacity: 25000 kg
Max. travel speed: 75 Km/h
Max.lifting height: 47 m
Engine model: WEICHAI WP6.240
Rated power: 190/2200 hp/(r/min)
Outrigger longitudinal span: 5410 mm
Outrigger transversal span: 6150 mm
Max. grade ability:30%
Min. turning radius:11 m
Min. ground clearance:270 mm
