Jiande Pro-Tech Automation Co., Ltd.
China Manufacturer with main products: Conveyor, Roller Conveyor, Belt Conveyor, Chain Conveyor, Roller, Conveyor Components, Storage Equipment |
flexible conveyor, flexible roller conveyor
| FOB Price: | 100.00 - 1,000.00 USD/Unit |
|---|---|
| Supply Ability: | 500 Unit/Units per Month |
| Shipping: | 7-20 days FOB Shanghai Port |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | cartons/pallets |
Quick Details
- Dimension(L*W*H): made-to-order
- Power(W): 100w
- Voltage: 220v
- Load Capacity: 50-300kg/m
- Structure: Roller Conveyor
- Material: Carbon steel
- Type: Gravity Conveyor
- Condition: New
- Width: 460, 610, 760mm
- Height: 700-1000
Specifications

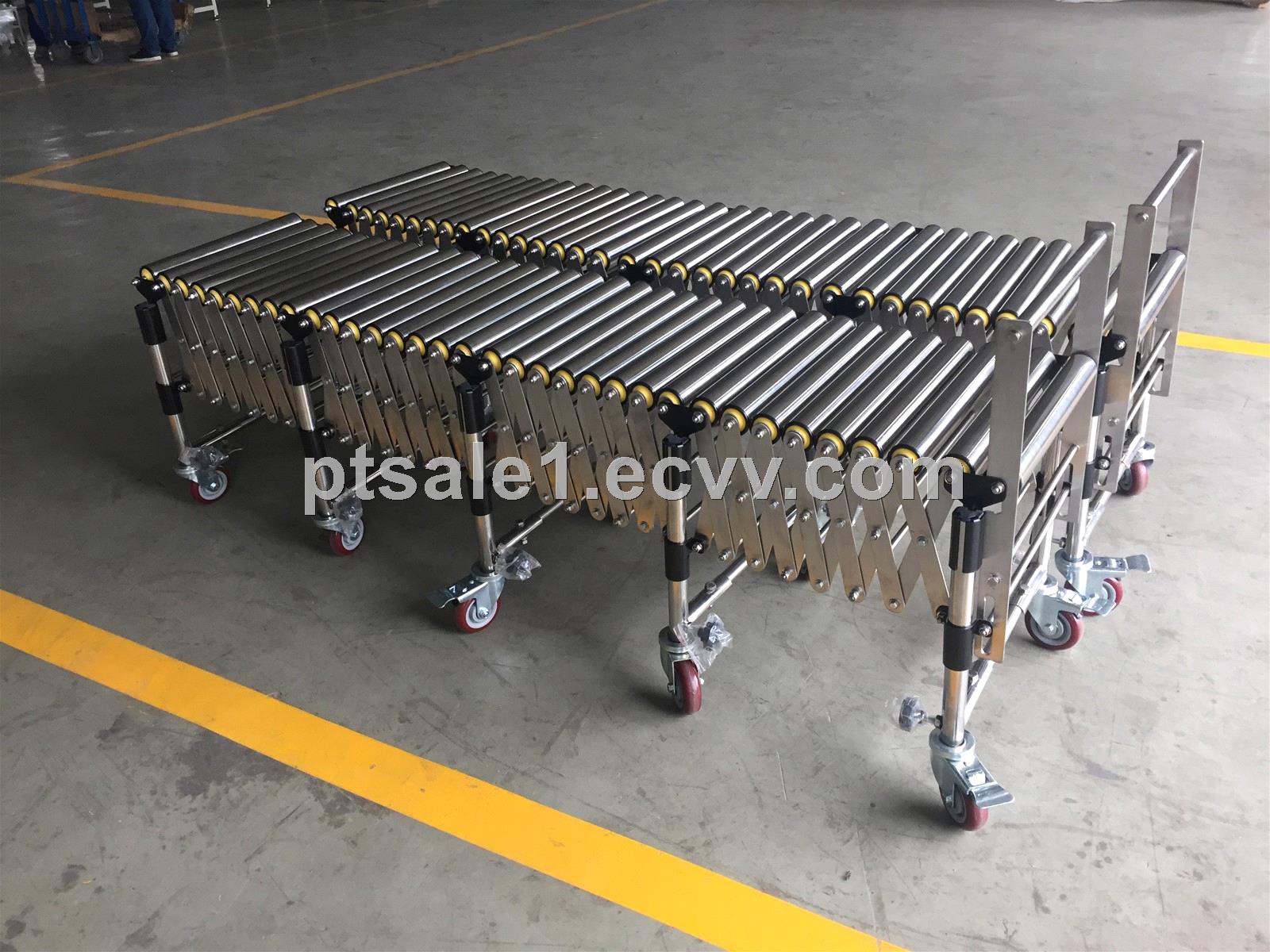

Flexible conveyo
ProTech Automation manufacture a range of expandable, flexible conveyors for loose loading and unloading applications, eliminating "dead space" created by pallets or roll-cages. They are designed and engineered to the highest standards to endure the rigorous demands of distribution centres and parcel handling hubs: they have reinforced ribbed, zinc plated steel side plates for additional strength, structural support across the width and heavy duty square tubing legs to ensure total stability.
Overview:
Standard conveyor widths of 18''/460mm, 24''/610mm and 30''/760mm.
Support legs are fully adjustable from 700mm to 1000mm. Other heights available upon request.
200-300Kg load capacity per linear metre based on a level working height. (gravity models)
Heavy duty castors – 4'' or 5'' swivel castors for maximum manoeuvrability. All castor wheels incorporate foot operated brakes.
Roller centres – 125mm as standard when the conveyor is fully extended.
Features:
Self Tracking - Cartons follow the twists and turns of the conveyor path without using engineered curves.
Adjustable Height - Simply turn the locking knob to raise or lower the conveyor bed height.
Square Tubing Legs - Heavy duty legs for longer service life
Reinforced, ribbed zinc plated steel side plates. Assembled with bolts and lock nuts without rivets.
Structural Steel Support - Channel steel spans the entire conveyor width for unequalled strength.
Casters with brakes - 4'' or 5" swivel casters roll easily. Caster brakes lock both wheel and swivel simultaneously while the conveyor is in use.
