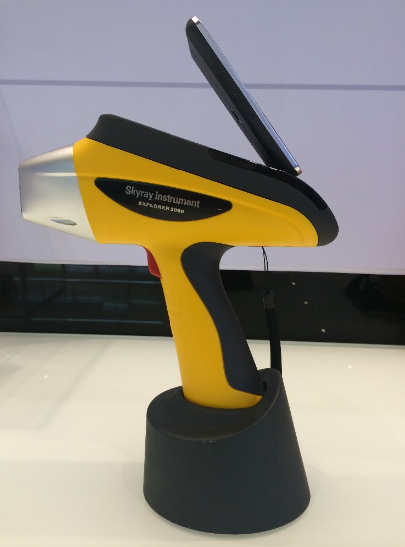

XRF spectrometer for Metal alloy analysis

Basic Info

EXPLORER 5000 can make accurate and nondestructive detection on a variety of precious metal alloys, low alloy steel, stainless steel, tool steel, chrome / molybdenum steel, nickel alloys, cobalt alloys, nickel / cobalt-resistant alloys, titanium, copper alloy, bronze, zinc alloy, tungsten alloy, etc. Knowing the materials composition and alloy kind in one second. Rapid detection on aluminum and magnesium alloy grades is possible and it allows to make reliable identification and confirmation of the material (PMI) and precisely control the materials quality

Technical specifications

Configurations

1)      Large area beryllium-window silicon drift detector (SDD)

2)      High efficiency x-ray tube

3)      DMCA: Digital multi-channel analyzer

4)      Power and control system

5)      Embedded PDA with built in GPS, Wi-Fi and Bluetooth.

6)      PDA version of dedicated XRF analytical software

7)      Laboratory test bench (optional)

8)      110V/220V universal adapter

9)      1 standard 9000mAh li-ion battery, 1 optional 27000mAh li-ion battery, 1× li-ion battery            charger

10)   Large-capacity TF storage card and adapter

11)   Anti-shock, anti-pressure and water-proof carrying case with lock

Technical Data

1.       Analysis method: EDXRF

2.       Detector: 25mm2 , 0.3mil,SDD, good energy resolution down to 125eV

3.       Excitation source: 50KV/200uA miniature Ag-target and end-window integrated X-ray tube

4.       Elemental range: all elements from Mg to U (No helium purge needed for light metals)

5.       Measurement time: 1-60 second

6.       Element range: Mg-U

7.       Sample type: solid, liquid, powder

8.       Detection limits: down to ppm level

9.       Concentration range: 1ppm~99.99%

10.   Calibration method: Ag

11.   CPU: 1G

12.   Memory: 1G, support external extension of maximum 32G, (standard configuration: 4G TF card)

13.   Data Safety: administrator mode with password protection, manage data easily

14.   Ambient humidity: ≤90%

15.   Ambient temperature: -20℃~+50℃

Specifications

1       Weight     1.9 Kg (with battery), 1.7Kg (without battery)

2       Dimensions      234mm(L) x 82mm(W) x 306mm(H)

3       Excitation Source     X-ray tube (Ag target), max. 50kV/200uA

4       Detector  SDD, 25 mm2, 0.3mil

5       OS    Windows CE operating system in embedded PDA

6       Software  Brand new FP and EC software

7       GPS, Wi-Fi and Bluetooth

8       Video       HD CMOS camera. 5 million pixel high resolution sample camera

9       Power Consumption         DC9V

         12W Max (working)

         8W Max (standby)

         2W Max (sleep)

10     Power Source  Rechargeable li-ion battery, 9000mAH, 12 hours running

110V/220V Wide-voltage universal adapter for AC power

11     Charger   DC charger: car charger

AC charger: 110/220V, 50/60HZ

12     Monitor   Brand new 5 inch LCD touch screen, the resolution is 1080*720.

13     Collimator and Filter      4.0/2.0 mm-diameter collimator, 6 kinds of filter materials, 12 switchable combinations can meet measurement requirements on various samples

14     Sample Chamber     Test bench

15     Data Transmission  Digital multi-channel technology, SPI data transmission, quick analysis, high count rate, waterproof mini USB, support connections to PC

16     Storage Card   Standard configuration: 4G

17     Safety Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards, and has no sample telemetry, automatic shut X light tube function. Standard radiation shields, thickened wall alloy test instrument.. When working, the maximum radiation <2.5μSv/hr.

18     Warnings The green light indicates the analyzer is on, while the blinking red light indicates the X-rays are on.

Application: Alloy elemental analyzer

Iron Alloy+ Titanium Alloy+ Nickel Alloy+ Cobalt Alloy+ Copper Alloy+ Zinc Alloy+ Tungsten Alloy+ Zirconium Alloy+ Tin Alloy+ Aluminum Alloy+ Precious Metal etc.

Accessories:

> Three- military- protection- box is compression, waterproof and shock absorption. Universal charger and car charger

>2 batteries

>Battery seat charge

>Memory card reader

>USB cable

>1 standard sample

>sample cup for powder and liquid sample. As below:

>Test membrane

>Genius Handheld stand – Stationary base (optional)

Necessary Technical Documents Enclosed:

>Operation Manual

>A List of the Parts

> Inspection Report

>CE certificate

>Data and software CD

>Warranty card
