Home  >Products Catalog > Other DC UPS > Mini ups 5V2A for Router WIFI Modem UPS

Mini ups 5V2A for Router WIFI Modem UPS SafeBuy Supplier Member

FOB Price: 7.90 - 8.90 USD/Piece
Supply Ability: 5,000 Piece/Pieces per Week
Shipping: FOB SHENZHEN PORT
Payment Terms: L/C, T/T, Western Union, MoneyGram, Other, Paypal
Update Time: 2018/3/7
In Stock
Export Markets: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin: Guangdong in China
Packaging Details: Carton Packing,OEM are welcome Size: 42 x 23 x 24 cm Qty: 44pcs/carton Weight: 11kg/carton

Quick Details

  • Application: Networking/security/telecommunication/Monitoring/Alarm/LED lampetc
  • Type: On-line
  • Output Voltage: 5v 2000mA
  • Weight: 153G
  • Protection: overchargedoverdischargedovercurrent,overvoltage,short circuit
  • Model Number: UPS502A
  • Brand Name: WGP
  • Capacity: 14.8wh 4000mAh
  • Size: 111*60*26mm
  • Battery Type: 18650 lithium battery
  • Input voltage: 5v 2000mA
  • Color: Black
  • Certificate: CE FCC RoHS PSE
  • Backup time: 2-8 hours
  • Material: ABS
  • Type: On-line
  • Output Voltage: 12V 2000mA

Specifications

Mini UPS 5V2A for Router WIFI Modem UPS

Features

· Mini 5V2A online UPS

· Over-charged, over-discharged

· Over-current and short-circuit protection

· Private mode in ups

· We have our own PCBA Dept

· 7 years experienced R&D team

· High Quality:CE,FCC,RoHs,PSE

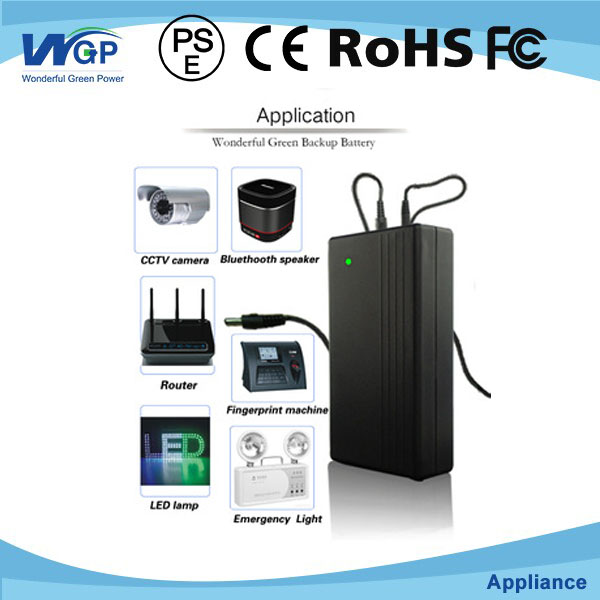

Application

Smart 5V mini ups widely use for fingerprint attendance machine, Fire safety system, security monitoring system, wireless camera, CCTV camera ,personal treatment system,Door security system, personal data assistant, emergency lighting, Alarm system, personal communication systems, radio, digital cameras, camcorders, video camera, Bluetooth devices, CD players, MD players, portable DVD, MP3 players, smart cards.



Miniups5V2AforRouterWIFIModemUPS



Specifications:



Item Technical Requirements Remark
Input voltage 5V ± 5%
Charging current 350mA + loading current
Charging transfer efficiency >=80%
No load voltage range 5V ± 5%
Output current range <=2000mA
Output voltage range 5.2V - 10%
Discharging transfer efficiency 85%
Over-disharged protection (battery) 2.5V Over-discharged release 3V
Over-charged protection (battery) 4.35V Over-charged release 4.10V



Installation Procedure:

1. Connect a suitable adapter to UPS

2. Before first use charge the UPS fully (taking care not to over-charge)

3. Then connect DC cable to UPS and to the equipment

4. Switch on UPS and the equipment(see below diagram)

5. The Green LED indicates that the UPS is fully charged

6.  The Green LED indicates that the UPS needs charging



Why Choose US?



Strength of Our Corp

FAQ:

Q:What's the type of ups?

A:It's a mini on-line ups.



Q:How is it work?
A:When have electricity,ups act as a bridge, city power provide electric to device,at the same time,ups is being charging.When no electricity,then ups back up the device.



Q:How to charge the UPS?
A:Battery will only charge with power switch in the ON position.



Q:What's the backup time?How can i decide which model is suitable to my device?
A:Different capacity will have different backup time,with following information,we can choose the most suitable ups to you :
1.What's the device you plan to use?
2.What's the working voltage and current?
3.What's your expected backup time?



Q:How can I maintain the device lifetime?
A:When stored, the ups will self-discharge at a rate that is greatly affected by the ambient temperature. It should therefore be fully charged before being put into storage and if it is to be stored for a long period, it should be recharged periodically to prevent it from losing its original capacity.
As a guide, the ups should not be stored for longer than the periods shown below without being recharged:
6 months at 20°C
3 months at 30°C
2 months at 35°C
If the ups was not used for long time, it is suggested to charge it once every 3~5months





Notice:More questions,please contact with me right now,we will choose the right model to you!
