Chage E&M Equipment Co., Ltd.
China Manufacturer with main products: Isolator Switch, Vacuum Circuit Breaker, Polymer Composite Insulator, Terminal Connector, Dropout Fuse Cutout, Outdoor Disconnect Switch,... |

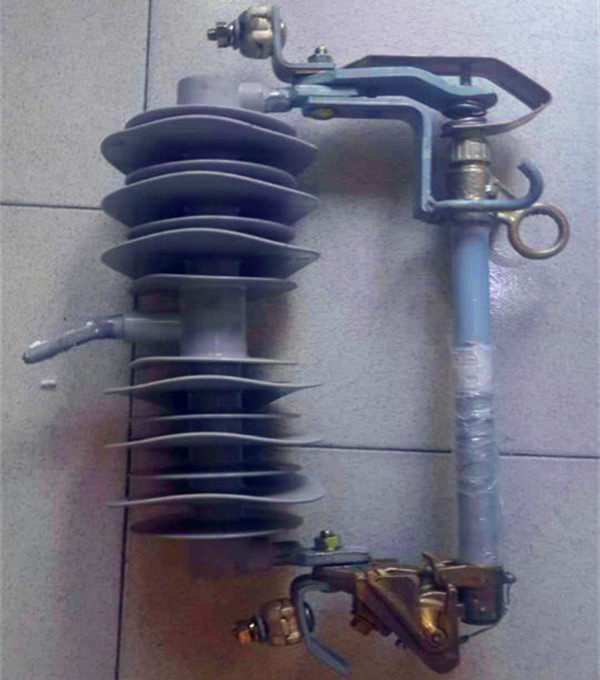

24KV Outdoor Polymer Drop-out Fuse Cutout
| FOB Price: | 20.00 - 30.00 USD/Piece |
|---|---|
| Supply Ability: | 30,000 Piece/Pieces per Month |
| Shipping: | FOB Ningbo 1-3weeks |
| Payment Terms: | L/C, T/T, Western Union |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | inner box, the in carton. |
Quick Details
- Safety Standards: IEC
- Breaking Capacity: High
- Usage: High Voltage
- Model Number: RW12
- Brand Name: Trageme
Specifications
Product Introduction:
Drop-out fuse cutout and load switching fuse cutout are outdoor high voltage protective device.To be connect incoming feeder of distribution transformer or distribution lines ,it mainly protects transformer or lines from short circuit and overload,and on/off loading current,Drop-out fuse cutout is composed of insulator supports and fuse tube,static contacts is fixed on two sides of insulator support and moving contact is installed on two ends of fuse tube is composed of inside arc extinguishing tube,outer phenolic compound paper tube or epoxy glass tube load switching fuse cutout provides enforced plastic auxiliary contacts and arc extinguishing enclosure for switching on/off loading current.
Main Technical Parameters:
| Model Type: | HRW-12 |
| Rated Voltage: | 24kV |
| Rated Current: | 100A |
| Breaking Current: | 10, 000A |
| Impulse Voltage: | 150kV |
| Power Frequency Withstand Voltage: | 65kV |
| Creepage Distance: | 540mm |
| Weight: | 4.5kg |
| Dimension: | 51*34*11.5mm |
