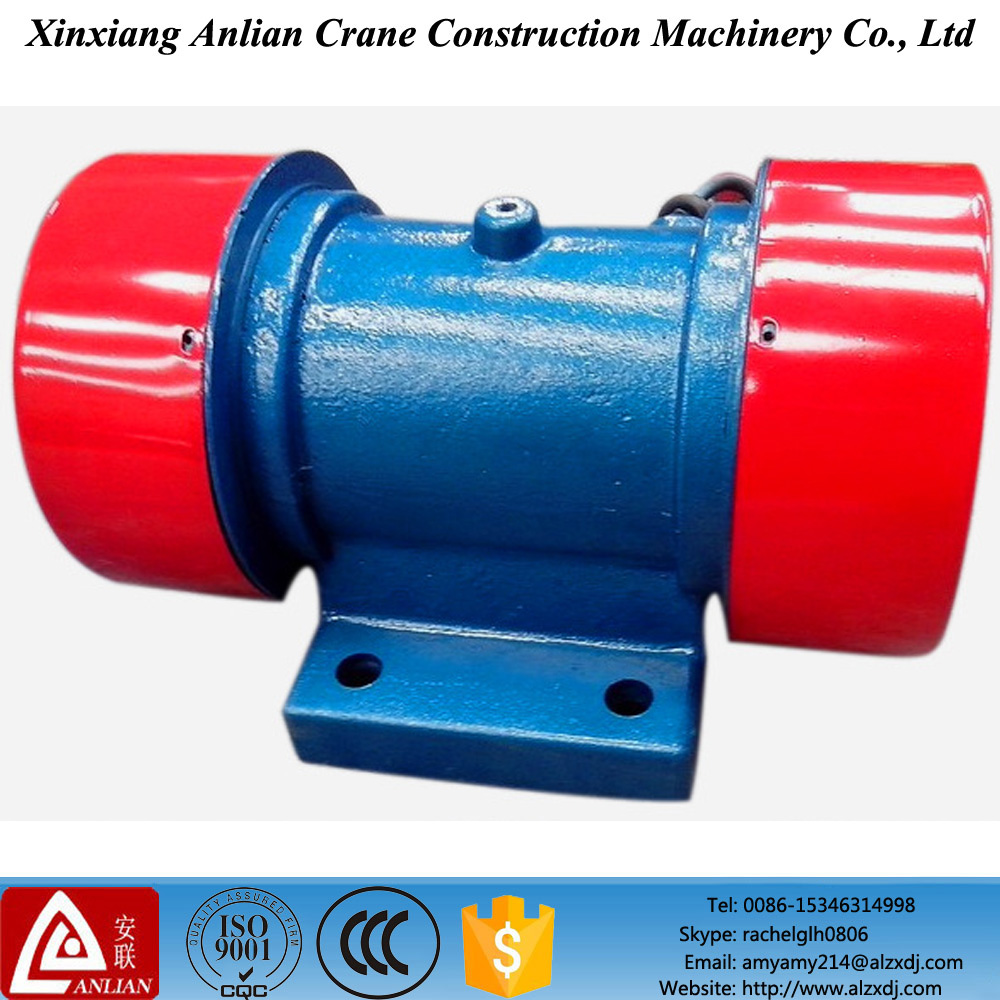

the Widely Used Electric JZO Vibration Motor
| Supply Ability: | 2,000 Set(s) per Month |
|---|---|
| Shipping: | qingdao,shanghai,tianjin |
| Payment Terms: | L/C, T/T, Western Union |
| Export Markets: | South America, Southeast Asia, Africa, Mid East, Eastern Asia |
|---|---|
| Place of Origin: | Henan in China |
| Packaging Details: | Conventional packaging is naked outfit with dustproof bags. Additions there are corrugated packaging |
Quick Details
- Voltage(V): 380/220v
- Type: Micro Motor
- Certification: CCC
- Usage: Electric Bicycle,vibration screen
- Brand Name: Anlian
- Efficiency: IE 3
- Protect Feature: Totally Enclosed
- Model Number: JZO-30-6
- AC Voltage: 208-230 / 240 V
- Certification: Other,CCC,ISO9001
- Phase: Three-phase
- Output Power: 2.2KW
- Frequency: 50/60HZ
- Color: as you wish
- pole: 4/6
- Max vibrating force(N): 30KN
- Rated speed: 1500/1000RPM
- Weight: 180kg
Specifications
the widely used electric JZO vibration motor Vibration force (KN) POWER (KW) Current (A) the vibration frequency (R/MIN) Weight (KG) 10 JZO-20-6
Product Description

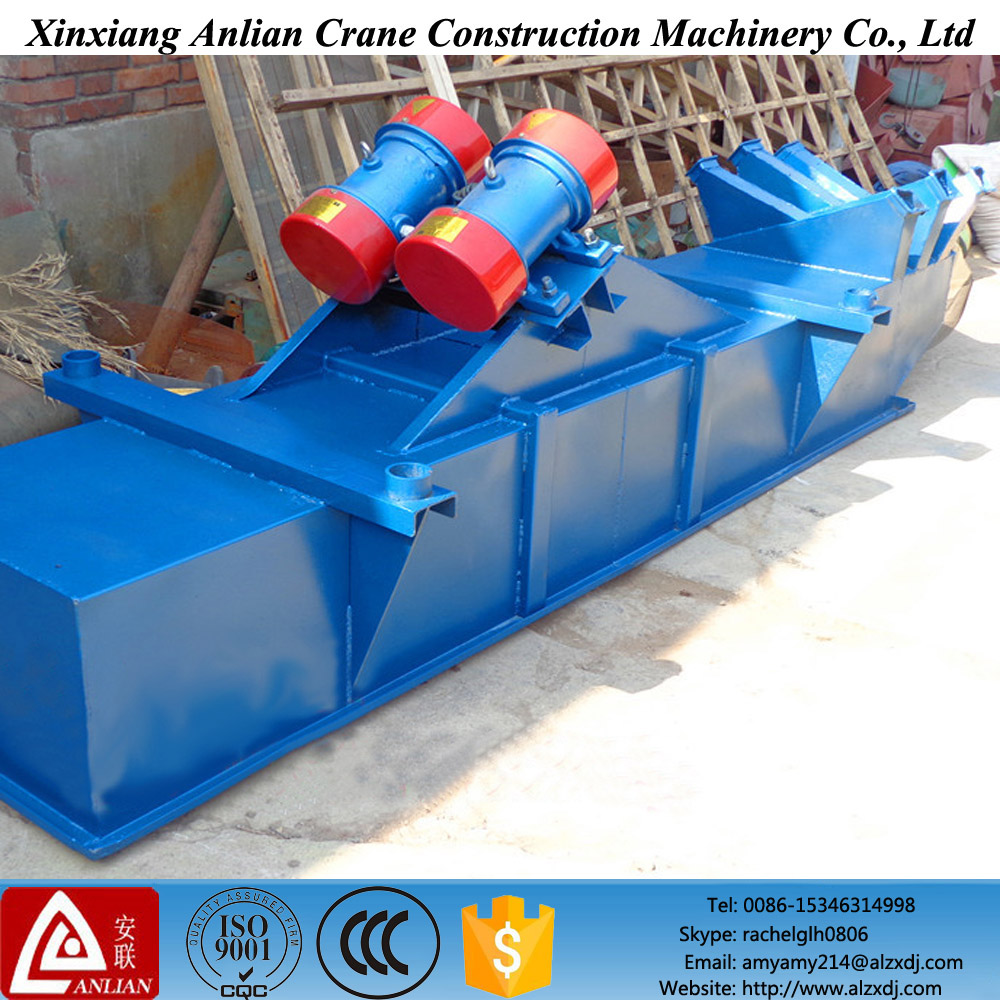

the vibration motor is combined with the power source and vibration source is one of the excitation source, the vibration motor is in the axial ends of the rotor are respectively arranged a group of eccentric block, the shaft and the eccentric block high-speed rotation of the centrifugal force generated by the exciting force. Vibration motor with high vibration force, low energy consumption, low noise, long life. the exciting force of the vibrating motor can be adjusted, easy to use, the type of JZO, YZU, YZO, YZS, YZD, tzdc and so on vibration motor is in general use type vibration motor. Vibration motor can applied to general mechanical vibration, such as: the vibratory crusher, vibrating screen machines, vibration packing machine, vibrating sand machine, vibration, vibration molding machine, piling machine, vibration hoist, vibration filling machine, bin vibrating arch breaking anti occlusion device and so on. Widely used in the construction of hydropower, thermal power, building, building materials, chemical, mining, coal, metallurgy, light industry and other industrial sectors.
Technical parameters
type
JZO-1.2-4
1.2
0.08
0.248
1500
15 JZO-2.5-4
2.5
0.1
0.32
25 JZO-5-4
5
0.2
0.6
40 JZO-8-4
8
0.4
1.24
53 JZO-16-4
16
0.75
2.3
98 JZO-32-4
32
1.5
4.74
170 JZO-50-4
50
2.2
6.96
228 JZO-75-4
75
3.7
11.4
313 JZO-100-4
100
5.5
17.4
340 JZO-5-6
5
0.4
1.24
1000
42 JZO-10-6
0.75
2.3
70 20
1.5
4.6
120 JZO-30-6
30
2.2
6.43
180 JZO-40-6
40
3
9.2
200 JZO-50-6
50
3.7
11.4
262 JZO-75-6
75
5.5
17.4
420 JZO-100-6
100
7.5
23.74
450 JZO-120-6
120
9
26
480
Our Services
1. Freely provide project designing, process designing, choosing suitable equipment for you.
2. Accompany you to complete the acceptance of the equipment,draft the construction scheme and detailed
Process, and complete process of export
3. 100% positive feedback
4. 12 Months warranty
5. Professional technicians provide installation, commissioning services
6. Technical advisory for any time
