HPT-33 Fuel tank submersible level transmitter

Shipping:	3-4 working days
Payment Terms:	L/C, T/T

Inquiry Now

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Guangdong in China
Packaging Details:	Standard export packing

Quick Details

Model Number: HPT-33
Brand Name: Huatian

Specifications

PROFESSIONAL PRESSURE ,LEVEL,TEMPERATURE TRANSMITTER SOLUTION PROVIDER

Instruction:

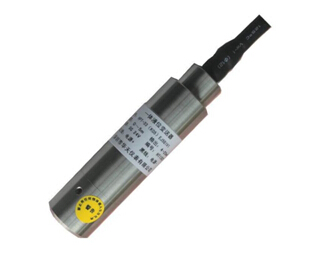

HPT-33 Submersible transmitter is the full stainless steel construction and full-sealed submersible intelligent level transmitter with high accuracy. It uses highly reliable and stable pressure sensor, intelligent processing circuit, precise digital temperature compensation and linearity correction techniques for production. The top steel cap could protect sensor diaphragm and let liquid media go through unobstructed.

The cable which has vented tube in connects with housing sealed, making sensor connecting to the atmosphere to make sure measurement precise.

Integrated construction and standard output signal could provide easy operation and good automatic control. With 2-wire working, compact size, light weight and easy installation and operation.

Features:

Wide measuring range :0～1～500m
High precision
Good stability:≤0.2%FS
Wide working temperature:-20～85℃
Good corrosion resistance
Gas guide cable transmission
Three heavy lightning anti-interference design
Anti condensation process

Applications:

Water:drinnking water system/ground water level measurement
Level measurement in container
Sewage: water treatment plants/waste water treatment
Water recycling
Fuel storage/ tank farm

Performance parameters

　　　　　

Range(m) 0~500 　　

Pressure type Gage pressure,absolute pressure

Output signal 4～20mA or others 　　

Nonlinearity(%FS) ≤0.1 ≤0.25 ≤0.5

Hysteresis (%FS) ≤0.1 ≤0.25 ≤0.5 　

Repeatability(%FS) ≤0.1 ≤0.25 ≤0.5

Zero drift(%FS/℃) ≤0.02 　　　

Full scale drift (%FS) ≤0.02

Stability(%FS/Year) ≤0.25 　　　

Working voltage(V) 12~36V DC(Standard: 24V)

Compensation temperature(℃) 0~60℃ 　　　

Working temperature(℃) -20~85℃

Overload capacity(%) 300 　　　

Life span more than 9 million times pressure cycle

Load resistance(Ω) R=(U-12.5)/002-r

Response tiem(ms) ≤1

Media Media compatible with 316L 　

Diaphragm material 316L stainless steel

Housing material 1Cr18Ni9Ti 　　

Protection grade IP68

Weight 120g 　　　
